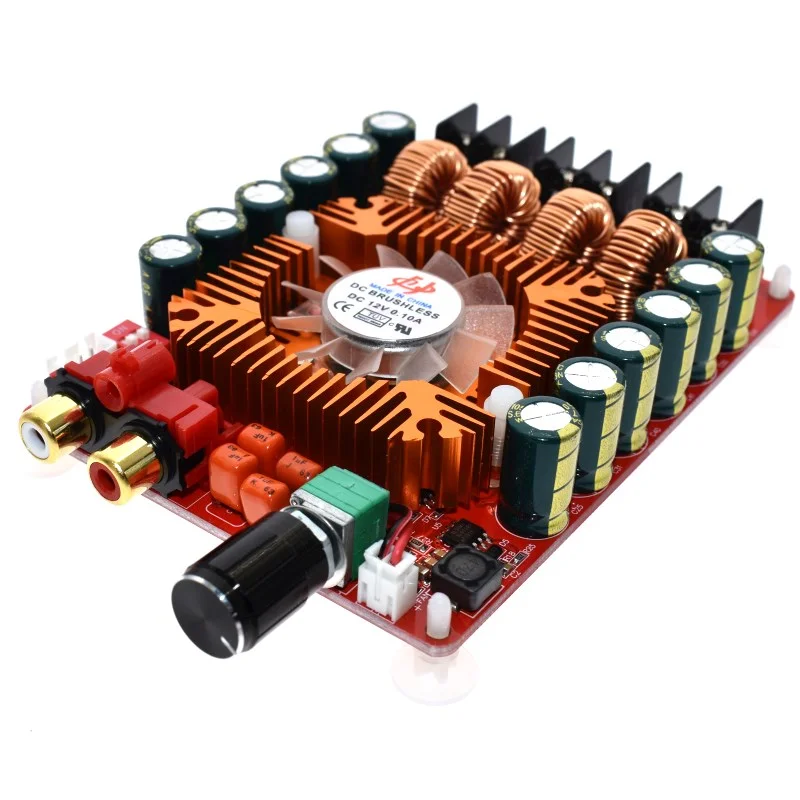

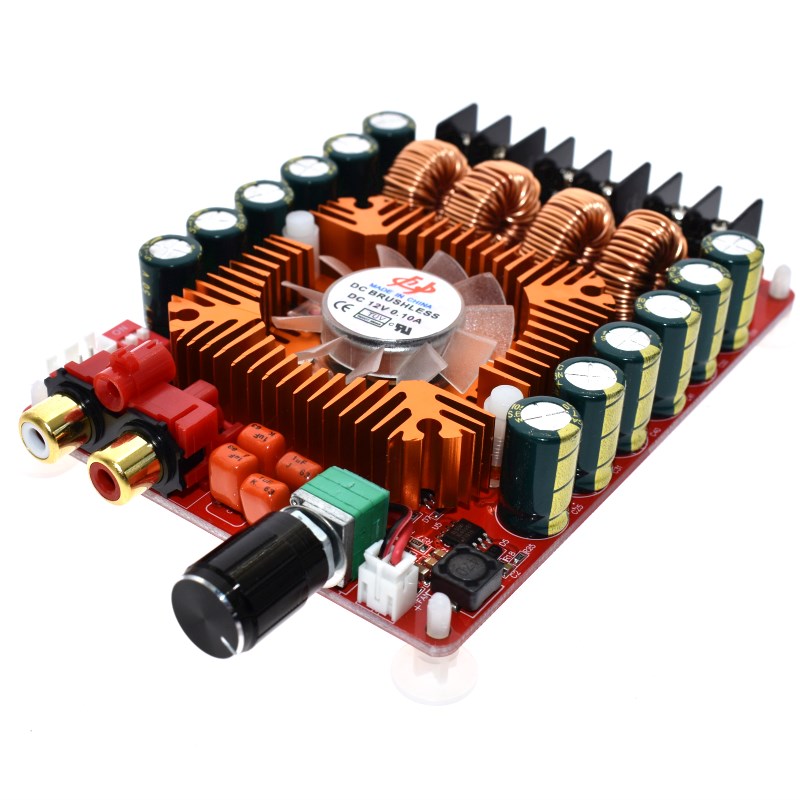

TDA7498E 2.0 HIFI dual channel stereo Digital Power Amplifier Board 2X160W Stereo BTL220W TDA7498E amplifier module--shop.rfid-life.com

Amplifier Module

$15.00
Quantity

Description

Products Description
Sound quality is very good and it can drive 4/6/8 ohm speakers. It has sufficient and high power output 2 x 160W. It supports BTL mode and when heat sink temperature rises to a certain extent, the cooling fan will work.

Features:
1, High output power digital amplifier.
2, DC 15-36V power supply, with reverse polarity protection.
3, When heat sink temperature rises to a certain extent, the cooling fan will work.
4, Support BTL mode ( J1, J2, J3, J4 on the back of amplifier board should be shorted), 36V 3ohm for single channel with 220W output.
5, Two-channel stereo, sound quality is very good.

Specifications:
Chip: TPA7498E
Channel: Channels*2
input voltage:DC 15-36V(Recommend 32V,8A)
output power:160w*2
Speaker Resistance:4/6/8 Ohm
Effciency:85%
PCB size:108*78mm/4.25x 3.1"
Wieght:173g

Package Included :
1 x TDA7498E 160W+160W High Output Power Digital Amplifier Board
