high output current music amplifier stereo integrated amplifier Hifi audio amplifier
Parameter

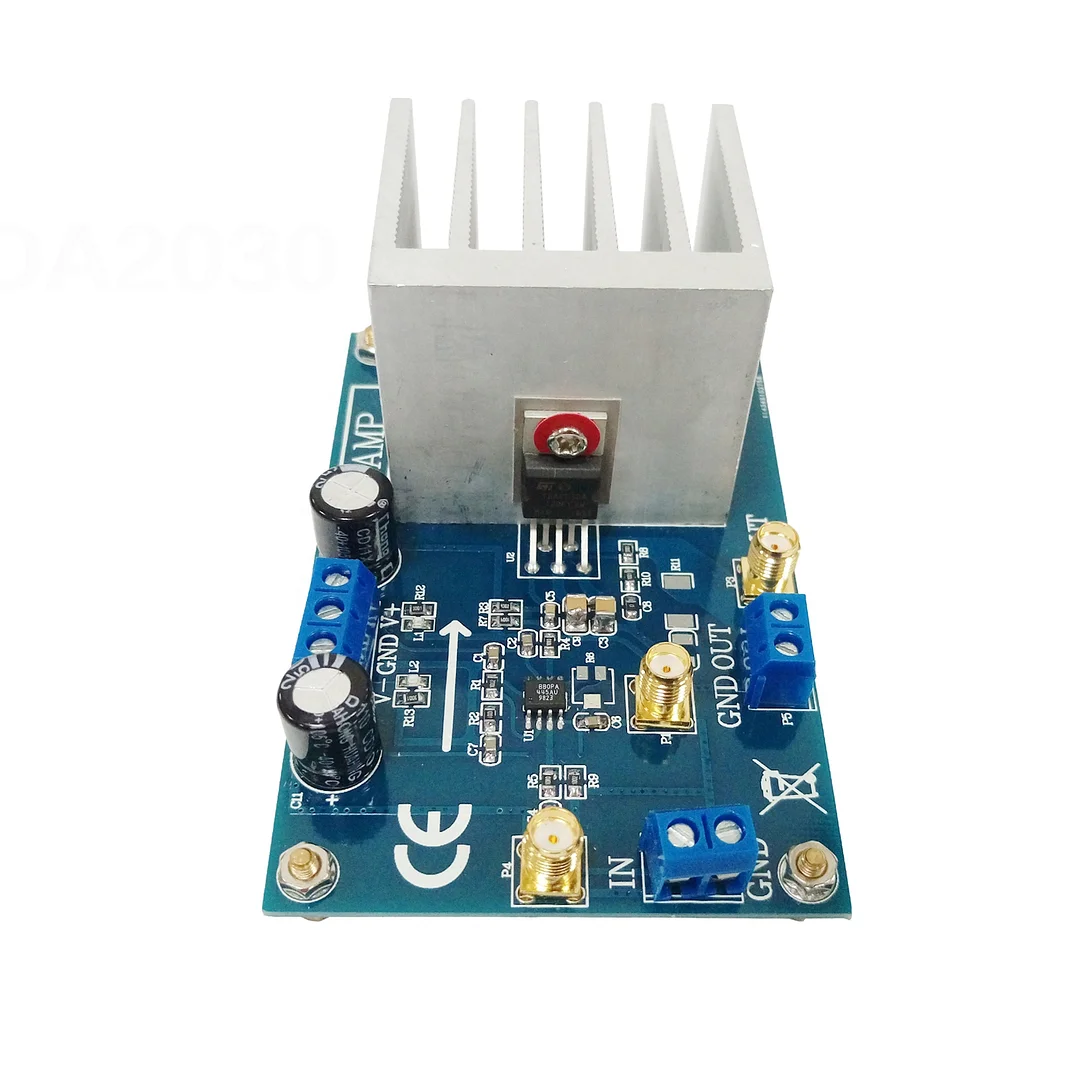

Name: TDA2030 Audio Amplifier
Size: 91mm*64mm*42mm
Supply voltage range: ±10V~±18V
The high-voltage and high-current power amplifier module is also suitable for audio amplifiers. The maximum peak voltage is 45Vpp, the bandwidth is 50KHz, and the output power is up to 14W. It is suitable for motor drives, horn drives, and transformer drives. It can also amplify triangular, sine, and square wave signals.
The main features
| The highest peak | 45Vpp |
| Maximum output power | 14W |
| Power bandwidth | 50KHz |
(1) hi-fi audio amplifier
(2) Motor drive, horn drive, transformer drive, ultrasonic drive, infrasound drive
(3) Sine wave, square wave, triangle wave signal amplification,
Used for lower frequency class AB amplifiers. It usually provides 14 watts of output power (D = 0.5%) at 14V/42 hours. At ±14 V or 28 V, 1 guaranteed output power of 12W at 4Ω load and 08 W at 8Ω.
Chip features
1,Wide range of supply voltage up to 36V (ie ±18V)
2,Single or dual power supply
3,Ground short circuit protection
4,Thermal shutdown
5, the output power is large, Po = 18W (RL = 4Ω).
6, using ultra-small package (TO-220), can increase the assembly density.
7, the boot impact is minimal.
8, contains a variety of protection circuits, so the work is safe and reliable. The main protection circuits are: short circuit protection, thermal protection, grounding accidental open circuit, reverse polarity of power supply (Vmax=12V) and backlash of load bleeder voltage.
