● Dedicated chip, unique serial number, difficult to copy. Durability without mechanic al failure, fully sealed structure resistant to harsh environments. ● Tag ID number: 10 bytes;
Description
Widely Application
Products Description

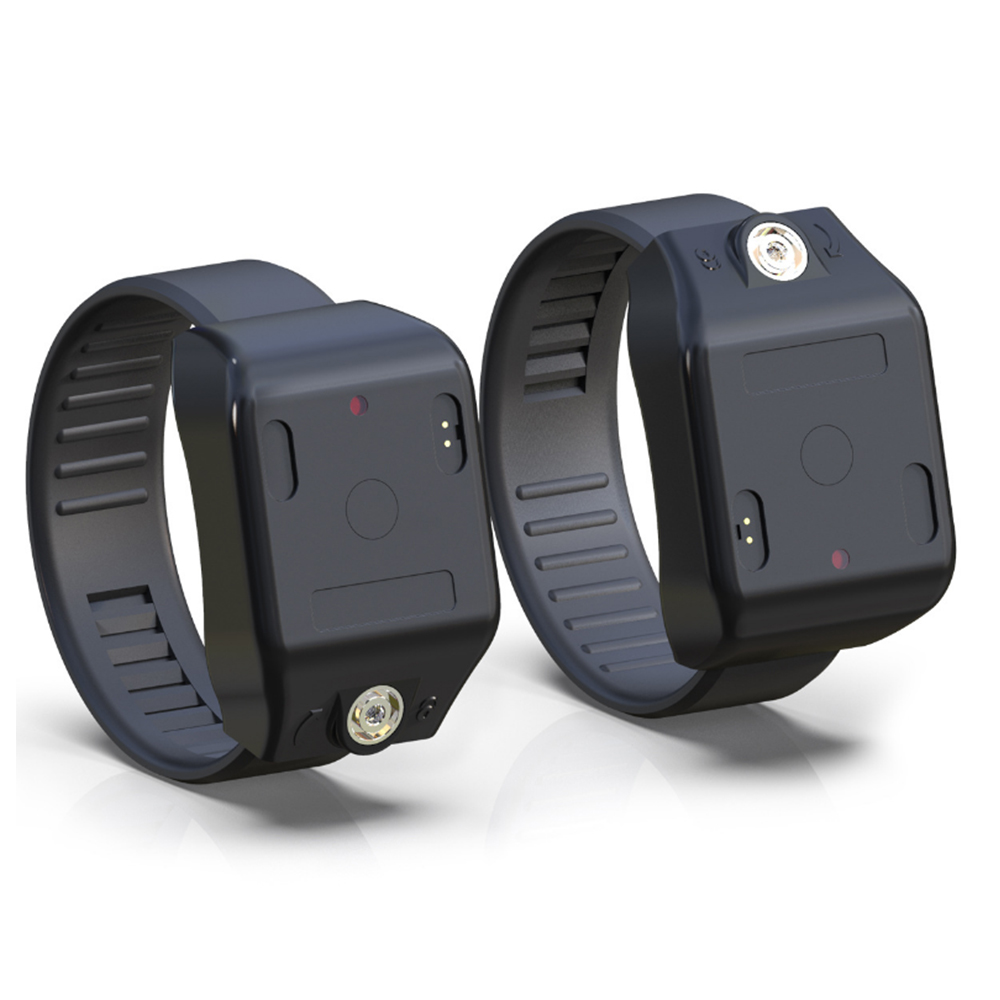

Active RFID spark-proof bracelet can have multiple operating frequencies. 2.4GHz can be recognized from a long distance, and the low-frequency 125K can a ccurately find the positioning . Composite IC short-range access control reading function, can realize multiple applications.
● Reading: Compared with bar code, there is no need to scan in a straight line, the reading speed is faster, and multi-tag recognition and motion recognition can be performed; ● Security: Anti-tampering, encryption algorithm and authentication to ensure data security and durability;
● Reading Type: Read-only; ● Duration of use: large battery capacity and long service life 2-5 years (depend on the frequency send data) ; ● Waterproof: IP67; ● Reading Distance: Long range (150M (Open area ,stable with goods is 80M ); ● Anti-suddenness: Advanced anti-collision technology can identify more than 200 tags at the same time; ● High speed recognition: recognition speed can reach 40 km/h; ● High anti-interference: no special requirements for various interference sources on the site; ● Anti-electromagnetic interference: 10V/m 0.1 ~ 1000MHz AM, AM electromagnetic wave.
● Wearing Method: On wrist;
● Anti-electromagnetic interference: 10V/m0.1 ~ 1000MHz AM, AM electromagnetic wave. ● Reliability: anti-disassembly, waterproof, can build in low frequency 125k or high frequency 13.56M;
● Waterproof: IP68;
● Material:Conductive silicone;
|
Physical Parameter
|
||||||
|
Size
|
67mm×46mm×24mm
|
|||||
|
Material
|
Environmental protection conductive silicone
|
|||||
|
Color
|
Black
|
|||||
|
Weight
|
40g
|
|||||
|
Packing
|
Corrugated box (50pcs / box) (can be customized)
|
|||||
|
Environmental Parameters
|
||||||
|
Working Humidity
|
<95%
|
|||||
|
Working Temperature
|
-25 ~ 70℃
|
|||||
|
Storage Temperature
|
-40 ~ 85℃
|
|||||
|
Protection Level
|
IP68 (Spark-proof)
|
|||||
|
Performance parameter
|
||||||
|
Static (standby) working current
|
< 15uA(Continuous standby time<500days）
< 2MA (Continuous standby time<100 hours )
|
|||||
|
Operating Voltage
|
3.7V
|
|||||
|
Battery
|
Built-in 600mAH lithium polymer rechargeable lithium battery Optional built-in 2450 button battery (non- rechargeable)
|
|||||
|
Working Current (Transmit signal)
|
<18mA (Pulse mode)
|
|||||
|
Battery Life
|
3～5Year (theoretical value)
|
|||||
|
Collision Ability
|
>200PCS
|
|||||
|
Transmit Time
|
Active 1 time per second / Passive 3 to 4 times per second
|
|||||
|
Transmit Power
|
-90dBm
|
|||||
|
Working Mode
|
Read-only
|
|||||
|
Working Method
|
Active/Passive /Active-passive combination
|
|||||
|
Low/High Frequency
|
125K/13.56Mhz (Optional)
|
|||||
Precautions
● Do not put it into the fire or store it in a high temperature environment over 85 ℃; ● Do not use sharp tools to damage; ● Do not place it near corrosive articles; ● Do not change the parameters, specifications and models of components during maintenance; ● Do not put the tag in a closed space; ● Do not collide with the tag violently; ● Do not use heavy objects to squeeze the tag.
Definition of data format sent back by the reader
Details Images
Workshop
FAQ
Question 1:
Question 3:
Is there stock for your products?
Answer: There is stock for different products in different periods. Please tell us what products you need, then we will check the stock for the products you need.
Question 2:
Question 2:
Do you offer samples?
Answer: For samples in stock, samples can be arranged directly and freely. For samples out of stock, new production needs to be arranged, and there is sample charge.
Answer: For samples in stock, samples can be arranged directly and freely. For samples out of stock, new production needs to be arranged, and there is sample charge.
Question 3:
How can the artwork be offered? Can do OEM and LOGO brand ?
Answer: Yes ,we support OEM and LOGO custom printing ,the Artwork can be sent to us by AI, or PSD,or CDR. But it has to be in vector graphics to ensure the quality of printing.
Question 4:
Answer: Yes ,we support OEM and LOGO custom printing ,the Artwork can be sent to us by AI, or PSD,or CDR. But it has to be in vector graphics to ensure the quality of printing.
Question 4:
What is MOQ? Can we order on pcs for the test ?
Answer: The MOQ is 1 pcs. For the 2.4G active tag usually different manufacture use Private communication protocol ,so if you need the samples to test ,also need to take the reader together can work well .
Question 5:
Answer: The MOQ is 1 pcs. For the 2.4G active tag usually different manufacture use Private communication protocol ,so if you need the samples to test ,also need to take the reader together can work well .
Question 5:
Can you do the whole solution including the hardware and software ?
Answer: Yes , we can . if you have the ability to docking/developing the software we will offer you the SDK /API /DEMO and communication protocol and user guide even the technical support . If you need we do the whole system ,we will done based on your requirement
Answer: Yes , we can . if you have the ability to docking/developing the software we will offer you the SDK /API /DEMO and communication protocol and user guide even the technical support . If you need we do the whole system ,we will done based on your requirement
