Description

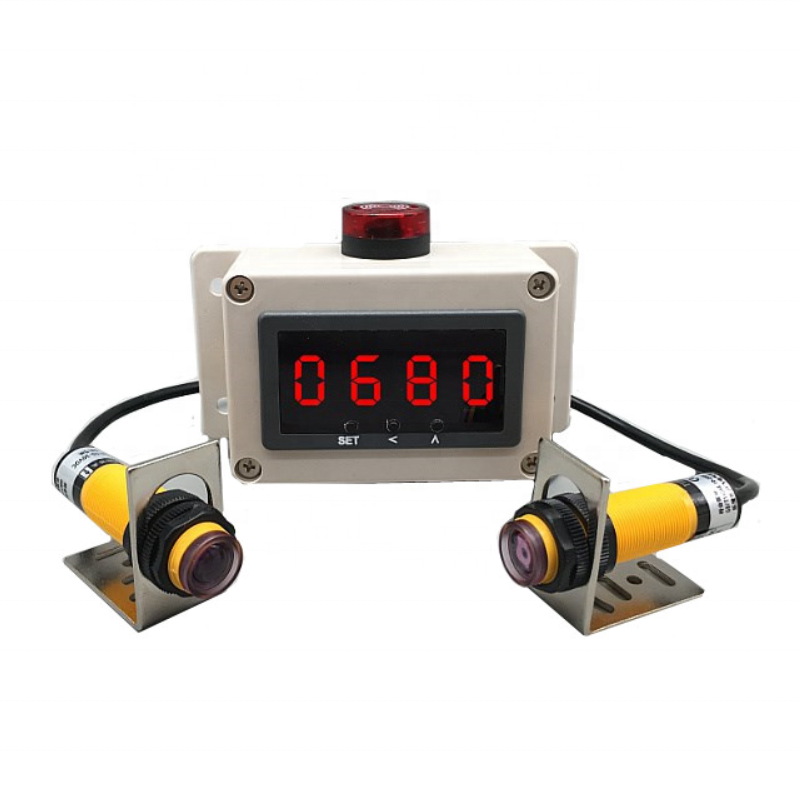

Tally Counter Smart Electronic Digital Number Counter Display Point Counter For Automatic Induction Conveyor Belt
Product Description
Single probe infrared 10CM: sensing distance 0-10cm Single probe infrared 30CM: sensing distance 0-30cm Single probe infrared 70CM: sensing distance 0-70cm Infrared beam is 3 meters: the beam distance is 0-3 meters, the object passes through the middle Laser beam 20 meters: one line of visible laser, the object cuts off the light once, counts once U-shaped groove sensor: U-shaped through-beam, objects pass through the U-shaped groove, transparent objects cannot be detected Optical fiber sensor 3CM: probe diameter 5MM, sensing distance 0-3CM Metal sensor 5M: sensing distance 0-5MM, can only sense metal objects Magnet sensor 2CM: sensing distance 0-2CM, magnet is close to the probe once, sensing once, only effective for magnetic objects
Specification
Function
Function name
Setting range
Function Description
F1
Counting interval
0~9999
Used to filter multiple inductions generated by irregular objects
F2
Induction time
0~9999
Used to avoid momentary interference caused by external factors
