Description
RF Microwave Bias Active antenna RF Power Supply Mains DC-blocker DC Feed RF Bias 10-6000MHz Amplifier DC Bias
Product Description
Application
1. Active antenna RF power supply
2. The output of the wideband amplifier is blocked
3. Communication data is injected through the RF side
Product Paramenters

Working parameters

1. Frequency range: 10 - 6000MHz
2. Insertion loss: 0.3dB@512MHz 0.45dB@1575MHz
3. Maximum voltage: 50V
4. Maximum current: 500mA
5. RF connector: SMA-K (outer screw inner hole)
6. System impedance: 50 ohms
7. Dimensions: 33mmx33mm without connectors

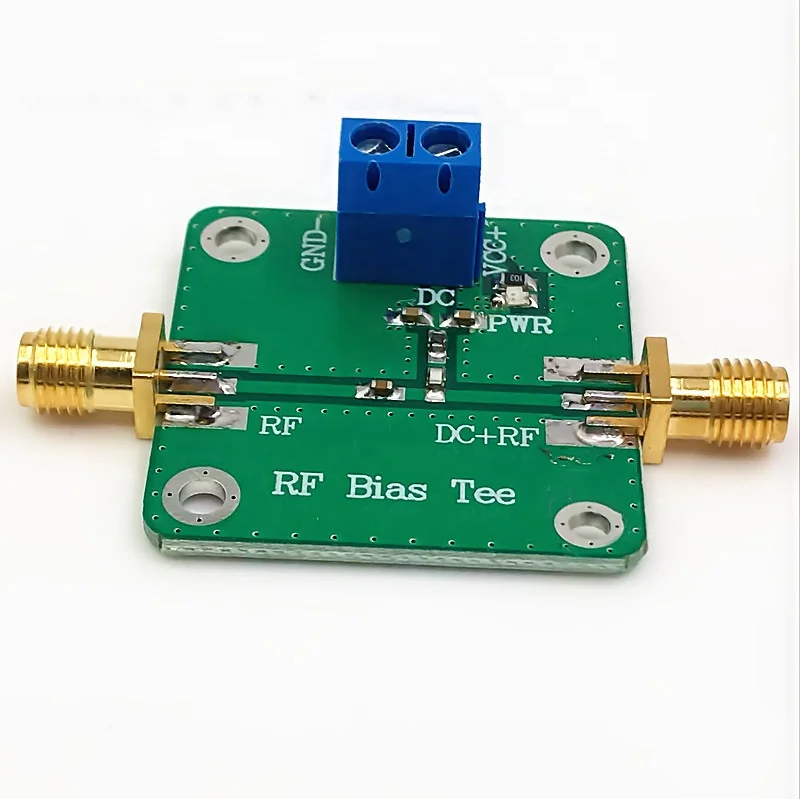

1
DC: external DC power supply
2
RF: RF signal end (this port can only transmit RF signals)
3
RF+DC: RF DC offset (this port can transmit RF and DC offset)
4
GND-: Common ground terminal for DC power supply
5
GND-: Common ground terminal for DC power supply
