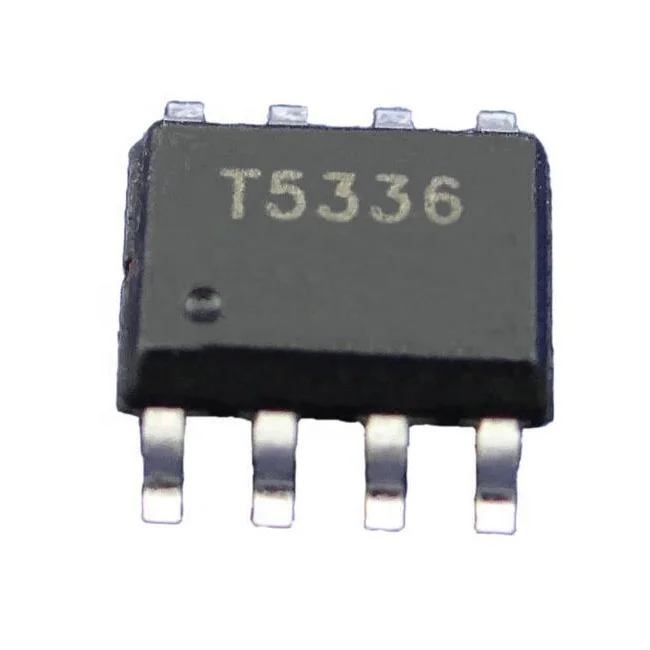

T5336 Wireless Induction Intelligent Charging Electromagnetic Energy Power Management Chip Wireless IC
Description
It adopts CMOS process technology and has the characteristics of high precision and good stability. It is specially used in wireless induction intelligent charging and power supply management systems with high reliability. T5336 is responsible for handling the radio energy transmission function in the system, adopting the principle of electromagnetic energy conversion and performing energy conversion and real-time monitoring of the circuit with the receiving part; responsible for the fast charging intelligent control of each battery, the T5336 only needs to cooperate with few external components. It can be made into a highly reliable wireless fast charger and wireless power supply.
Characteristics
Automatically adapt to the supply voltage regulation function
Enable it to work over a wide range of voltages
Automatic frequency lock
Automatic negative detection load
Automatic power control
High-speed energy transmission
Efficient electromagnetic energy conversion
Intelligent detection system, free of debugging
Working voltage: DC 3~15V
Working frequency: 0~5MHZ
Integrated, only a few ordinary peripheral components
Application range
Battery charging, wireless direct power supply for products, medical products, security products, waterproof products, toy products, adult products, digital products, MP3, MP4, mobile phones, handheld household appliances, etc.
Foot map and description
| Pin No. | Function | Description |
| 1 | FIN | Frequency detection |
| 2 | AIN | voltage detection |
| 3 | A0 | Function adjustment |
| 4 | GND | ground |
| 5 | OUT2 | second output port |
| 6 | OUT1 | first output port |
| 7 | IN | Function expansion/output connector |
| 8 | VDD | Power Positive |
