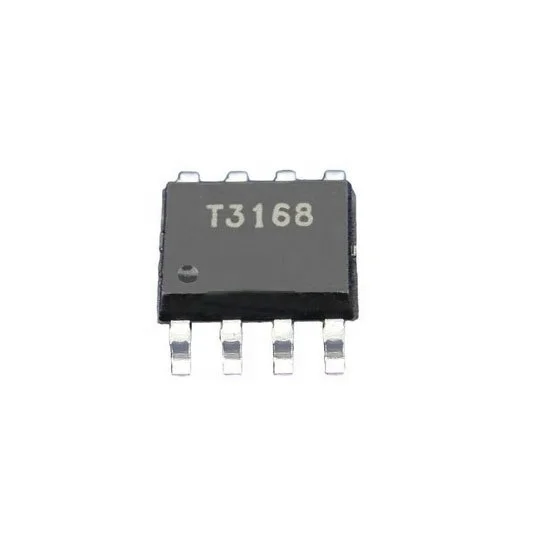

T3168 High Current Wireless Charging Wireless Power Supply Receiving IC Wireless General Purpose Power Supply IC

Wireless Power Supply
$0.82
6 sold
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
T3168 High Current Wireless Charging Wireless Power Supply Receiving IC Wireless General Purpose Power Supply IC
Product Description
T3168 is a universal receiving integrated circuit for the core charging wireless charging series. It has small volume and large output power and can be used with various wireless charging solutions. The circuit is easy to use.

Application

Battery charging, wireless direct power supply for military products, medical products, robot wireless power supply, security products, waterproof products, toy products, adult products, digital products, MP3, MP4, mobile phones, handheld household appliances, etc.
The pin map and pin description
Pin Number
Pin Function
Description
1
NC
empty
2
IN
input
3
UT
output
4
GND
ground
5
output
voltage adjustment sampling
6
NC
empty
7
O/F
output control enable
8
NC
empty

The typical application circuit

1. High-power application circuit:
2. Anti-metal identification receiving application circuit
Typical working parameters
Symbol
Working Parameters
Working Conditions
Min
Typical Value
Max
VDD
Operating voltage
25°C
12V
26V
AOUT
Output Current
VDD = 12V
500mA
2000mA

The working limit

Working temperature: -55Cto+125°C
Storage temperature: -65Cto+150°C
Maximum working voltage: 26V
Maximum output current: 2A

Package form

Dimensions in millimeters (mm)
Details Images
