Description

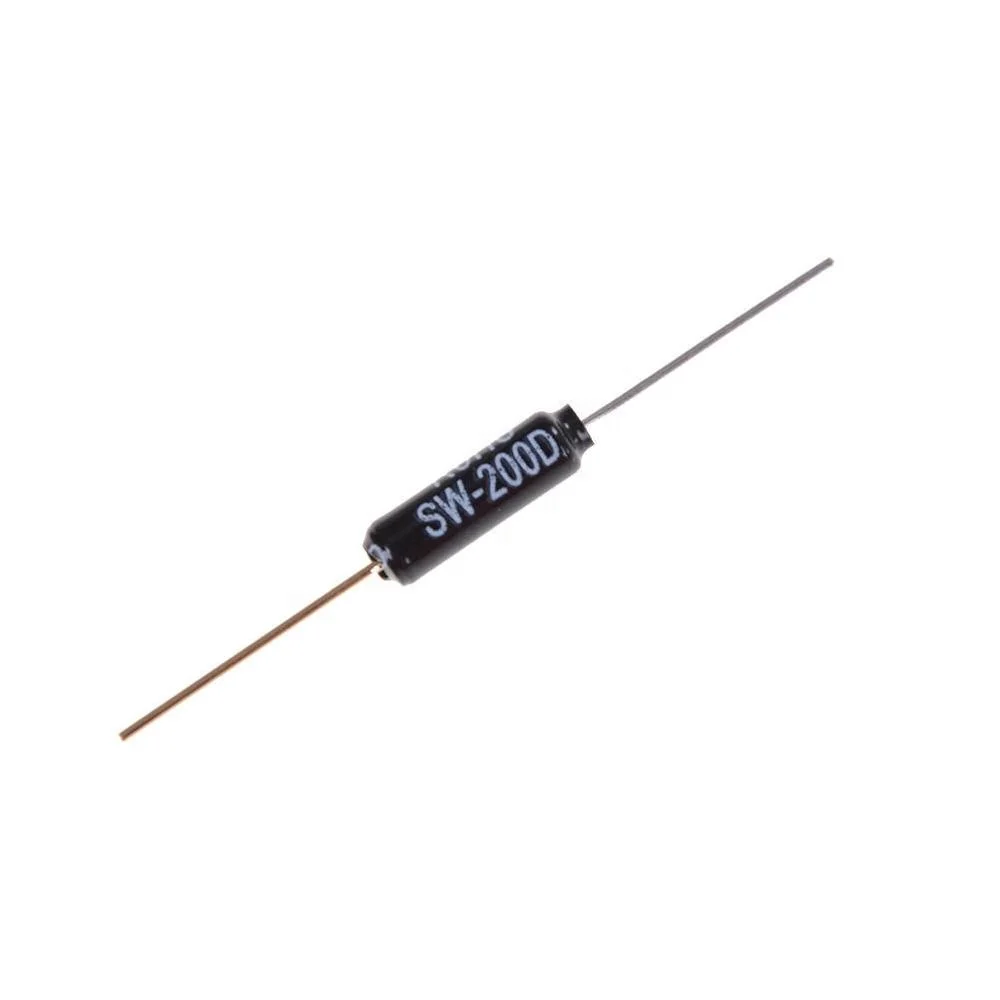

SW-200D Vibration Sensor Switch Dual Ball Single Direction Tilt Sensitive Trigger Switch 12V Tilt Ball Switch
Product Description
Feature
1. This specification product SW-200D is a dual ball type tilt vibration induction unidirectional directional trigger switch. 2. When the product is tilted to the conductive end (silver-plated pin end A) and the inclination angle is greater than 15 degrees, it is in an open circuit OFF state. When the product is horizontal When the state changes, the trigger terminal (gold-plated pin C) is closed when the horizontal tilt angle is greater than 15 degrees. 3. This product is completely sealed and waterproof, and the packaging material is environmentally friendly heat shrinkable material. 4. This product is suitable for tilt vibration induction triggering of small current circuits.
Applications
Automotive devices
Home electrical devices
Automatic power-off function for household appliances
Air warm blower fall prevention
protect switches Communication devices Toys
protect switches Communication devices Toys
|
Voltage
|
<12v
|
|
Current
|
<25mA
|
|
Conductive time
|
about 2ms
|
|
Closed resistance
|
<1 ohm
|
|
Open resistance
|
>10M ohm
|
|
Temperature range
|
Operating: -40 to 70’C
|
|
Operating lifespan
|
above 100,000 cycles
|
