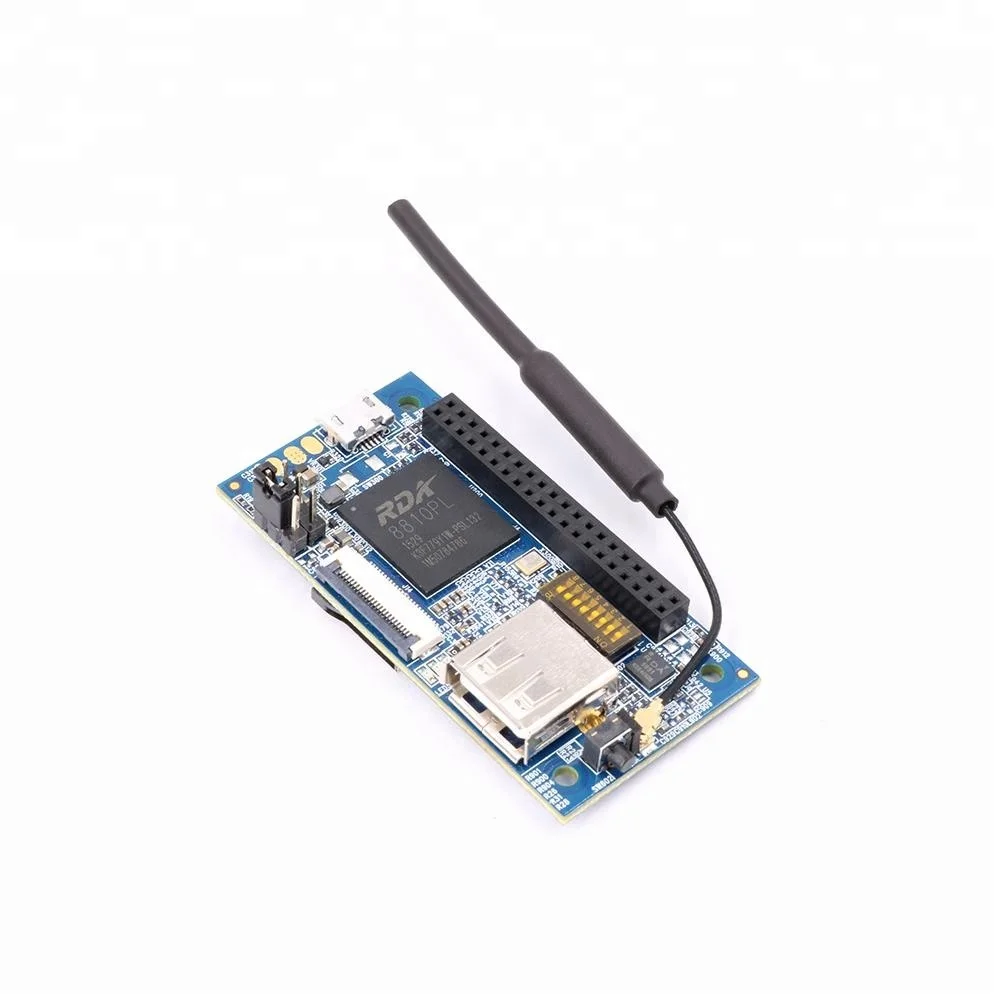

Orangepi i96 Development Board orange pi PCB Super Raspberry Pi
Orange pie is an open source single board computer, a new generation arm development board, it can run Android4.4, Ubuntu, Debian and other operating systems. The Orange Pi i96 uses the RDA8810 system-on-chip and integrates 256MB of LPDDR2 SDRAM memory.
| CPU | ARM -A5 32-bit |
| RAM |
Integrated 256MB LPDDR2 SDRAM |
| Onboard storage |
TF Card / Integrated 512MB 8-bit 1.8V 4K SLC Nand Flash |
GPU
Separate graphic processor, Vivante's GC860
Support OpenGLES1.1/2.0
Support OpenVG1.4
Support DirectFB
Support GDI/DirecShow
30M Triangle/s, 250M Pixel/s
RAM
Integrated 256MB LPDDR2 SDRAM
Onboard storage
TF Card / Integrated 512MB 8-bit 1.8V 4K SLC Nand Flash
Onboard Wifi + ble
RDA5991, WIFI+BT
Video input
Camera module with CSI
power supply
USB OTG power supply, battery-powered (optional)
USB 2.0 port
One USB 2.0 HOST, one USB 2.0 OTG
GPIO(1x3) pin
UART, ground.
Low-level peripherals
40 Pins connector
button
Power button (SW602)
LED lights
Power light
Supported operating systems
Android, Ubuntu, Debian, Rasberry Pi Image
Appearance specifications
Product size: 60mm × 30mm
Weight: 30g
