Description

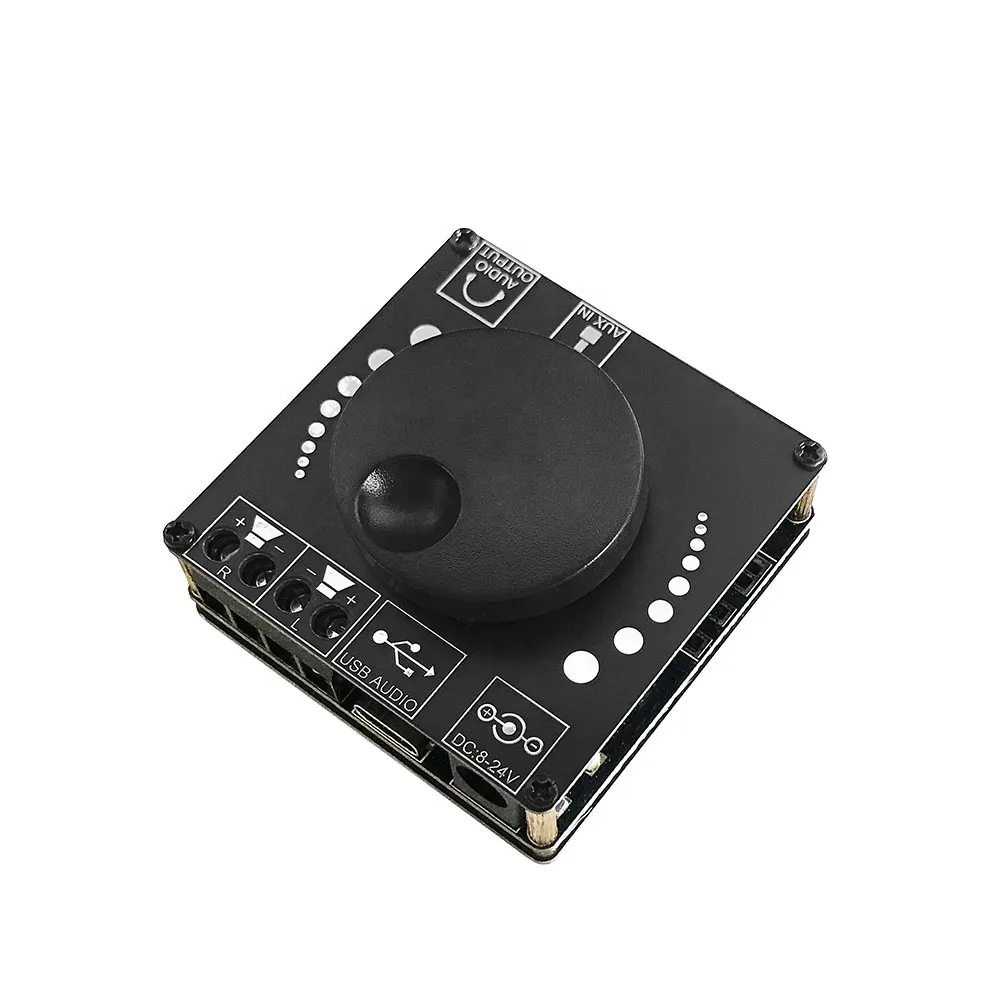

Stereo Receiver Amplifier with Ble 5.0 Knob Volume Adjust Switch 2 Channel Stereo Amplifier USB Amplifier for PC
Product Description
1, Support U disk playback
Plug in the U disk, open the APP to switch the "U disk" mode, accompanied by a prompt sound, enter the U disk Play mode
2, computer sound card function
It can output a signal with better sound quality than the computer to play with speakers. Connect the Ble board to the computer with a data cable, open the APP and click to switch "sound card" to complete the switch and play with a prompt sound. Open the computer player software to play music. Note: Most computers will automatically recognize the sound card to play, some computers may need to be set.
3. Mobile APP control supports Android Apple system
4. The encoder adjusts the volume, making the hand feel smoother "Short press" to play/pause "Long press" to turn on/off 5. Use Type-c adapter to adapt U disk to play MP3, WAV format music Type-c interface to connect to a computer as a sound card 6, Adopt 5.5/2.1 socket, compatible with 5.5/2.1, 5.5/2.5 plug Equipped with DC adapter, convenient for non-standard plug wiring
Specification
|
item
|
value
|
|
|
Product name
|
Mini 50W+50W stereo Ble digital amplifier
|
|
|
Supply voltage
|
DC: 5~24V (The higher the voltage, the greater the output power)
|
|
|
Ble version
|
5.0
|
|
|
Transmission distance
|
15 meters (unobstructed)
|
|
|
Number of channels
|
Left and right two channels (stereo)
|
|
|
Adapted speakers
|
30W~200W 4Ω 8Ω 16Ω
|
|
|
Protection mechanism
|
Power reverse connection protection, short circuit protection, self-recovery overheating protection
|
|
|
Note
|
The output power of the power supply should be greater than the output power of the amplifier, otherwise it will affect the sound quality
|
|
|
12V- >8Ω/15W+15W, 4Ω/ 20W+20W
15V- >8Ω/ 18W+18W, 4Ω/more than 30W+30W
19V->8Ω/32W+32W, 4Ω/more than 45W+45W
24V-> 8Ω/ 40W+40W, 4Ω/more than 50W+50W
|
||
Precautions for use:
1. Use the power amplifier board as far away as possible from the WIFI signal (router) 2. The recommended power supply voltage is DC 5~24V, if it exceeds 26V, the chip will burn. 3. The power supply current is recommended to be above 2A. 4. The speaker cable should not be too long, and ensure that it is suitable within 1 meter 5. Pay attention to static electricity protection. Before touching the power amplifier board, discharge the static electricity on your hands to avoid static electricity. Chip breakdown, Ble chip is more sensitive to static electricity. 6. It is recommended to adapt the speaker with a rated power of 40W
Details Images
