1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
Description
Product Description

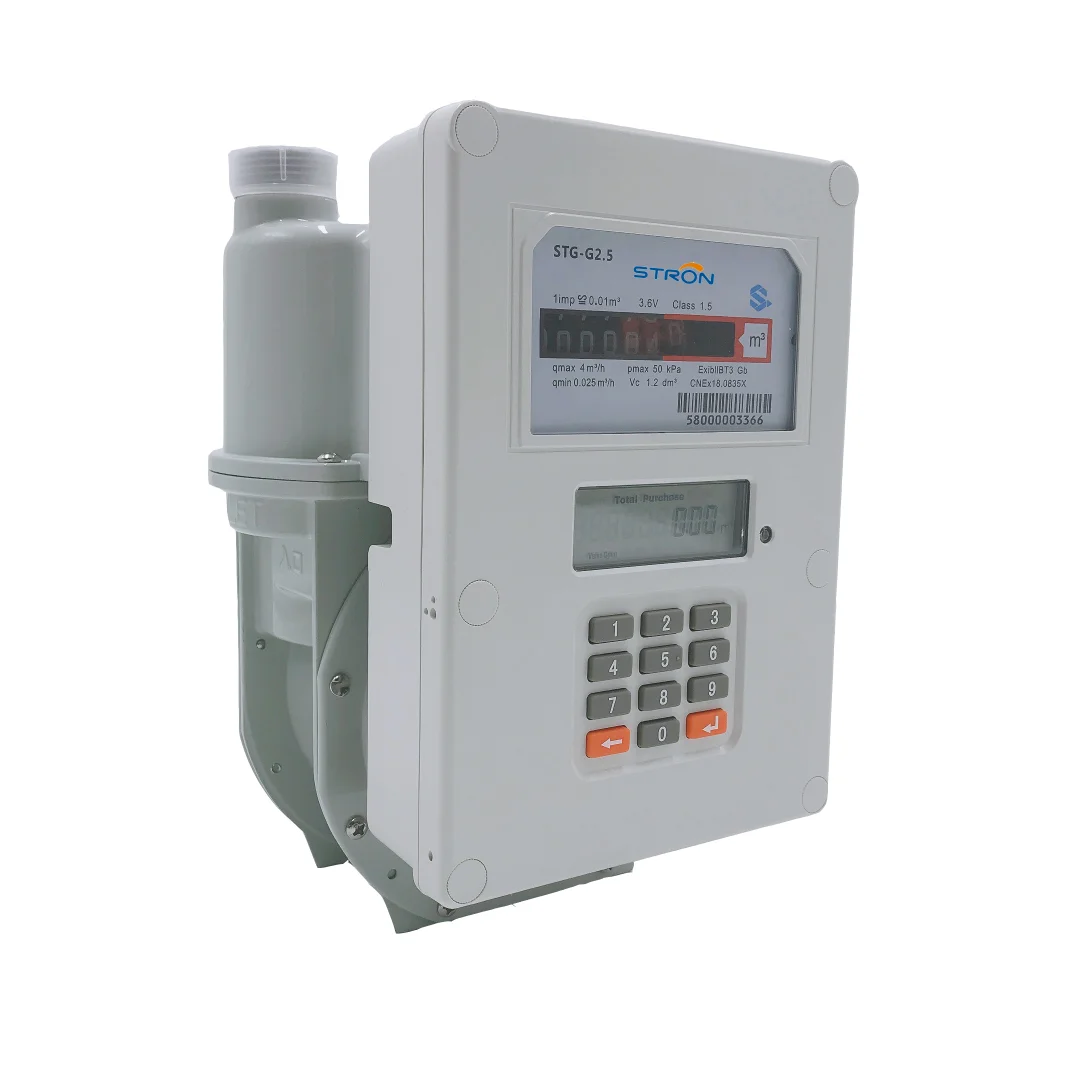

The STG16-A is an STS Standard compliant, keypad type, automatically valve controlled prepaid gas meter. The integrated keypad is offered to enter recharge TOKEN and check information by short codes.
Stronpay gas vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc. So users can top up PAYG gas by mobile money without leaving the house. Pay as you go function and excellent anti-tamper feature like Magnetic field protection to help utilities for Revenue gas protection and consumer management.
Metrological Parameters of different size
|
Size
|
G1.6
|
G2.5
|
G4
|
||
|
Nominal Flow Rate
|
1.6 m3/h
|
2.5 m3/h
|
4 m3/h
|
||
|
Maximum Flow Rate
|
2.5 m3/h
|
4 m3/h
|
6 m3/h
|
||
|
Minimum Flow Rate
|
0.016 m3/h
|
0.025 m3/h
|
0.04 m3/h
|
||
|
Cyclic Volume
|
0.7dm3
|
1.2 dm3
|
2 dm3
|
||
|
Maximum Working Pressure
|
0.7bar
|
0.7bar
|
0.7bar
|
||
|
Pressure Loss
|
<200Pa
|
<200Pa
|
<200Pa
|
||
|
Maximum reading
|
99999.9
|
99999.9
|
99999.9
|
||
|
Working Temperature
|
-20℃-50℃
|
-20℃-50℃
|
-20℃-50℃
|
||
|
Storage Temperature
|
-30℃-60℃
|
-30℃-60℃
|
-30℃-60℃
|
||
|
Error
|
Qmin≦Q≦0.1Qmax
|
±3
|
±3
|
±3
|
|
|
0.1Qmax≦Q≦Qmax
|
±1.5
|
±1.5
|
±1.5
|
||
Basic Functionality
|
Function
|
Details
|
|
Prepayment
|
STS Standard, recharge by input 20digits TOKEN
|
|
Low credit alarm
|
Alarm value can be set by inputting corresponding TOKEN
|
|
Prepaid and post-paid switch
|
Meter can be switch to prepaid mode or post-paid mode
|
|
Anti-tamper
|
Meter will automatically close the valve after detection of magnetic field and open cover event
|
|
Step Tariff
|
Step Tariff can be set by inputting corresponding TOKEN
|
|
Overdraft Collection
|
Non- Revenue gas (Overdraft) can be collected day by day or
month by month |
|
Communication
|
The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
|
|
Information Inquiry
|
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
|
Meter Dimensions
Aluminum Body
Steel Body
Stronpay vending software
Operation of vending software
Gas Vending Process
API--- Stronpay vending software can integrated with local mobile payment via API
