SPF5189 Wideband RF Power Power Amplifier VHF UHF 0.05-4G Wideband Amplification Low-Noise MMIC Amplifier
Product Description
3v-5V single power supply, current adjustable (through bias resistor) typical current 60mA impedance matching 50Ω
Specification
|
item
|
value
|
|
Name
|

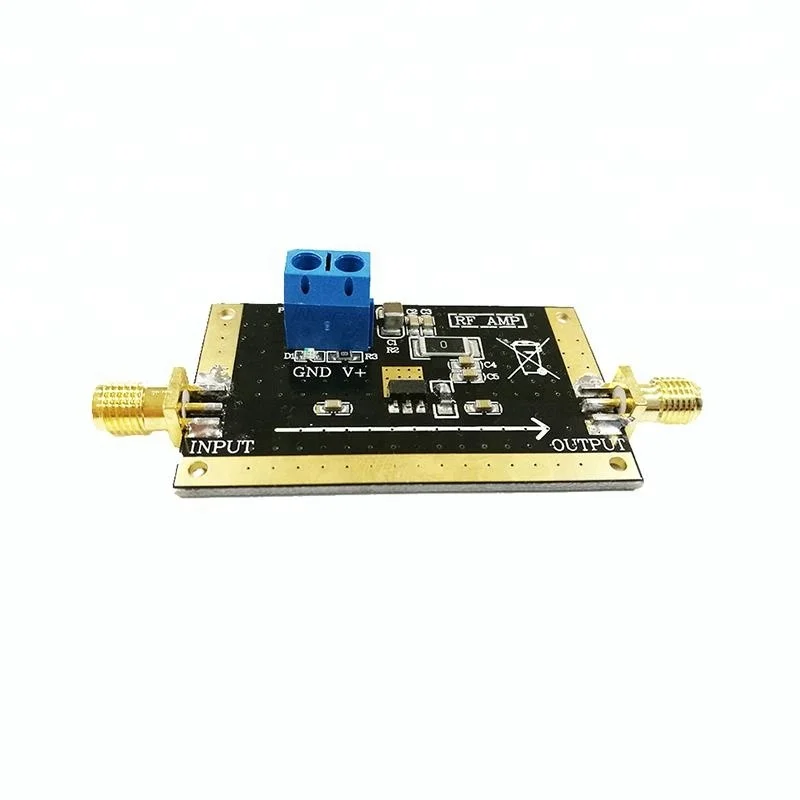

SPF-5189 50MHz-4000MHz Low Noise RF Amplifier Module
|
|
Size
|
50MM X 30MM
|
|
Supply voltage range
|
+5V
|
|
Fixed gain
|
18dB at 900MHz
50MHZ-4000MHz
+22.7dBm P1bD at 1960MHz
+39.5dBm OIP3 at 1960MHz
|
|
Noise Figure
|
0.6dB at 900MHz
|
|
Place of Origin
|
China
|
|
Size
|
50MM X 30MM
|
|
Supply voltage range
|
+5V
|
|
Product Name
|
SPF5189 Low Noise RF Amplifer
|
Installation Instructions
|
Low noise amplifier RF amplifier test data
|
||||||||||||||||||
|
Fre(MHz)
|
50
|
100
|
500
|
800
|
1000
|
1500
|
2000
|
2400
|
2800
|
|||||||||
|
Gain(dB)
|
19.6
|
22.86
|
21.2
|
19.49
|
18.65
|
16.5
|
12.55
|
10.85
|
9.5
|
|||||||||
|
Frequency 3000MHz, Gain is 7.25 dB
|
||||||||||||||||||
Pay attention
The RF amplifier must be connected to the load before the access signal (power on), otherwise it is easy to burn out!!
