SN04-N Inductive Proximity Sensor Detect metal object Switch rectangular Sensor NPN NO Inductive Proximity Switch--shop.rfid-life.com

Sensor module

$1.08
Quantity

Description

Product Description

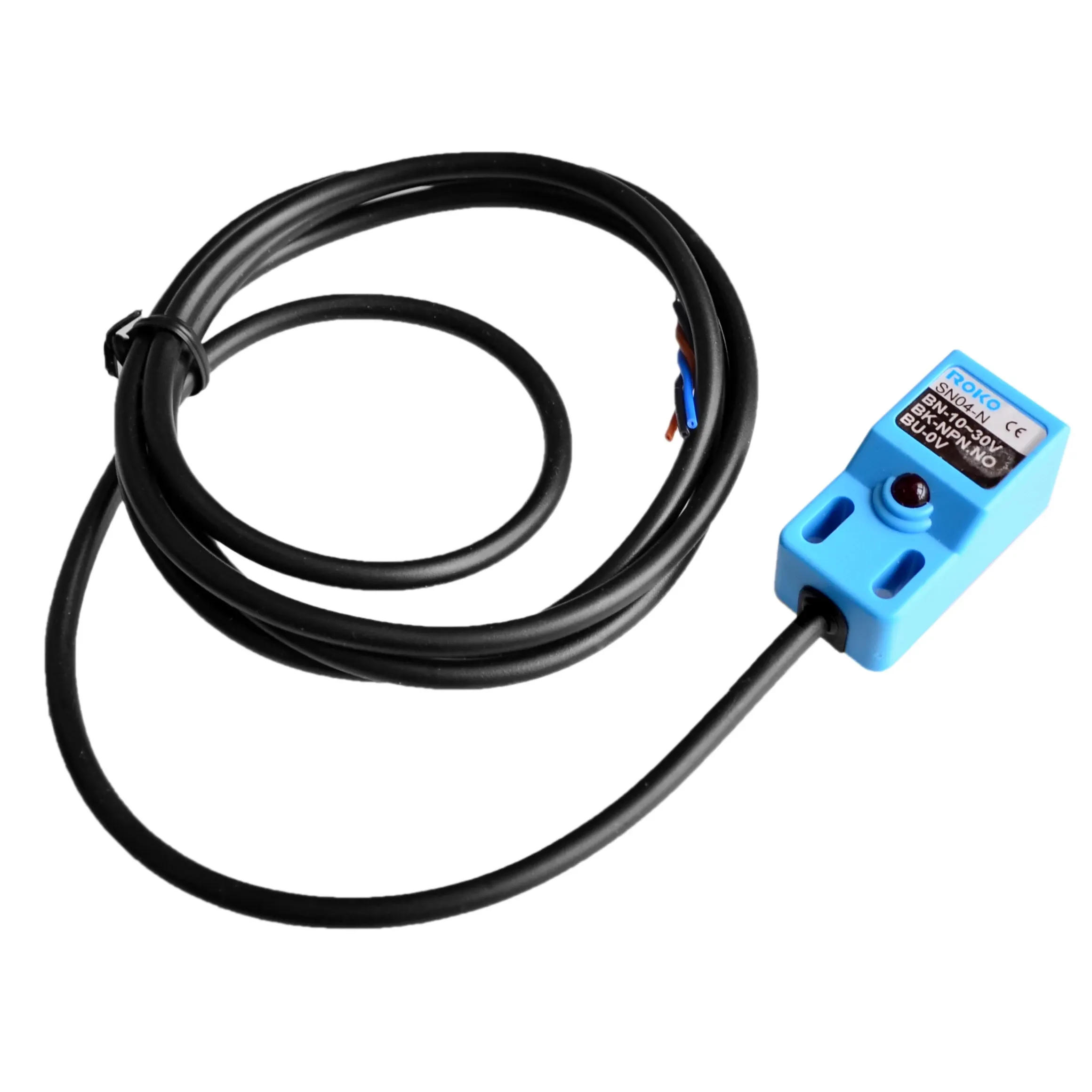

SN04-N Inductive Proximity Sensor Detect metal object Switch rectangular Sensor NPN NO Inductive Proximity Switch

Main Parameter:
Detection distance :4mm ± 10%
Set distance:0~3.8mm
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object:Iron 18*18*1mm
Response frequency:DC:0.5kHz
Supply voltage:DC type:DC12V DC24V DC36V(DC6~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
Protection influence:IP67(IEC specification)
