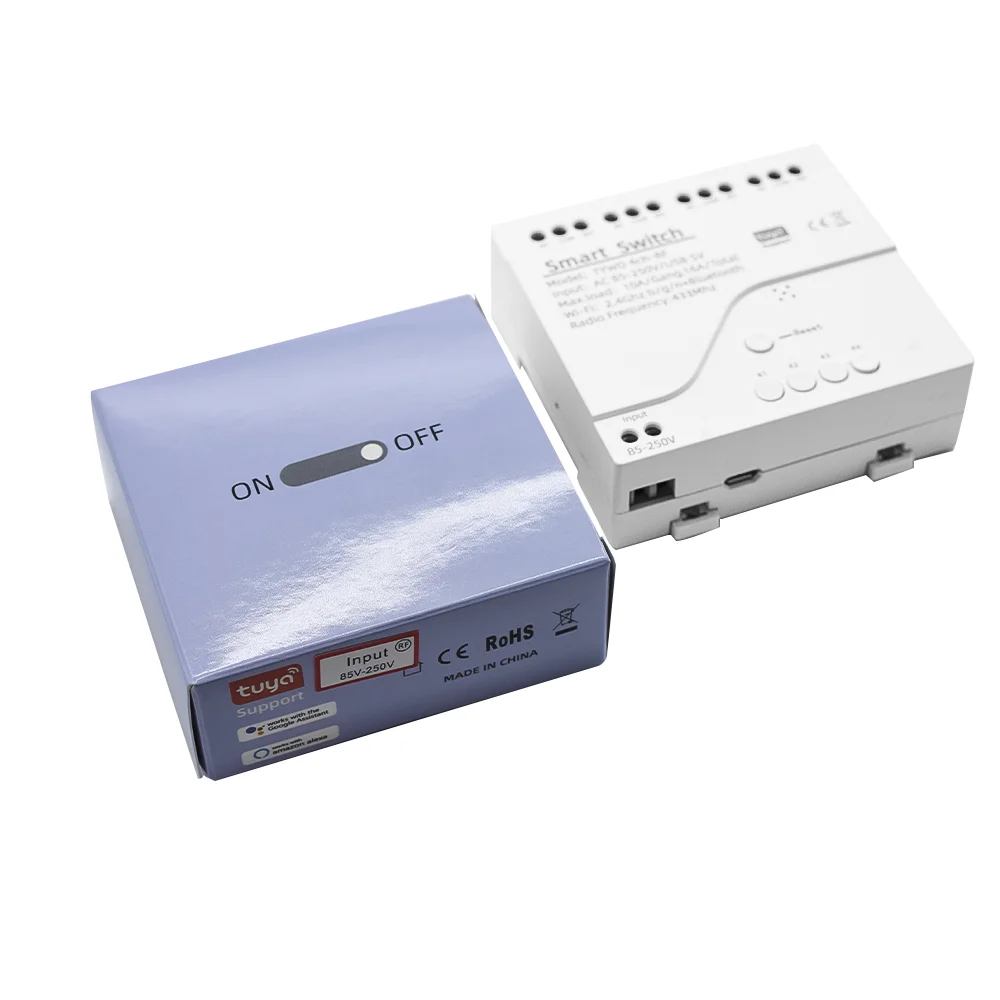

SMG-E0901 Tuya 4 CH Smart Switch Module AC85-250V Relay with Automation RF 433mhz Receiver Timer DIY220V 240V 110V

$19.00
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Tips

Note

This receiver contains RF function and can be used with a 433MHz remote control. If you need a remote control, please contact me,thank you
Specification
item
value
Model Number
SMG-4CH RF+WiFi AC85-250V
Color
Other
Place of Origin
China
Material
ABS, metal
Code
Learning Code
Button
4 Buttons
Function
LED indicator light, Automatic, Light, Wireless Control, Smart, 2.4g Wireless, Rf Remote Control, Wifi Control,Universal switch
Usage
Home Automation
Product Description

Note

The relays is passive output(dry contact), No matter how many power you supply in the input, the output don't have any voltage,you also need to supply power in output.
The power supply in the input just can make PCB board work.if you do not supply power in output, the connectted device can't work.

Use for

1.Remotely give a pluse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pluse signal to turn on/off Garage Door,Door Access
3.Remotely give a pluse signal to control DC Motor,AC Motor to Forward and Reverse
3 Working Modes
1.Self-locking : each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.
2.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
3.Inching mode : Switch on one
channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.
If you need to change the mode,you need to press the mode button

How to Change the Inching Time

If you need to change the inching time.you need to press the mode button to enter into self-locking mode or interlocking mode,so you can change the inching time on the APP and the inching time only available in the self-locking or interlocking mode)
The time range is 2-3600 seconds.

Features:

【Two Input Ports】
You could choose USB 5V port or the screw terminal port to supply power in the input to make the pcb board board work.
【Dry Contact/Passive Output】
No matter the power you supply in the input, the output don't have any voltage
If you do not supply power in output port, the connectted home appliance can't work, you also need to supply power in output.
【Timer】
The connectted home appliances can be automatically turned on/off according to the time schedule.
Each channel can set different time schedule.

Different Ways to Control the WIFI Module

【APP Remote Control】
You can control the connectted home appliance in Tuya or smart life APP anywhere and anytime.Such as light, electric kettle,
electric rice cooker, electric curtain, etc.
【RF433 Control】
The WIFI Module support RF433 Frequency,and you can control the WIFI module by RF433mhz remote controller.
【2.4Ghz WIFI Control】
When you at home,You could control the module in your smart phone by 2.4Ghz WIFI
【Mobile Network Control】
When you go outside,you could control the device in your smart phone by 2G/3G/4G Mobile Network.
(Note:The router need to online and the WIFI module need to keep a close distance with the router)
【Voice Control 】
Compatible with Alexa and Google Assistant, you can use the voice control to turn on/off the connectted home appliances
【Share Control】
One device can control by Multiple phones,you can share the wifi module with your family.
【Group Control】
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then you can turn
on/off all smart device at the same time.
APP Remote Control
*You can remote turn on/off household appliances and set timing schedules to turn on/off the household appliances via app Tuya/Smart life anywhere anytime.
*such as lights, celectric curtains ,electric curtains fans. so you can enjoy an high-tech life.

Timer/time schedule

Via app,you can set time schedules to automatic turn on/off the household appliances , such as lights, celectric curtains
,electric curtains fans. so you can enjoy an high-tech life.

Share multiple mobile accounts

Can share family, friends, etc.
