Description

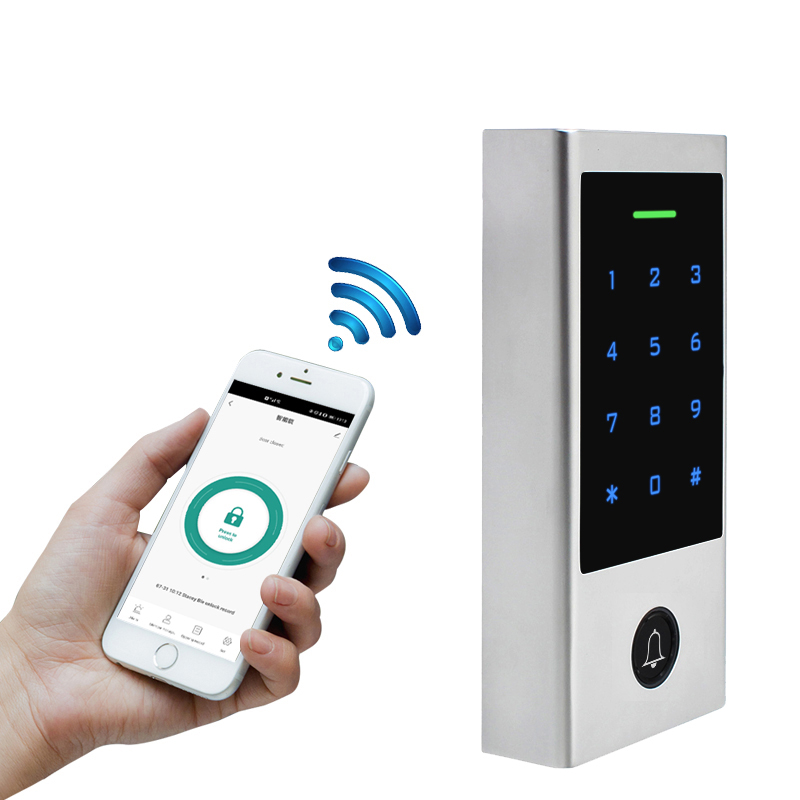

Smart door lock rfid long range reader Mobile phone open gate Bluetooth access control
Main Feature
access control bluetooth
Bluetooth TouchKey Access Controller
> Capacitive Fingerprint Sensor,touch keypad
> Waterproof, conforms to IP66
> Metal housing, anti-vandal
> Card type: EM Card or Mifare Card
> iOS and Android available
> Add / Delete users by APP
> Support checking Opening Record
> Support Gateway
> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
Specifications
smart door lock bluetooth open the gate
|
User Capacity
Common User
Visitor User Panic User |
Hardware User: 1000 APP User: 100 (including 255 fingerprint / card/ PIN users)
988 (100 Fingerprint Users + 888 PIN/Card Users)
10
2 |
| PIN Length | 4~6 digits |
|
Operating Voltage
Idle Current
Active Current |
12~28V AC/DC
≤ 60mA
≤ 150mA |
| Proximity Card Reader Radio Technlogy Read Range |
EM or Mifare 125KHz/13.56MHz 2~6cm |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output |
|
Relay
Adjustable Relay Output Time
Lock Output Load
|
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
|
| Wiegand Interface PIN Output |
EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
|
Environment
Operating Temperature
Operating Humidity
|
Meets IP66
-30°C ~ 60 ° C (-22 ° F ~ 140 ° F)
0%RH ~ 98%RH
|
|
Physical
Color
Dimensions
Unit Weight
Shipping Weight
|
Zinc-Alloy
Sliver & Black
L145 x W68 x H25 (mm)
500g
615g
|
