Small Receiving One Transmitter to 3 Receiver Multiple Device Wireless Charging Station Li Ion Battery Charging

Li Ion Battery Charging
$26.95
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description

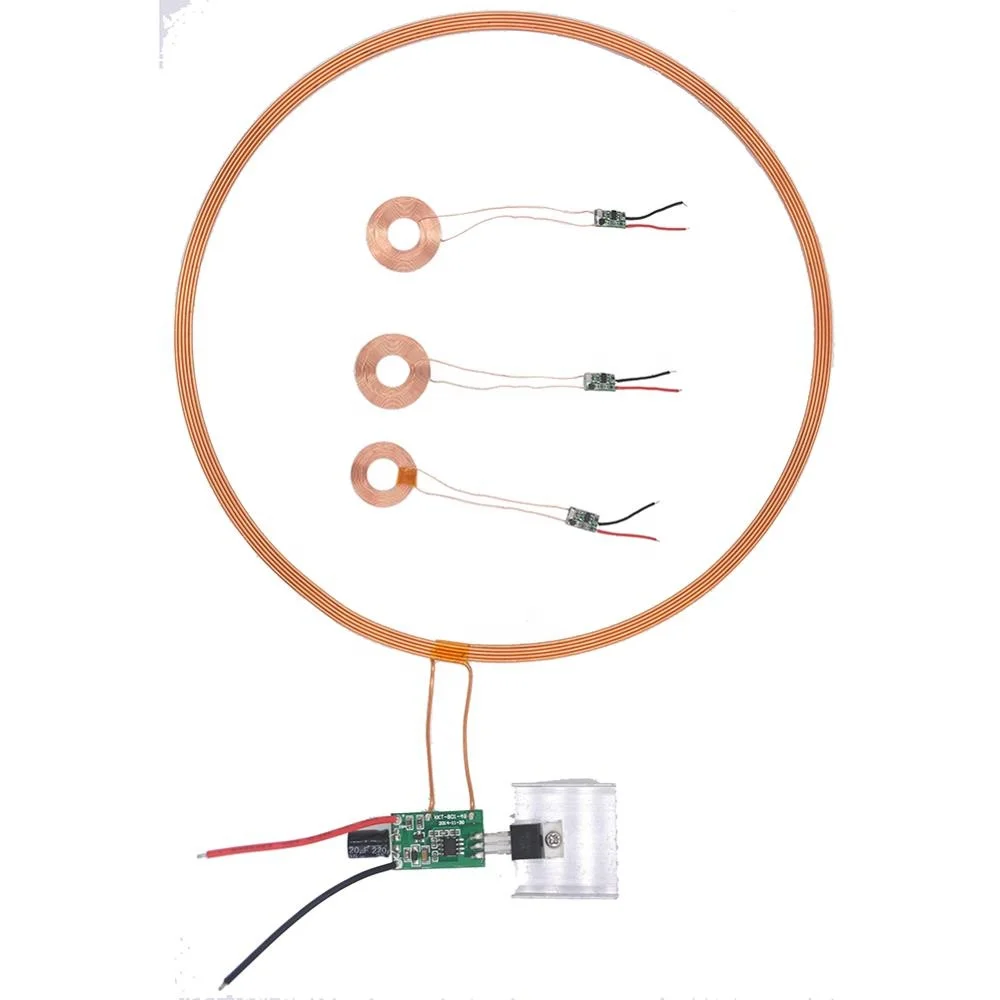

Small Receiving One-to-many Multiple Device Wireless Charging Station Chip Solution XKT801-14 Li Ion Battery Charging

The high-power XKT-801 chip developed by the company is designed to have the advantage of large output power, and the voltage is 24V.

The main parameters of this module:

Transmitting voltage 24V
Induction distance 0~30mm
Receive output each receiving output is 5V DC voltage (can change the sampling resistance to voltage)
Transmitter module size 16mm*24mm
Transmitting coil outer diameter 200mm
Receiving coil outer diameter 23mm*0.3mm line
Drive capability can be used for multiple receiving at the same time
Use range 0mm~60mm
Output current 5~20mA





Can supply power to the microcontroller, can directly charge tiny batteries

Configuration: 3 receiving with the transmitting module
