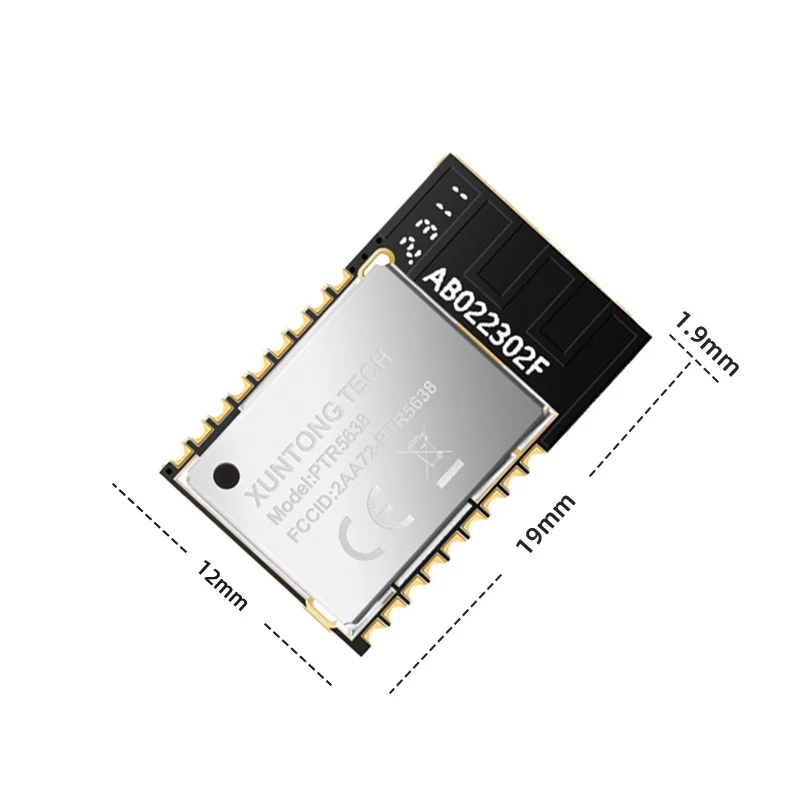

Small nRF52832 2.4GHz Mesh Protocol BLE 5 Low Power Consumption IoT Bluetooth Module

Bluetooth Module
$4.66
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Specification
Chipset
Nordic nRF52832
Protocol
BLE5.0/ 2.4GHz/ Mesh/ ANT
Frequency
2.360GHzto 2500GHz
Antenna Type
PCB Antenna
Operating Temperature
-25~+85°C
Power Supply
1.7~3.6V
Transmit Power
+4dBm~-20dBm
Receiver Sensitivity
96dBm(BLE mode)
TX
5.3mA
RX
5.3mA
Flash/RAM
512KB/64KB
GPIO
14
* 12-bit/200KSPS ADC,PWM,SPIMaster/Slave(8 Mbps) * Low power comparator, Temperature sensor, Random Number Generator * Two 2-wire Master/Slave (12C compatible) * 12S audio interface, PDM audio interface * UART(w/ CTS/RTS and DMA)
* 20 channel CPU independent Programmable Peripheral Interconnect (PPI)
* Quadrature Demodulator (QDEC) * 128-bit AES HW encryption * OTA firmware updates available
* No external components required
* 5 x 32bit Timers, 3 x 24bit Real Timer Counters (RTC),Watchdog Timer
* Internal RC Oscillator 32.768 kHz(250 ppm)
