Description

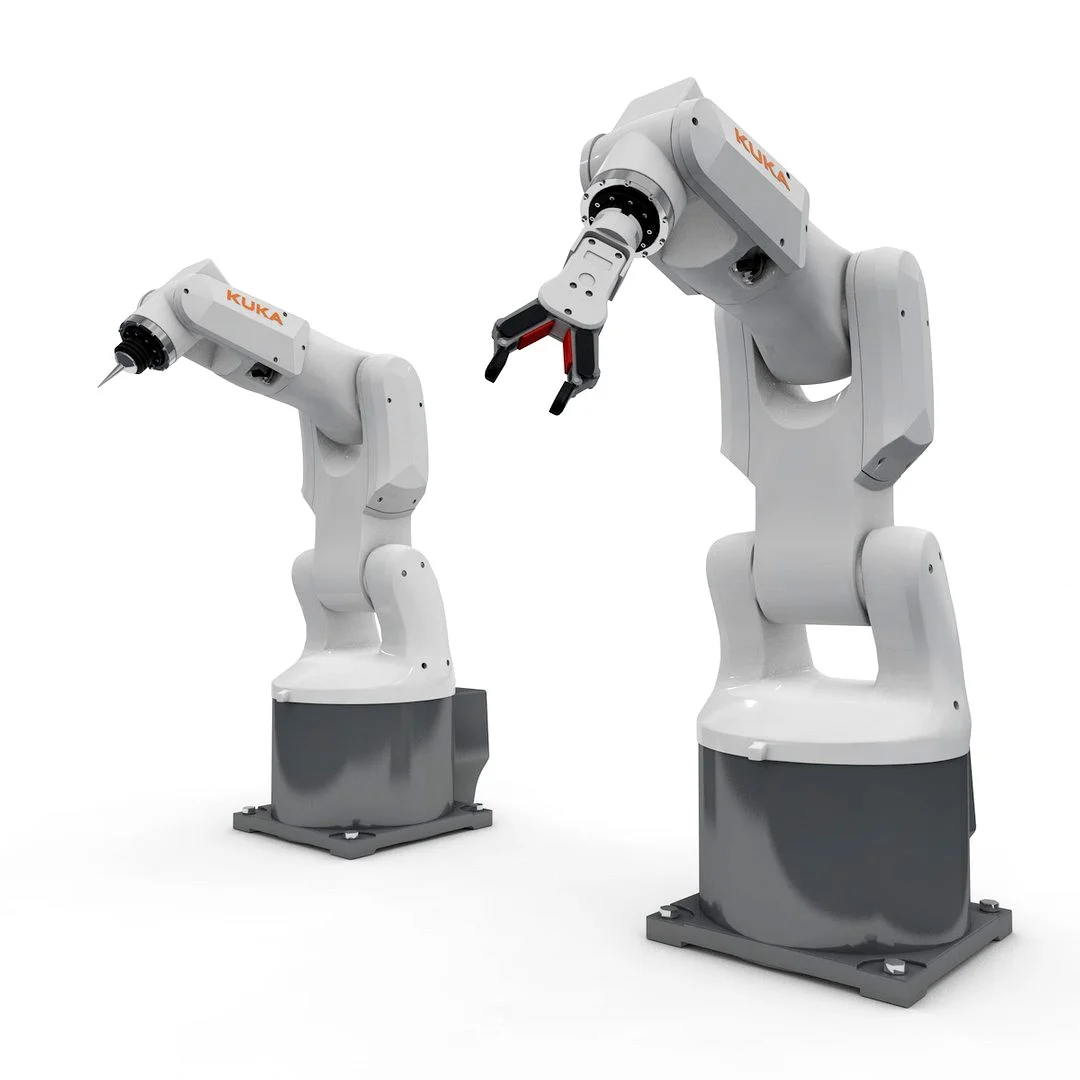

 KUKA small industrial robot KR 3 AGILUS top performance 6 axis material handling robot

Main Specifications

Model:  KR 3 AGILUS
Maximum reach:541 mm
Maximum payload:3 kg
Pose repeatabilit: ± 0.02mm
Number of axes :6
Weight:approx. 26.5 kg
Protection rating:IP40





Product Description
Production Name KR 3 AGILUS industrial robot arm
Model KR  3  540
Application electronic   robot arm
Maximum reach 541 mm
Maximum payload 3kg
Pose repeatability (ISO 9283) ± 0.02 mm
Number of axes 6
Mounting position Floor; Ceiling; Wall; Desired angle
Footprint 179 mm x 179 mm
Weight approx. 26.5 kg
Protection rating IP40
Controller KR C4 compact
Motion range
A1    ±170 °
A2  -170 ° / 50 °
A3 -110 ° / 155 °
A4 ±175 °
A5   ±120 °
A6  ±350 °
Detailed Images
