Description

SMA RF Coaxial Connector SMB, BNC, TNC, MCX, MMCX,N-Type RF Connectors



Product Description

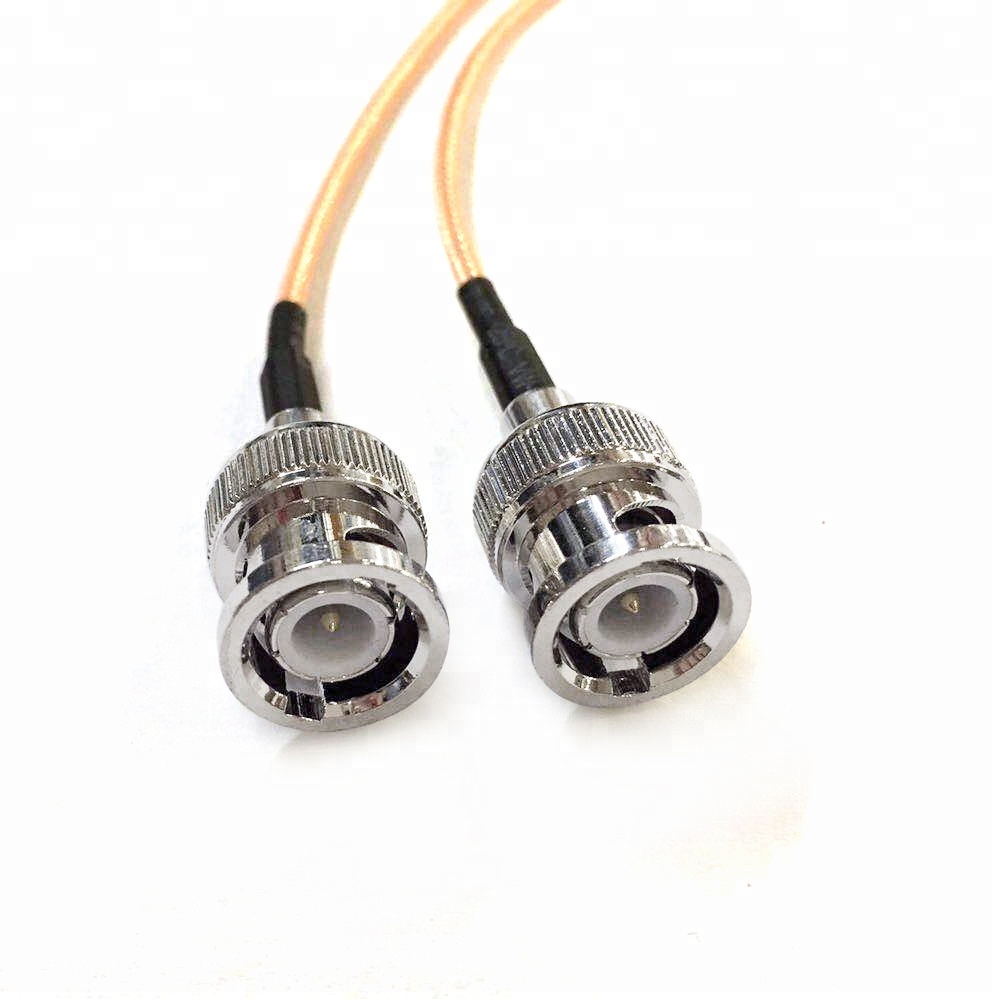

BNC RF cable assemblies are built and shipped worldwide.

RF cable assemblies in :



50 Ohm can be ordered using the following connector types:BNC, BNC Twinax, FAKRA, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF,



75 Ohm cable assemblies can be made with the following 75 Ohm connectors: BNC 75 Ohm, F 75 Ohm, N 75 Ohm, SMB 75 Ohm, SMC 75 Ohm, TNC 75 Ohm and Mini SMB 75 Ohm.



Available coax types coaxial RF cable assemblies include: RG141/U, RG142/U, RG174/U, RG178/U, RG179/U, RG180/U, RG187/U, RG196/U, RG213/U, RG214/U, RG216/U, RG217/U, RG218/U, RG219/U, RG223/U, RG225/U, RG302/U, RG303/U, RG316/U, RG316-DS, RG393/U, RG400/U, RG401/U, RG402/U, RG405/U, RG55/U, RG58/U, RG58-P, RG59/U, RG59-P, RG62/U, RG6/U, RG6-CATV, RG71/U, RG8/U.




Material Shell Brass, gold/nickel plated
male center contact Brass,gold plated
female center contacts Gold plated, beryllium copper
Insulators PTFE
Gaskets Silicone Rubber
Crimp Ferrules Copper Alloy,Nickel Plated
Electrical Characteristic impedance 50Ω, 75ohm
Frequency range DC-4GHz
Dielectric withstand voltage 1500V RMS at sea level
Insulation resistance ≥ 5000MΩ
Contact resistance Center contact ≤ 1.5MΩ
Outer contact ≤ 1.0MΩ
Durability Mating Cycles ≥ 500
Operating Temperature -55 to +155 Deg C
Packaging & Shipping

Packaging Details: RF connectors will be packed in one small bag and then put in one box.If you need custom package,  we will do as your requirest.



Delivery DetailAbout 7 workdays after payments.
