Description

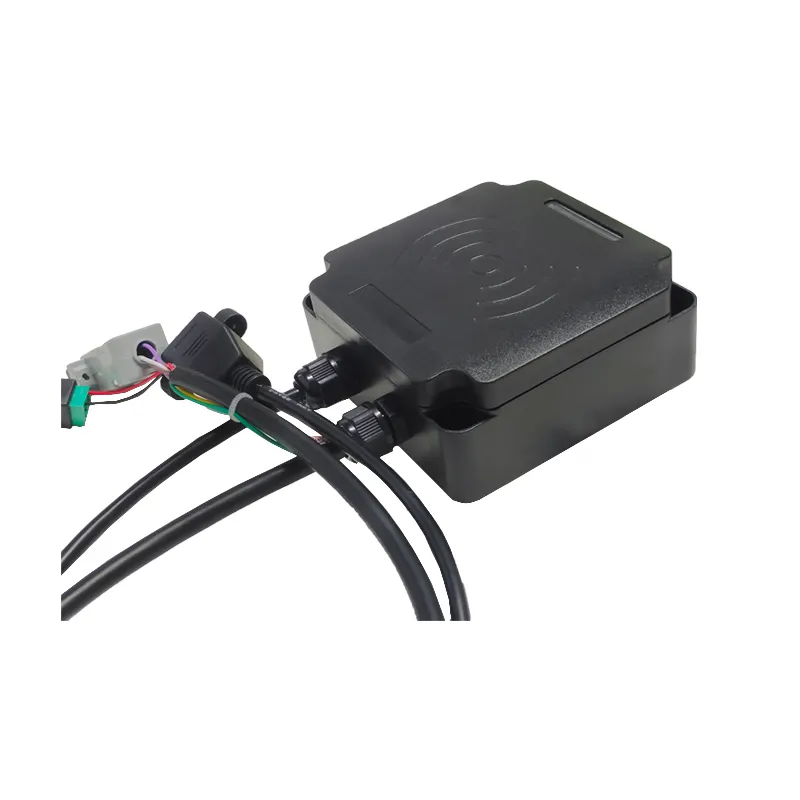

Name: UHF RFID Industrial Reader
Model Number: SW5401
Size: 95 x 95 x 40mm
Model Number: SW5401
Size: 95 x 95 x 40mm
Application:
Industrial production process control
Production flew-line management
Attendance management and more
AGV Car
Features:
1. Self-intellectual property;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 4dBi PCB Antenna with effect distance up to 0~4m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485 interface, RJ45;
10. Support ModBus.
* Effective distance depends on antenna, tag and environment.
Industrial production process control
Production flew-line management
Attendance management and more
AGV Car
Features:
1. Self-intellectual property;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 4dBi PCB Antenna with effect distance up to 0~4m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485 interface, RJ45;
10. Support ModBus.
* Effective distance depends on antenna, tag and environment.
Product mode explanation:
Model
|
Interface
|
|
SW5401
|
Standard(RS232, RS485,Trigger)
|
|
SW5401T
|
Standard with RJ45
|
|
-T: RJ45
|
Product Technical Parameters
Type
|
|
Type
|
UHF RFID Industrial Reader
|
Physical parameters
|
|
Dimensions
|
95x95x40mm
|
Net Weight
|
0.5Kg
|
Gross Weight
|
1Kg
|
Package size
|
23*16*13cm
|
Shell material
|
ABS
|
Color
|
Black
|
Environmental parameters
|
|
Operation Temperature
|
-20~+60℃
|
Storage Temperature
|
-40~+85℃
|
Humidity
|
5%~95% RH, Non-condensing
|
Waterproof Rank
|
IP65
|
Performance
|
|
Frequency
|
902~928MHz,860~868MHz(frequency customization optional)
|
Ant.
|
4dBi PCB Antenna
|
RF Power
|
0 - 26dBm
|
Read Distance *
|
0-4m * Effective distance depends on antenna, tag and environment.
|
Write Distance *
|
0-2m * Effective distance depends on antenna, tag and environment.
|
Read Rate
|
200cnt / second
|
Read Type
|
ISO18000-6C(EPC Gen2)
|
Reading Prompt
|
Buzzer
|
Working Voltage
|
DC +9 - 24V, 6W
|
Work Mode
|
Active mode, Answer mode, Trigger mode, Password mode
|
Communication
|
RS232, RS485, RJ45,WiFi,4G
|
Net
|
RJ45 support TCP Client/Server, Modbus, DNS, DHCP.
HTTP Protocol(Optional), MQTT(Optional), LLRP(Optional) |
SDK
|
|
SDK
|
Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android, Modbus.
|
