Description
Single Channel 12V/10A Ble Relay Switch Module Mobile Phone Ble Remote Control IOT Ble Relay Module
Product Description
1. Summarize

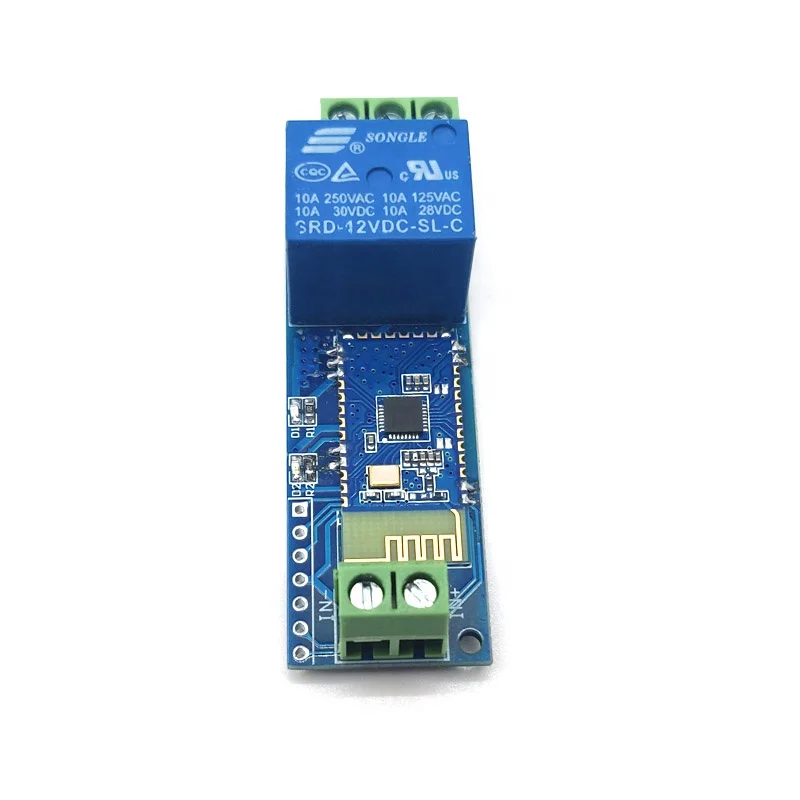

12V ble relay board include single channel 12V/10A relay module and SPP-C ble serial port slave module, Can be sent via mobile phone APP commands to control the relay switch.
2. Functional features
(1) Onboard SPP - C ble serial port slave module, with wireless control function.
(2) Onboard 12 v,10 A / 250 V AC 10 A / 30 V DC relay, relay long life can absorb 100000 times in a row.
(3) Module with diode effusion protection, short response time.
(4) Ble status indicator (flashes slowly when not connected, and stays on when connected) and relay status indicator (lights up after closing)
(5) Control distance 10m (open environment)
(2) Onboard 12 v,10 A / 250 V AC 10 A / 30 V DC relay, relay long life can absorb 100000 times in a row.
(3) Module with diode effusion protection, short response time.
(4) Ble status indicator (flashes slowly when not connected, and stays on when connected) and relay status indicator (lights up after closing)
(5) Control distance 10m (open environment)
Product Paramenters
|
Follow the ble 2.1 + EDR specification
|
||
|
Module working voltage VCC
|
DC 12 v
|
|
|
DC control maximum voltage
|
DC30V
|
|
|
Exchange control maximum voltage
|
AC250V
|
|
3. Introduce of hardware
Size: 20mm*62mm
|
4. The basic function and instructions
|
||
|
IN +
|
DC 12v postive power supply
|
|
|
IN -
|
DC 12v Ground
|
|
|
COM
|
Common end
|
|
|
NO
|
relay normally open interface, relay and impending, before and after absorption and COM sub.
|
|
|
NC
|
relay normally closed interface, relay and with COM nipple, before and after the impending.
|
|
Basic instructions:
After the correct connection, install the APP on the Android phone, search for the Ble device and connect. The pairing password is 1234, long press the gray box in the interface to add the serial port command, enter the name and content of the command (the command content is A00101A2, open the relay/command When the content is A00100A1, turn off the relay) and choose to send in hexadecimal form, and then click the corresponding box to control the switch of the relay. You can also download other Ble APPs in the application store and send commands to control.
NOTE
This relay only support Android phone system, do not support IOS.
Details Images
