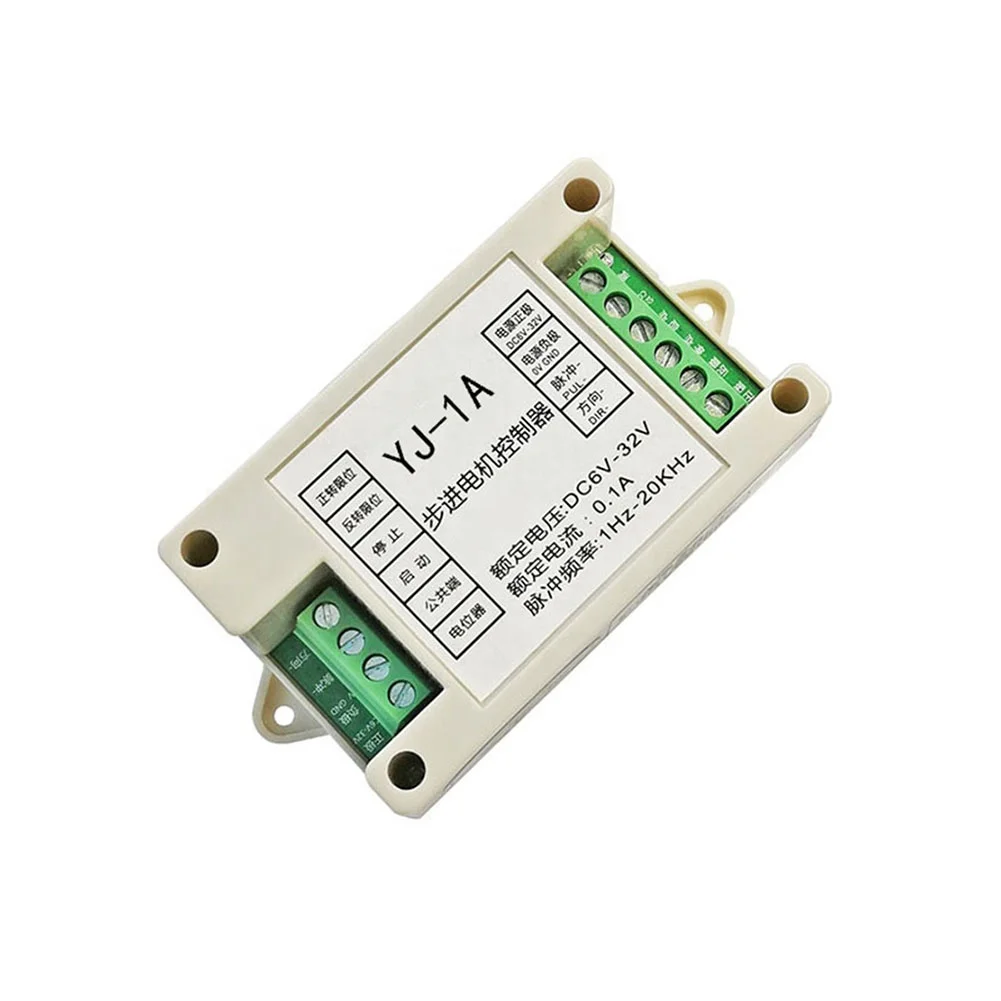

Single Axis Servo Motor Speed Controller Driver Board Stepper Motor Speed Regulating Controller Pulse Generator
Product Description
An economical stepper motor controller. The controller uses imported original high-speed smart chips as the platform, which has stability, reliability and strong anti-interference. It is suitable for various factory sites with harsh environments. The controller is suitable for sensor-controlled reciprocating motion control, fixed-length control, speed control, etc.
Specification
|
1
|
Ultra-wide voltage input: DC5-32V
|
|
2
|
Multiple protection functions: reverse connection protection, overvoltage protection, overcurrent protection
|
|
3
|
Speed control performance: automatic switching between onboard potentiometer speed control and external potentiometer speed control
|
|
4
|
Acceleration and deceleration: optimized S-shaped acceleration, with immediate stop/deceleration stop function
|
|
5
|
Output frequency: The maximum output frequency is 20KHz.
|
|
6
|
Input and output: All input and output are isolated by optocoupler, and the output is negative pulse. The input signal is active at low level.
|
Installation Instructions
Function setting
Control application 1: (automatic round trip mode) 1 The equipment runs back and forth between point A and point B. After the equipment is powered on, an external trigger starts operation. After the equipment runs to the forward limit of point A, it automatically runs in reverse to the reverse limit of point B, and then runs forward to point A, so it runs back and forth. The motor stops running until it is triggered. Parameter setting: 1. Set SW1=OFF, SW2=OFF (automatic round trip mode) 2. Onboard speed regulation or external potentiometer, adjust the appropriate speed Control application 2: (Single trigger mode) The equipment stops after going from point A to point B. Start the device again and stop from point B to point A. After the device is powered on, the external trigger starts to run. The device starts from point A. When the device runs to the forward limit of point B, the device stops running. If it starts again, the device is triggered from point B to point A, and the device stops. Start A->B to stop, and start the movement process of B->A to stop. If the stop is triggered while the equipment is running, the motor will stop running immediately. Parameter setting: 1. Set SW1=OFF, SW2=ON (single trigger mode) 2. Onboard speed regulation or external potentiometer, adjust the appropriate speed
Control Application 3: (Single Round Trip Mode) The equipment returns from point A to point B and then returns to point A to stop. After the equipment is powered on, the external trigger starts operation. The equipment starts from point A. When the equipment runs to the forward limit of point B, the equipment rotates in the reverse direction. When it reaches point A, the motor stops. Complete an A->B->A exercise process. If the stop is triggered while the equipment is running, the motor will stop running immediately. Parameter setting: 1. Set SW1=ON, SW2=OFF (single round trip mode) 2. Onboard speed regulation or external potentiometer, adjust the appropriate speed
Control application 4: (jog mode) Completely, the external switch controller starts and stops, forward and reverse. After the device is powered on, the low-level motor at the start input terminal is turned forward and the low-level is cancelled, and the motor stops. Give the low-level motor to the stop input terminal to run in reverse, and the low-level is cancelled, and the motor stops. Parameter setting: 1. Set SW1=ON, SW2=ON (jog mode) 2. Board speed control or external potentiometer, adjust the appropriate speed
Control Application 3: (Single Round Trip Mode) The equipment returns from point A to point B and then returns to point A to stop. After the equipment is powered on, the external trigger starts operation. The equipment starts from point A. When the equipment runs to the forward limit of point B, the equipment rotates in the reverse direction. When it reaches point A, the motor stops. Complete an A->B->A exercise process. If the stop is triggered while the equipment is running, the motor will stop running immediately. Parameter setting: 1. Set SW1=ON, SW2=OFF (single round trip mode) 2. Onboard speed regulation or external potentiometer, adjust the appropriate speed
Control application 4: (jog mode) Completely, the external switch controller starts and stops, forward and reverse. After the device is powered on, the low-level motor at the start input terminal is turned forward and the low-level is cancelled, and the motor stops. Give the low-level motor to the stop input terminal to run in reverse, and the low-level is cancelled, and the motor stops. Parameter setting: 1. Set SW1=ON, SW2=ON (jog mode) 2. Board speed control or external potentiometer, adjust the appropriate speed
