Description

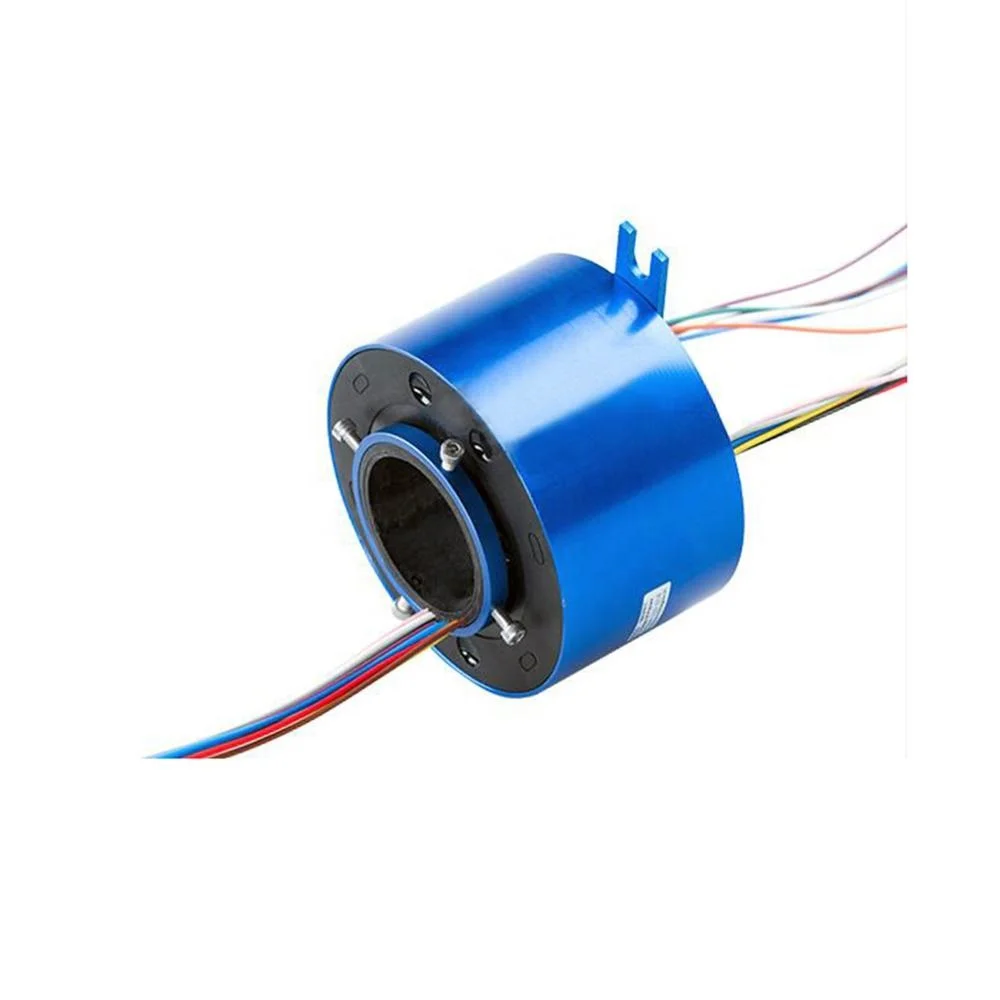

Signal Power Continued 2/4/6/12 Road Collector Conductive Hollow Slip Ring Electric Motor Slip Ring Rotating Connector
Product Description
Parameter
Product Name: Through Hole Slip Ring
Speed: 250 rev / min
Protection level: IP54
Insulation resistance: 500MQ@500VDC
Working life: ≥ 5 million rpm
Bearing: high precision ball bearing
Wire Specifications: Please consult us
Mechanical vibration: MIL-SID-810E
Number of channels: 1-36
Rated current: 10A Rated voltage: 380V
Contact material: precious metal
Housing material: engineering plastics
Torque: 0.01N.M
Working temperature: -40 ° C ~ +80 ° C
Relative humidity: 60%
Wire length: 300mm
Default send Inner hole 5mm OD 22mm 12 way 2A. if need other, please contact us
Product features
1
using gold-gold contact points to ensure stability and service life, mainly used in civilian, commercial areas
2
smooth operation, compact structure, low torque, compatible with data bus protocol
3
The stator wire and the rotor wire correspond to the use of colored wires to simplify the circuit connection.
4
the conductive ring is designed with 90 degree angle V line groove, with smooth rotation, low torque and low electrical noise
5
the product's overall structure, advanced fiber brush technology, branch temple power, signal mixed transmission
6
the life depends on the working environment and speed
Application field
Cloud
Electrical test equipment Manufacturing and processing control equipment Medical equipment CCTV security monitoring equipment robot Exhibition / display equipment Rotary table Small wind turbine Radar antenna
Details Images
