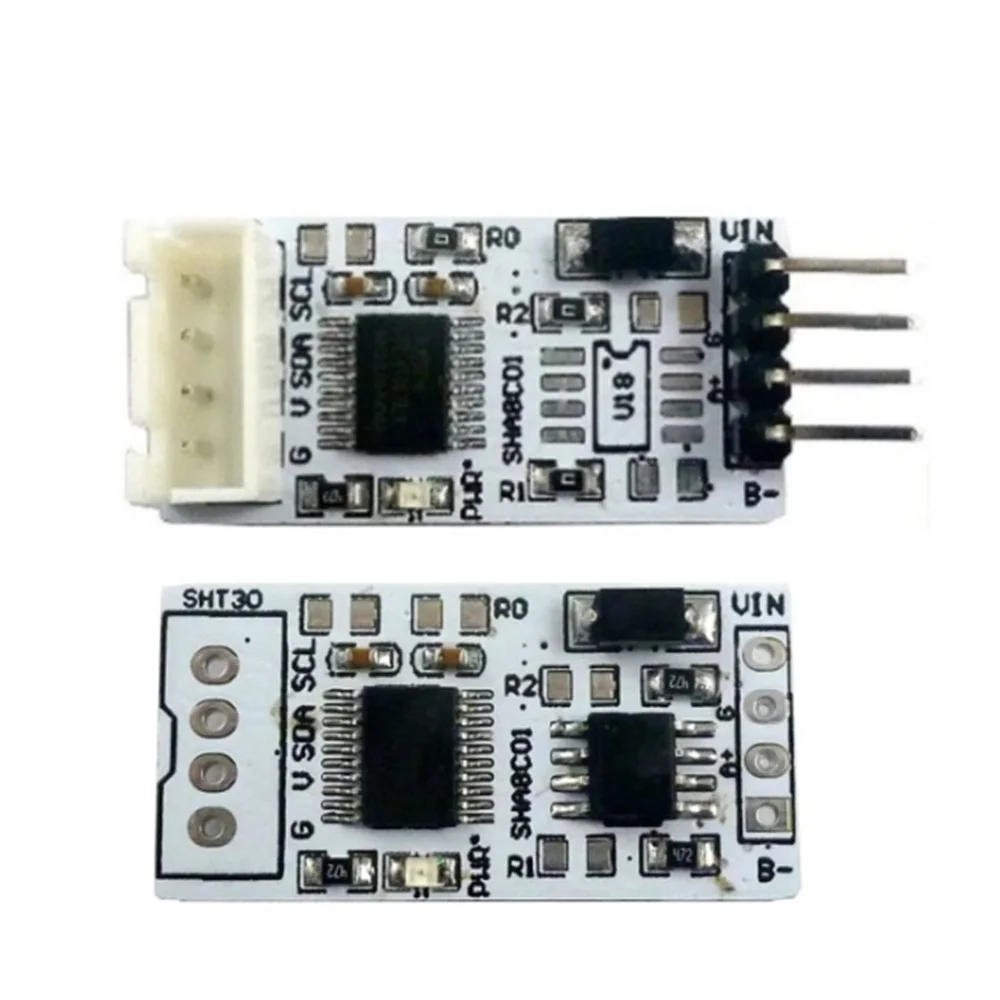

Working voltage: 5V version(DC 3.7-5.5V); 12V version(6-25V)
Working current: 7-13MA
MODBUS RTU protocol, 03 read command, 06 write command.
Serial port baud rate: 9600 (default), N, 8, 1
By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)
Adapted sensor: SHT30 temperature and humidity sensor
Temperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)
Humidity measurement range: 0-100%RH Accuracy: ±0.2℃; ±2%RH
Size: 30 X 15 X 15.8MM
Weight: 2g
SHT30 sensor specifications:
Product model: TB446 SHT30
Working voltage: 2.5-5.5V DC
Output signal: IIC digital signal
Output interface: XH2.54 4P terminal block
Temperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)
Humidity measurement range: 0-100%RH
Accuracy: ±0.2℃; ±2%RH
IIC address: 0X44
Wire length: 30 cm
Weight: 15 grams
Shell material: ABS
