● Dedicated chip, unique serial number, difficult to copy. Durability without mechanic al failure, fully sealed structure resistant to harsh environments. ● Tag ID number: 10 bytes;
Description
Widely Application
Products Description
Note:This tag need working with our company RFID active reader ,others not support
● Reading: Compared with bar code, there is no need to scan in a straight line, the reading speed is faster, and multi-tag recognition and motion recognition can be performed; ● Security: Anti-tampering, encryption algorithm and authentication to ensure data security and durability;
● Reading Type: Read-only; ● Duration of use: large battery capacity and long service life 2-5 years (depend on the frequency send data) ; ● Waterproof: IP67; ● Reading Distance: Long range (150M (Open area ,stable with goods is 80M ); ● Anti-suddenness: Advanced anti-collision technology can identify more than 200 tags at the same time; ● High speed recognition: recognition speed can reach 60 km/h; ● High anti-interference: no special requirements for various interference sources on the site; ● Anti-electromagnetic interference: 10V/m 0.1 ~ 1000MHz AM, AM electromagnetic wave.
Product summary

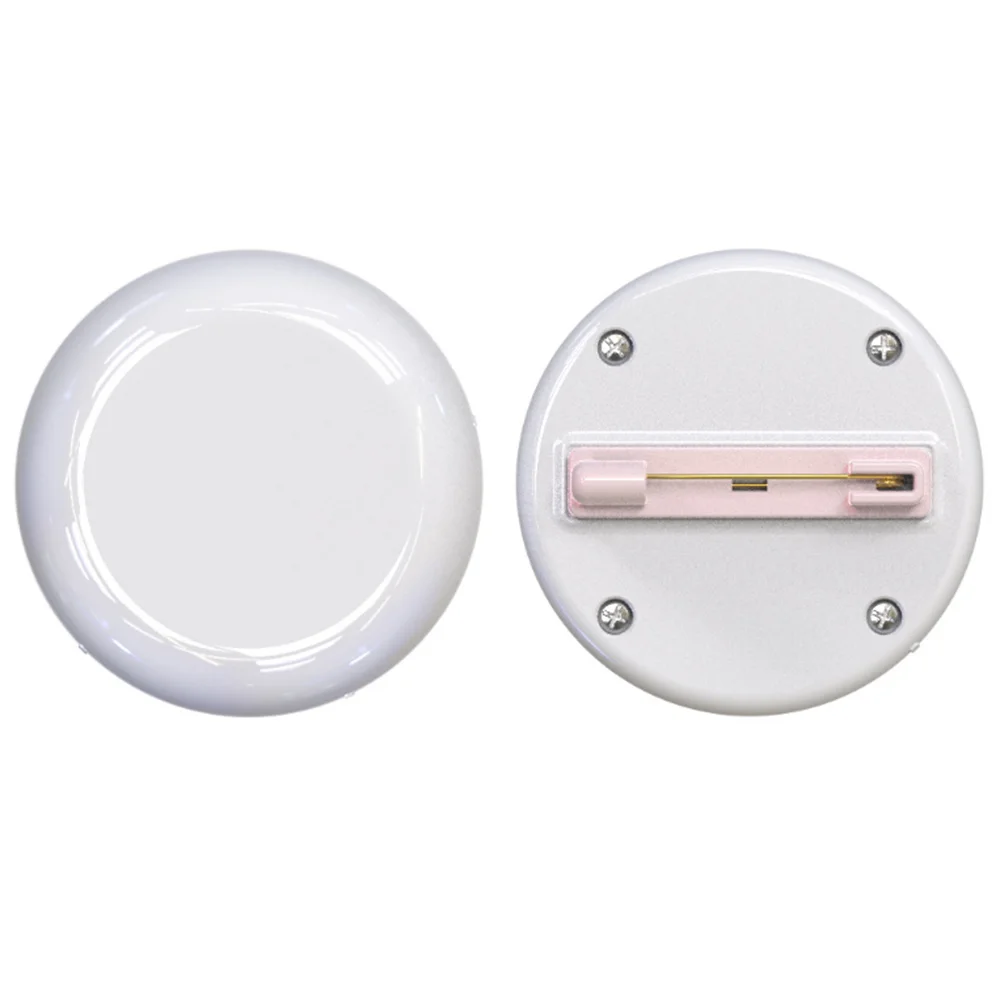

Round school badge tag can have multiple operating frequencies. 2.4GHz can be identified from a long distance, making it more secure. The tag emits signals spontaneously and can be recognized by RFID active reader without triggering. School LOGO and pattern can be printed according to customer requirements. This tag can be add 125Khz frequency, used a trigger to active the 2.4G work, so that it can much reduce the miss-reading possibility when too many tags move to active reader.
|
Physical Parameter
|
||||||
|
Size
|
Diameters of 38mm, thickness of 9mm
|
|||||
|
Material
|
ABS+PV
|
|||||
|
Color
|
White
|
|||||
|
Weight
|
9g
|
|||||
|
Packing
|
Corrugated box (50pcs / box) (can be customized)
|
|||||
|
Environmental Parameters
|
||||||
|
Working Humidity
|
<95%
|
|||||
|
Working Temperature
|
-25 ~ 70℃
|
|||||
|
Storage Temperature
|
-40 ~ 85℃
|
|||||
|
Protection Level
|
IP67 (Dust-proof and waterproof)
|
|||||
|
Performance parameter
|
||||||
|
Static (standby) working current
|
<1uA
|
|||||
|
Operating Voltage
|
3V
|
|||||
|
Battery
|
CR2450 X 1 (Battery can be replaced)
|
|||||
|
Working Current (Transmit signal)
|
12mA (Pulse mode)
|
|||||
|
Battery Life
|
3～5Year (theoretical value)
|
|||||
|
Collision Ability
|
>2000PCS
|
|||||
|
Transmit Time
|
Active 1 time per second / Passive 3 to 4 times per second
|
|||||
|
Transmit Power
|
4dBm (factory setting)
|
|||||
|
Working Mode
|
Read-only
|
|||||
|
Working Method
|
Active/Passive /Active-passive combination
|
|||||
|
Low/High Frequency
|
125K/13.56Mhz (Optional)
|
|||||
Precautions
● Do not put it into the fire or store it in a high temperature environment over 85 ℃; ● Do not use sharp tools to damage; ● Do not place it near corrosive articles; ● Do not change the parameters, specifications and models of components during maintenance; ● Do not put the tag in a closed space; ● Do not collide with the tag violently; ● Do not use heavy objects to squeeze the tag.
Definition of data format sent back by the reader
Details Images
Workshop
FAQ
Question 1:
Question 3:
Question 6:
Is there stock for your products?
Answer: There is stock for different products in different periods. Please tell us what products you need, then we will check the stock for the products you need.
Question 2:
Question 2:
Do you offer samples?
Answer: For samples in stock, samples can be arranged directly and freely. For samples out of stock, new production needs to be arranged, and there is sample charge.
Answer: For samples in stock, samples can be arranged directly and freely. For samples out of stock, new production needs to be arranged, and there is sample charge.
Question 3:
How can the artwork be offered? Can do OEM and LOGO brand ?
Answer: Yes ,we support OEM and LOGO custom printing ,the Artwork can be sent to us by AI, or PSD,or CDR. But it has to be in vector graphics to ensure the quality of printing.
Question 4:
Answer: Yes ,we support OEM and LOGO custom printing ,the Artwork can be sent to us by AI, or PSD,or CDR. But it has to be in vector graphics to ensure the quality of printing.
Question 4:
What is MOQ? Can we order on pcs for the test ?
Answer: The MOQ is 1 pcs. For the 2.4G active tag usually different manufacture use Private communication protocol ,so if you need the samples to test ,also need to take the reader together can work well .
Question 5:
Answer: The MOQ is 1 pcs. For the 2.4G active tag usually different manufacture use Private communication protocol ,so if you need the samples to test ,also need to take the reader together can work well .
Question 5:
Can you do the whole solution including the hardware and software ?
Answer: Yes , we can . if you have the ability to docking/developing the software we will offer you the SDK /API /DEMO and communication protocol and user guide even the technical support . If you need we do the whole system ,we will done based on your requirement
Answer: Yes , we can . if you have the ability to docking/developing the software we will offer you the SDK /API /DEMO and communication protocol and user guide even the technical support . If you need we do the whole system ,we will done based on your requirement
Question 6:
What shipping way is adopted?
Answer: By Express, Air, Sea.Depends on clients' specific requirements and order quantity.
Question 7:
Answer: By Express, Air, Sea.Depends on clients' specific requirements and order quantity.
Question 7:
What is the lead time?
Answer: Generally, the shipping time is 3-5 working days if have stock here
Answer: Generally, the shipping time is 3-5 working days if have stock here
The production time is different indifferent periods for different orders. Please consult us according to your specific requirements of your order.
Question 8:
Question 8:
What payment do you adopt?
Answer: Western Union, Money Gram TT, Paypal. Paypal is just accepted for small amount.
Answer: Western Union, Money Gram TT, Paypal. Paypal is just accepted for small amount.
