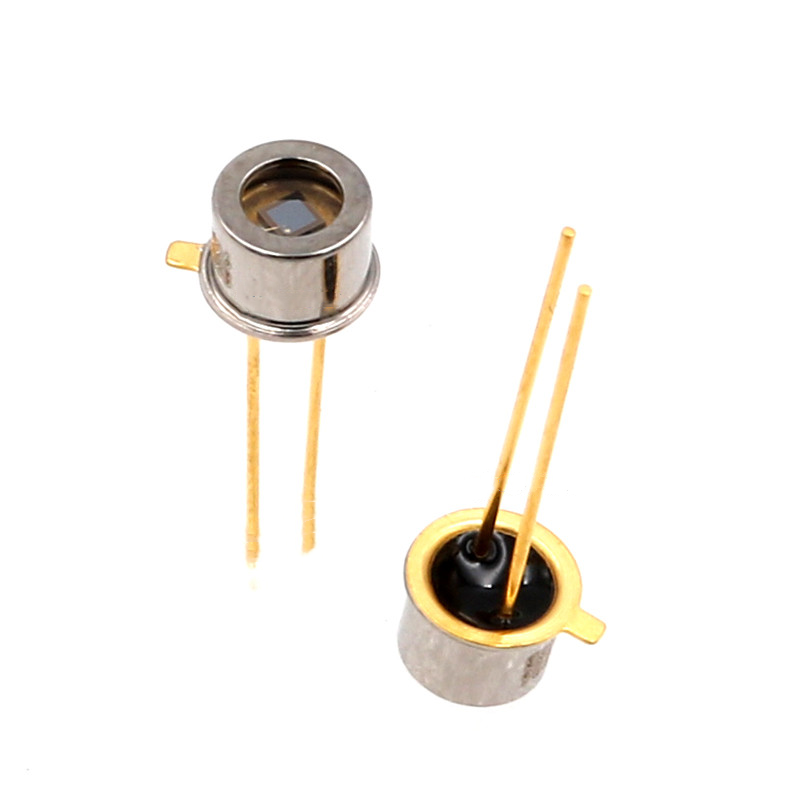

S1226-5BQ Silicon photodiode TO-5 720nm S1226-5BQ S1226-5BK For visible to near infrared silicon photodiodes

sensor module
$24.00
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Product Description
Photosensitive area
2.4 × 2.4 mm
Number of elements
1
Package
Metal
Package category
TO-5
Cooling
Non-cooled
Reverse voltage (max.)
5 V
Spectral response range
190 to 1000 nm
Peak sensitivity wavelength (typ.)
720 nm
Photosensitivity (typ.)
0.36 A/W
Dark current (max.)
5 pA
Rise time (typ.)
0.5 μs
Terminal capacitance (typ.)
160 pF
Noise equivalent power (typ.)
2.5×10-15 W/Hz1/2
Measurement condition
Ta=25 ℃, Typ., Photosensitivity: λ=720 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted
