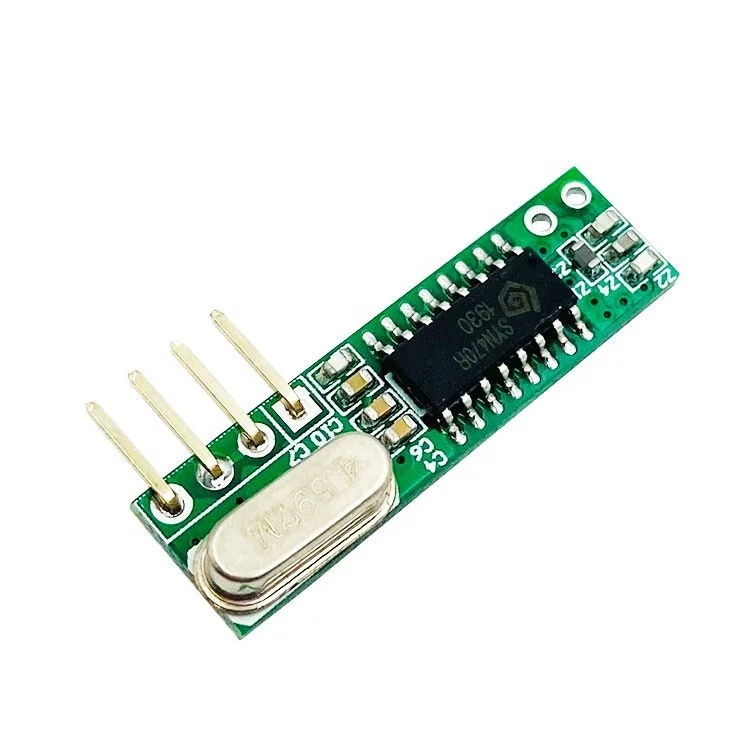

RXB22 ASK superheterodyne wireless receiving module, using imported wireless receiving chip, is a cost-effective ISM band ASK receiving module. It has high receiving sensitivity and low price. It can be widely used in low-end products to replace super-regenerative modules, improve the stability and reliability of low-end wireless products, and strengthen product competitiveness. The data port can be directly connected to the I/O port of the single-chip microcomputer or the data signal input end of the wireless decoding chip, which can directly realize the function of wireless signal to data reception. Makes the wireless product development and production process easier and faster.
Application
(1) Car remote control door switch (RKE) (2) Remote control door opener (3) Wireless security alarm (4) Wireless doorbell (5) Wireless controller (6) Wireless data transmission
Specification
item
value
1
The receiving sensitivity reaches -105 to 107dBm;
2
Working frequency: 315 MHz
3
Power supply voltage input range: 3.3V5.5V;
4
Low power consumption, 5.0V @ 433.92MHz, 3.8-4.1mA; 5.0V @315MHz, 2.5-2.9mA
5
Good selectivity and stray radiation suppression, easy to pass CE/Fcc international certification
6
Good local oscillator radiation suppression ability, multiple receiving modules can work together (that is, single-transmit and multiple-receive) and will not interfere with each other, and use together does not affect the receiving distance
7
Temperature range: -30-85℃, it can work normally even in harsh environmental temperature
