4ch optoelectronic isolation digital input channel (NPN Low level input)
4ch Darlington tube digital output channel (ULN2803 NPN output)
6ch 0-10V Voltage Analog Input
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
2 Specification
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-30MA
3 4x optically isolated input ports (NPN active low)
4 4x Darlington tube outputs (ULN2803 NPN output), the maximum load current of each channel is 300MA
5 6x 0-10VVoltage Analog Input
6 RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC
7 Standard MODBUS RTU command (function code, 05/06/15/16 Write, 01/02/03 Read )
8 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
9 Parity bits: None (default) /Even /Odd
10 Installation method Standard DIN rail installation
11 Dimensions 125×70×30mm
12 Weight: 115 grams

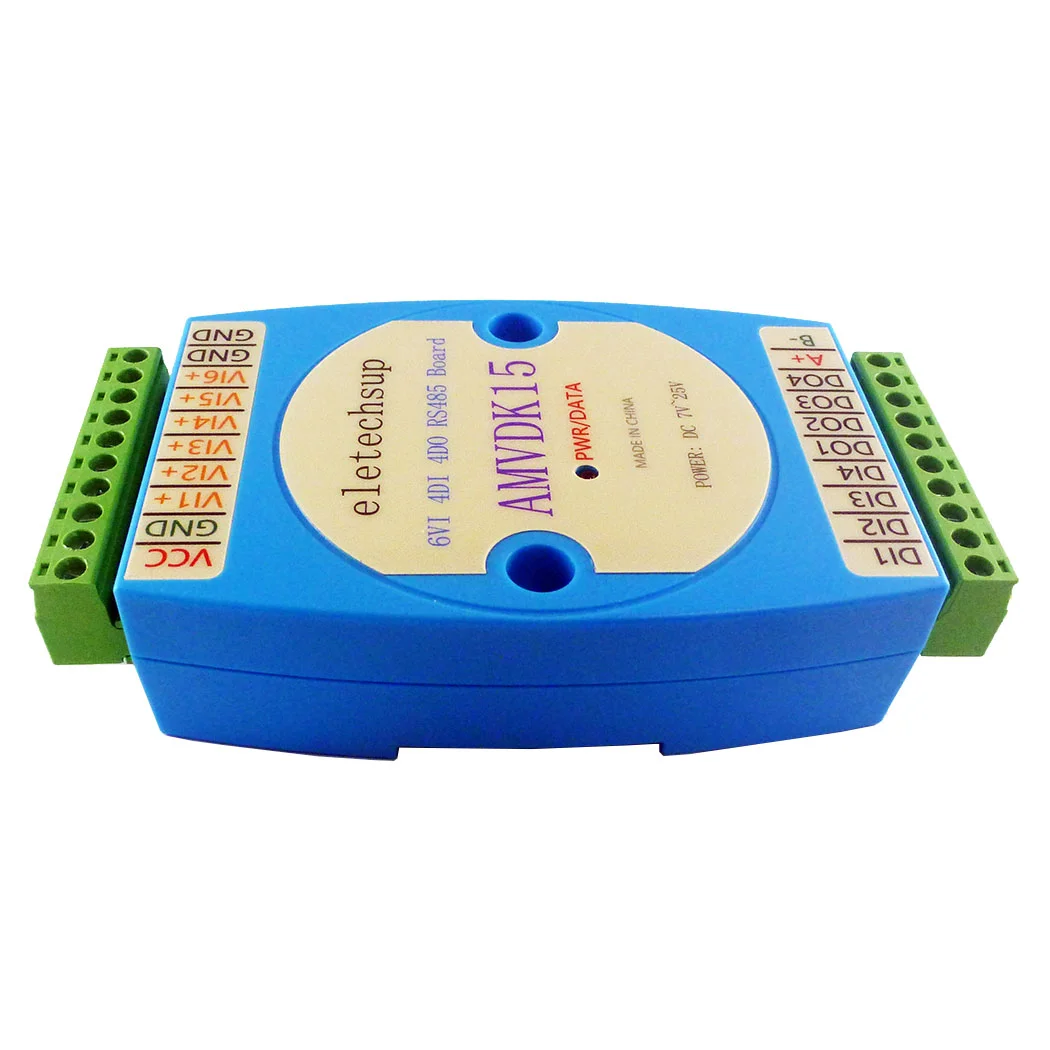

3 Interface definition:
VCC : Power input+
GND: Power input-
VI1+: Voltage input channel 1
VI2+: Voltage input channel 2
VI3+: Voltage input channel 3
VI4+: Voltage input channel 4
VI5+: Voltage input channel 5
VI6+: Voltage input channel 6
DI1 : Digital input channel 1
DI2 : Digital input channel 2
DI3 : Digital input channel 3
DI4 : Digital input channel 4
DO1: digital output channel 1
DO2: digital output channel 2
DO3: digital output channel 3
DO4: digital output channel 4
A+: RS485 signal A+
B-: RS485 signal B-
For more information, please contact me
Application
PLC Output expansion board
0-5V/0-10V Sensor
Smart Home,Home Automation ,Wiser Home;
Automatic curtain control
1 Digital Input Wiring Diagram
2 Digital output wiring diagram
Note: The Darlington tube has only two states of ''high resistance'' and ''conduction'', and the output level cannot be measured with a multimeter.
