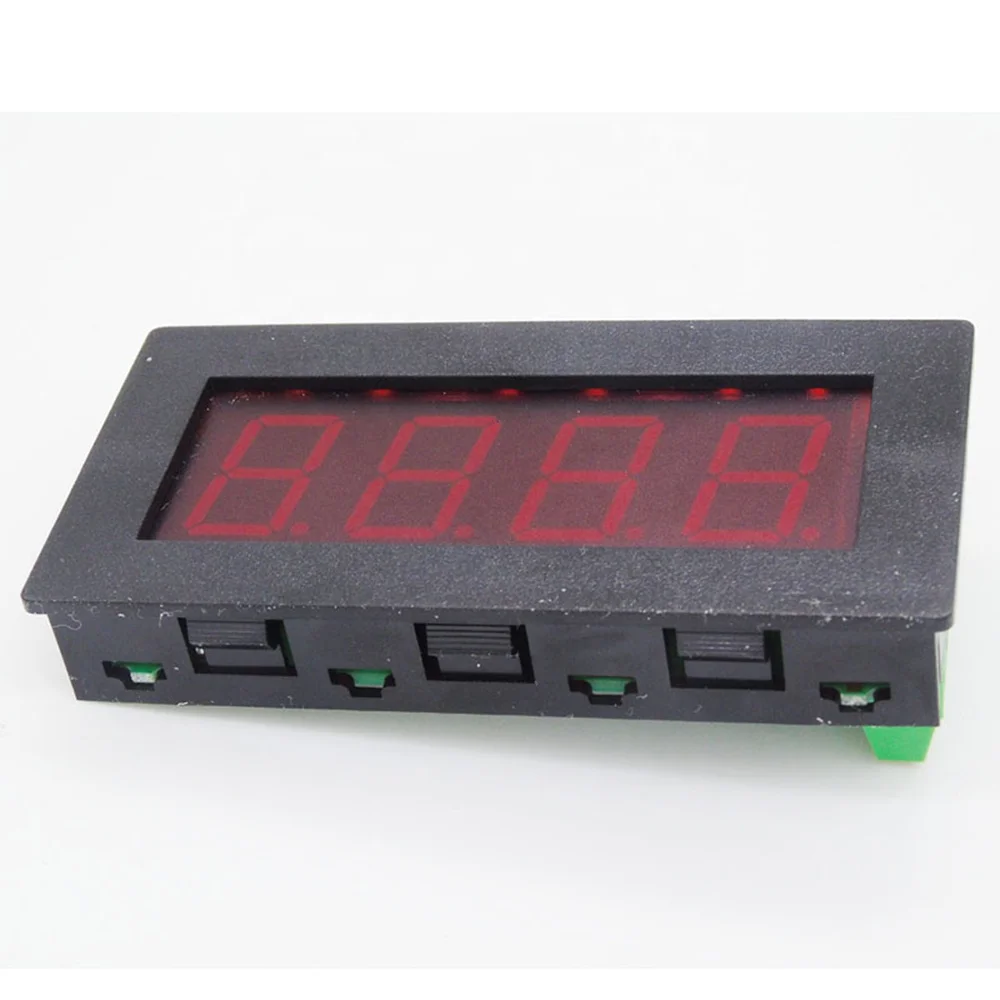

RS485 Modbus Meter 0.8 inch Serial 4 Digit 7 Segment Display Digital Tube Display MODBUS-RTU Communication With Shell
Product Description

Features

1. Transmit display data via RS485 2. The cover of the meter head can be easily embedded on the top of the device 3. Four-digit red digital tube display, brightness can be set 4. The position of the decimal point can be set, and the baud rate can be set 5. The interface adopts KF128-5.08 high quality environmental protection copper terminal 6. Wide range of uses and powerful functions
Specification
item
value
Digital tube size
0.8 inch
Display digits
4 bit
Operating Voltage
DC5~36V
Power indicator
1 way red LED indication
Product Size
Outer diameter size: length 96mm * width 48mm
Window size: length 75mm*width 28mm
Hole size: length 92mm*width 45mm
Display color
red
Accuracy Class
VCC: positive power supply
GND: negative power supply
COM: negative power supply
D+: RS485 data communication A+
D-: RS485 data communication B-
Communication parameters
Baud rate: 1200bps/2400bps/ 4800bps/ 9600bps/19200bps/ 38400bps/57600bps/ 115200bps Default: 9600bps, N, 8, 1
Protocol
Modbus-RTU
Installation Instructions

Instruction example and detailed explanation

0. Display data (00 32 decimal is 50, and negative numbers are represented by the inverse code. If ff fe is sent, it will display -001) Address: 0x01 Function: 0x06 Register address high: 0x00 Register address low: 0x00 Data high: 0x00 Data low: 0x32 CRC check: 0x08 / 01F Slave response Address: 0x01 Function: 0x06 Register address high: 0x00 Register address low: 0x00 Data high: 0x00 Data low: 0x32 CRC check: 0x08 / 0x1f
1. Set the position of the decimal point (the range is 01-03, 01 is the decimal point after the tens digit, 02 is the decimal point after the hundreds digit, 03 is the thousand digit, and only the tens and hundreds digit after the negative number can be displayed)

Address: 0x01 Function: 0x06 Register address high: 0x00 Register address low: 0x01 Data high: 0x00 Data low: 0x01 CRC check: 0x19/ 0xCa Slave response Address: 0x01 Function: 0x06 Register address high: 0x00 Register address low: 0x01 Data high: 0x00 Data low: 0x01 CRC check: 0x19/ 0xCa
