Description

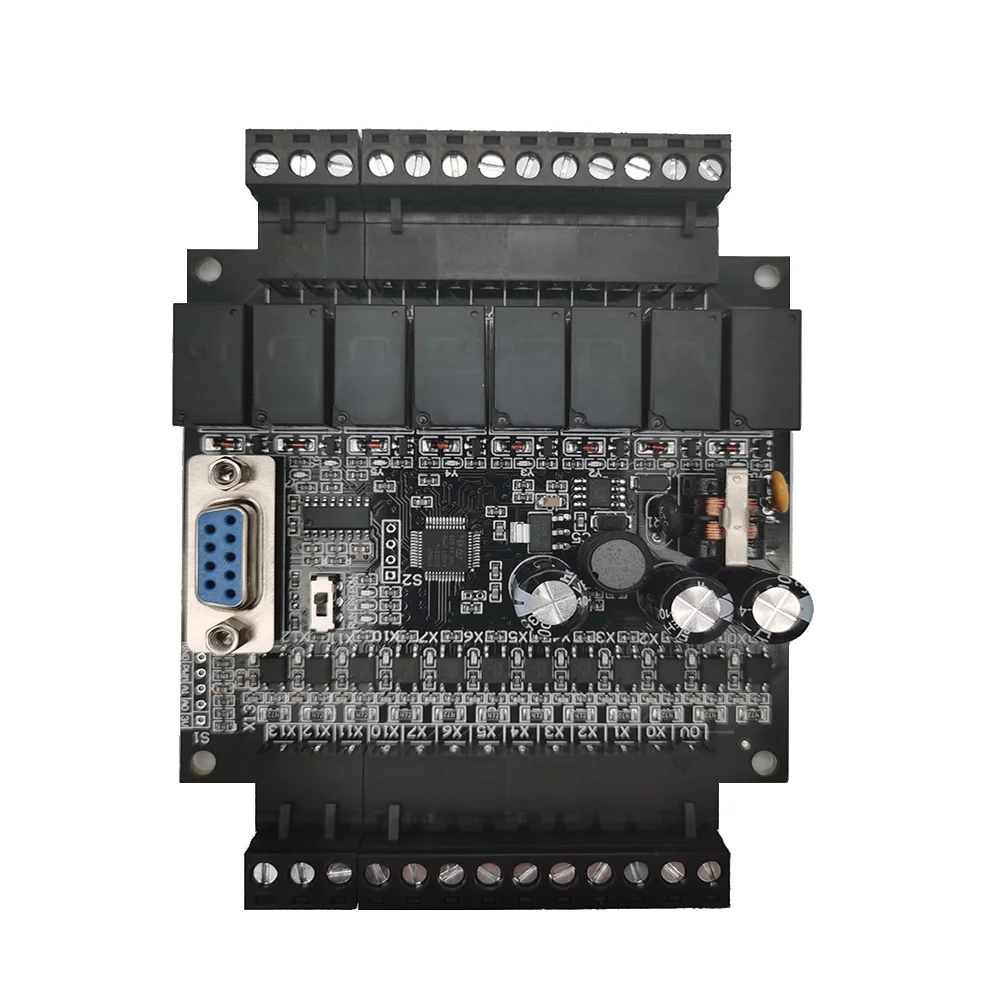

RS232 TTL FX2N 20MR 20MT Industrial PLC Programming Controller Programmable Logic Controller Board PLC Control Panel
Product Description
Support Fx2N following commands 1. Basic instructions: LD,LDI,AND,ANI,OR,ORI,INV,OUT, (OUTT,OUTC),SET,RST,ANB,ORB,LDP,LDF,ANDP,ANDF, (OUTT,OUTC),SET,RST,ANB, ORB,LDP,LDF,ANDP,ANDF,ORP,ORF,PLS,PLF,MPS,MRD,MPP,RET,NOP,END. 2. Step instruction: STL: supports up to 8 parallel branches, and different status numbers can have double coils. 3. Contact comparison instructions LD>=,LD<=,LD>,LD<,LD<>,LD=,AND>=,AND<=,AND>,AND<,AND<>,AND=,OR>= ,OR<=,OR>, OR<,OR<>,OR=. 4. Transfer and compare instructions: MOV, CML, CMP, ZCP, FMOV. 5. Four arithmetic instructions: ADD,SUB,MUL,DIV,INC,DEC,WAND,WOR,WXOR,NEG. 6. Floating point operation instructions: ADD,SUB,MUL,DIV,FLT,DFLT,INT,DINT,DESQR,EDCMP. 7. Trigonometric function operation instructions: SIN, COS, TAN, SQR, DSQR. 8. Circular shift instructions: ROR, ROL, RCR, RCL. 9. Data processing instruction: ZRST. 10. Program flow instructions: CJ (maximum 128 addresses), CALL (maximum 8 levels of nesting, 128 subroutines), SRET, FEND, WDT, FOR (maximum 7 levels of nesting), NEXT. 11. Convenient command: ALT. 12. High-speed processing instructions: REF, REFF, PWM (support Y0, Y1 each way, can be used at the same time), PLSY (support Y0, Y1 each way), PLSR (support Y0, Y1 each way) pulse frequency 5HZ-20KHZ. This product supports the 32-bit instructions in the Fx2N function instructions, including D instructions and P instructions, that is, it supports adding D before the function instruction or adding P after it, such as DMOV or MOVP.
Specification
|
Description of device address
|
||||||||
|
Auxiliary relay
|
General use
|
M0-M511
|
||||||
|
Kepp use
|
M512-M3071
|
|||||||
|
Sepcial use
|
M8000-M8255
|
|||||||
|
Counter
|
16-bit incremental mode
|
C0-C15 0-32767
|
||||||
|
16-bit hold mode
|
C16-C99 0-32767
|
|||||||
|
32-bit bidirectional hold
|
C200-C234-2147483648-+214848347
|
|||||||
|
32-bit special counter
|
C235-C247 -2147483648-+214848347
|
|||||||
|
Status
|
General use
|
S0-S127
|
||||||
|
Keep use
|
S128-S999
|
|||||||
|
Pointer
|
CJ CALL branch
|
P0-P127
|
||||||
|
Timer
|
100ms
|
T0-T99 0.1-3276.7s
|
||||||
|
10ms
|
T200-T244 0.01-327.67s
|
|||||||
|
1ms
|
Cumulative T245-T248 0.001-32.767s
|
|||||||
|
10ms
|
Cumulative T250-T254 0.1-3276.7s
|
|||||||
|
Data Register
|
16-bit general purpose
|
D0-D511
|
||||||
|
16-bit reserved
|
D512-D998
|
|||||||
|
16-bit special
|
D8000-D8255
|
|||||||
|
16-bit index
|
Z0,V0
|
|||||||
|
Nested
|
Main control use
|
N0-N7
|
||||||
|
Constant 16 bits
|
Decimal number
|
-32767-+32768
|
||||||
|
Hexadecimal number
|
0-FFFF
|
|||||||
|
Constant 32 bits
|
Decimal number
|
-2147483648-+214848347
|
||||||
|
Hexadecimal number
|
0-FFFFFFFF
|
|||||||
