Description
Products Description

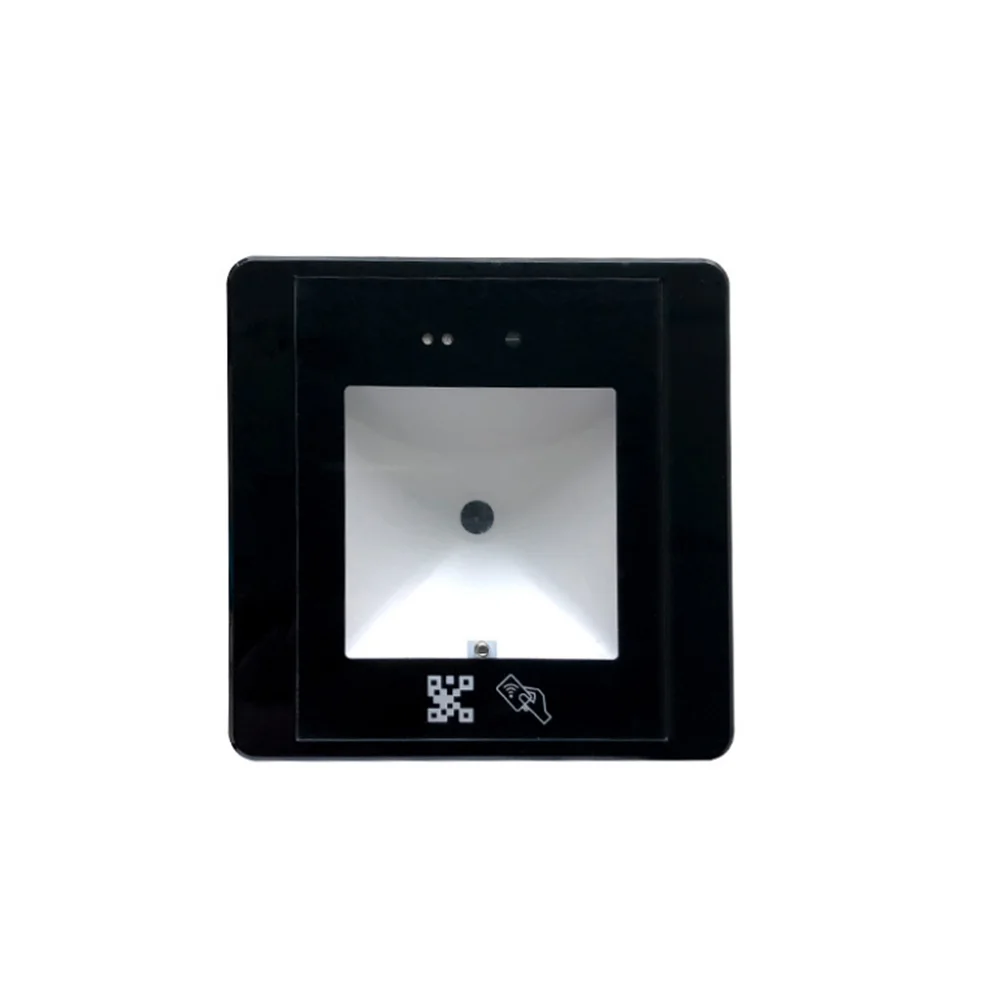

Two-dimensional code（QR） + RFID card reader is a new generation of intelligent card reader developed by our company. The product adopts standard 86-box industrial standard in appearance, has fast scanning speed, high recognition rate and strong compatibility.
It can connect any controller supporting Wiegand input, and is suitable for various application scenarios.management, scenic area tourist personnel management, community visitor accessAt present, it is widely used in business office building visitor entry personnel access control, visitor aircraft, smart home, etc. to achieve a perfect upgrade of management, administrative hall access control management, supporting gates, traditional card swiping system for various industries.
Dimensions
86mm×86mm×42mm
Weight
150g
Color
White And Black
Working voltage
DC8~12V ,Support Custom
Operating Frequency
13.56mhz
Operating Distance
2-5cm (RFID),QR code :1-20cm
Communication interface
RS232, RS485 TTL, Wiegand 26-34
Working current
800mA
Reading Speed
＜200ms
Operating System
WindowsXP/7/8/10）、Linux
Indicator lights
red working light, green feedback light, emerald green network light
Material
PC and tempered glass (scanner window)
Remarks
Insert sharp object into Reet hole behind the two-dimensional code reade and automatically restart and release the reader.
1. Data format :
USB: Out pot 8H10D (00 02 51 58 )
2. The serial port-485 output card number：
For example: The Card Number is :
1234567890
The reader output number :31 32 33 34 35 36 37 38 39 30 0D 0A
The first 10 bytes are physical card number 0D : return 0 A : line feeding
Note: (1) Do not connect the power supply to SPK + and SPK-port.
(2) When Wiegand outputs, the scanned two-dimensional code must conform to the 16 prohibition card number principle of 0-9/A-F combination, and the two-dimensional code conforms to the card number principle. The controller can receive the card number data; if the two-dimensional code does not conform to the card number principle, the controller can not receive the card number data.
(3) When Wigan outputs, the scanned two-dimensional code is recognized as 10-bit output by default.
Details Images
Widely Application
