Description
Product Application
Product Paramenters
|
Product Name
|
HLD4205 Intelligent Locker Main Control Board
|
|
Standard Power Supply
|
2.5A (Maximum) DC 12V-24V
|
|
Operating Temperature
|
-20 ～ +70ºC
|
|
User Configuration
|
Cloud server, Android/iOS APP DEMO source
|
|
Relative Humidity
|
10-90% RH (Non-condensing)
|
|
Serial Port
|
Three RS232 serial ports
|
|
Environment
|
LAN and Internet
|
|
Application
|
The main board is applied for the control system of storage cabinets and express cabinets, and the situations like remote electromechanical motor control and remote analog signal input detection. It also covers temperature and humidity detection, air dust detection, etc.
|
Product Description
-
-

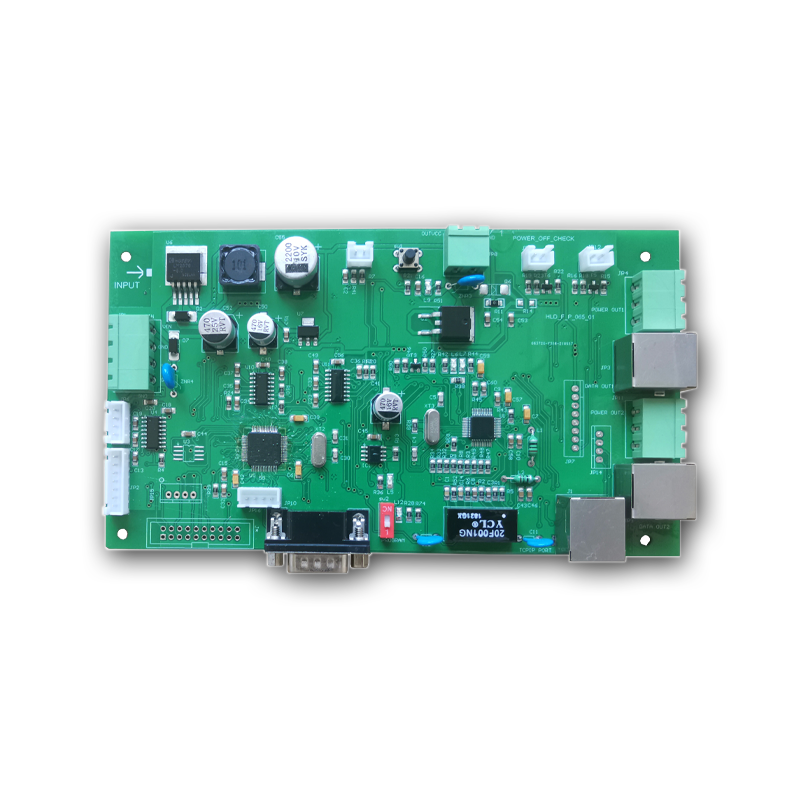

HLD4205 Intelligent Locker Main Control Board
HLD4205 is an industrial grade IOT control board for wired communication. The main board uses the wired network to communicate with the cloud platform, and the switching analog of relay on the main board, AD simulated data collection, IC card data collection, UHF label card data collection, and 5V/12V power supply can be controlled by using this main board. Its W5500 chip enables users to connect to the Internet in their applications by using a single chip(TCP/IP Stack, 10/100 Ethernet MAC, and PHY embedded). It also has three RS232 ports to fulfill the need for communication peripherals via serial ports.
Products Show
Product Usage
|
1
|
Serial port (9-pin male connector)
|
|
2
|
Wired network port (W5500, hardware network)
|
|
3
|
Two-way serial port (RJ45 port) +
Power output (12-24V output)
|
|
4
|
Two-way digital signal detecting port
|
|
5
|
5V power output control
|
|
6
|
12-bit AD simulated signal detection
|
|
7
|
Power input: DC 12V-24V
|
|
8
|
RFID and port for programmable serial screen
|
