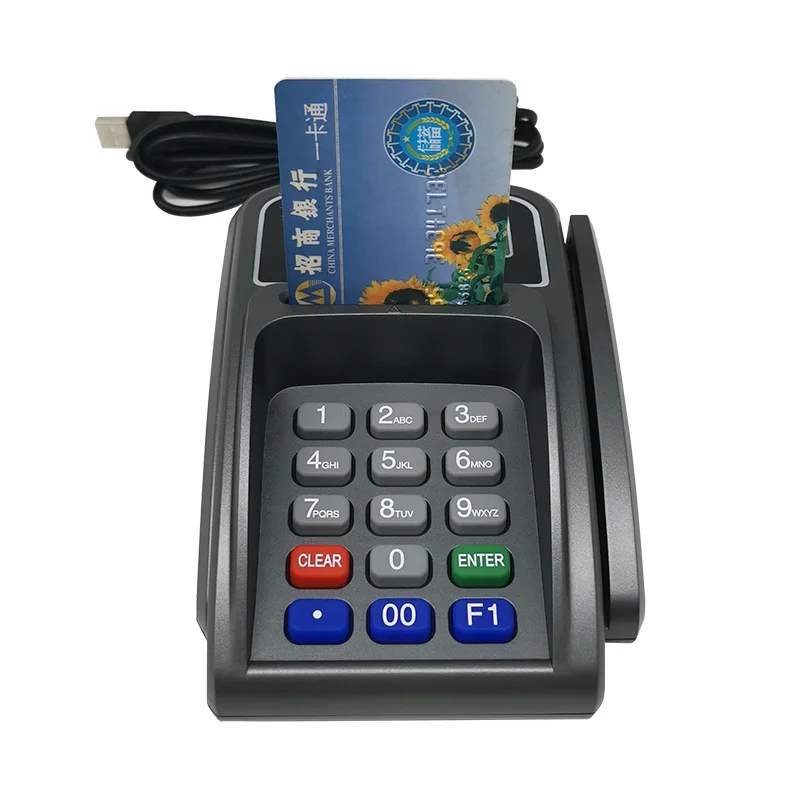

Mini Keypad with Smart Card Reader and Magnetic Card Reader
Weight
400g
Size
150mm*110mm*62mm
Temperature Scope
-20 to +60ºC
Card contact frequency
200,000 times
Card type
Supports an ISO7816 standard card size, can add SIM card size SAM deck which is suitable for GSM 11.11.
Working current
70mA
Port
USB (HID hassle interface) or RS232
Protocol
Support T=0,T=1 CPU card, Supports common memory cards. Communication speed can reach 115.200 bps at the same card.
Synchronization support contactless smart card which is correspond for ISO14443 Type A, Type B. Such as Mifare S50, Mifare S70, MF1ICL10, Mifare Pro, Mifare desfire, Mifare series, AT88RF020, Huahong 1102 etc.
Communication rate
T=0:9600-38400bps T=1:9600-115200bps
Color
As the pictures attached. Customized color is available.
Cable Length
2M
Status Indicator
Bi-color LED indicator, indicate power or communication status
Display
LCD, 122 * 32,2 rows 8 character display, support for backlight.
Keyboard
Support keyboard input, keyboard is with 15 keys. There are numeric keys of 0~9, Enter and Clear. Support 3DES encryption, pronunciation is available.
Storage
It provides 4K writable space and corresponding interface function. Device can set ID, it uses storage data for user.
Magnetic stripe card
Support 1 \ 2 \ 3-track magnetic stripe card reader
Operating system
Windows XP, 2003, Win 7, Win 8, Win 10, Unix and Linux
Other Features
Provide a common interface library. Can support multiple operating systems and language development platform. Support online upgrade feature.
