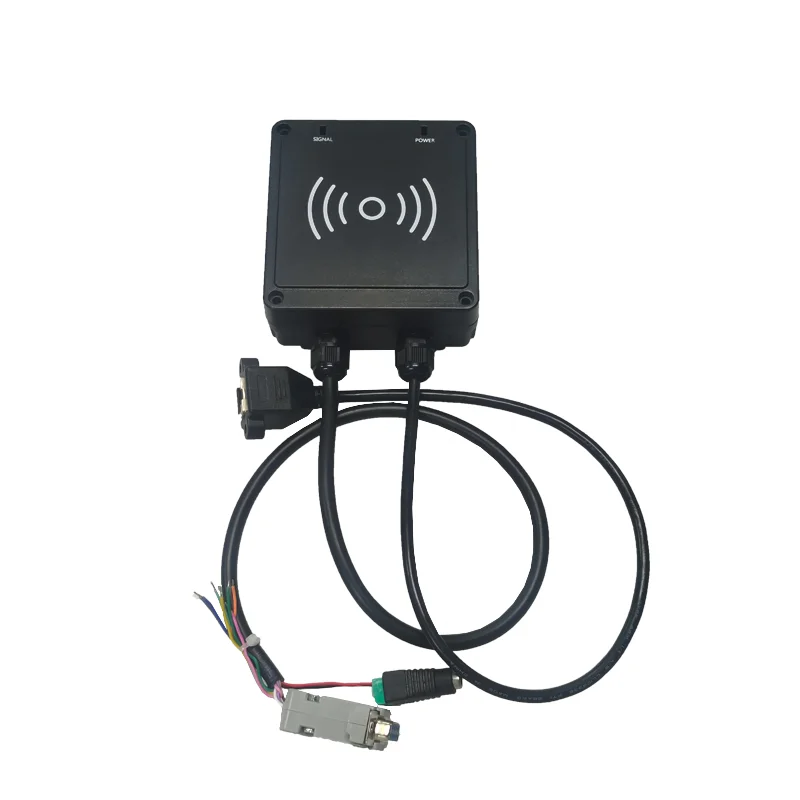

RS232 /485 UHF RFID Industrial Reader Desktop readers Direct connection to PLC and support ModBus RJ45 TCP Client Server--shop.rfid-life.com

$99.00
Special Features:  Waterproof / Weatherproof
Communication Interface:  Rs232/485
Customized support:  OEM, ODM
Quantity

Description

General Description:

It is a high performance UHF RFID Industrial Reader. It is designed mainly for industrial production process control system.
Application:
Industrial production process control
Production flew-line management
Attendance management and more

Features:
1. Self-intellectual property;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 2dBi Circular Ceramic Antenna with effect distance up to 0~3.5m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485 interface, RJ45;
10. Support ModBus.

* Effective distance depends on antenna, tag and environment.

Product mode explanation:
Model
Interface
SW5400
Standard(RS232, RS485,Trigger)
SW5400T
Standard with RJ45
-T: RJ45
Product Technical Parameters
