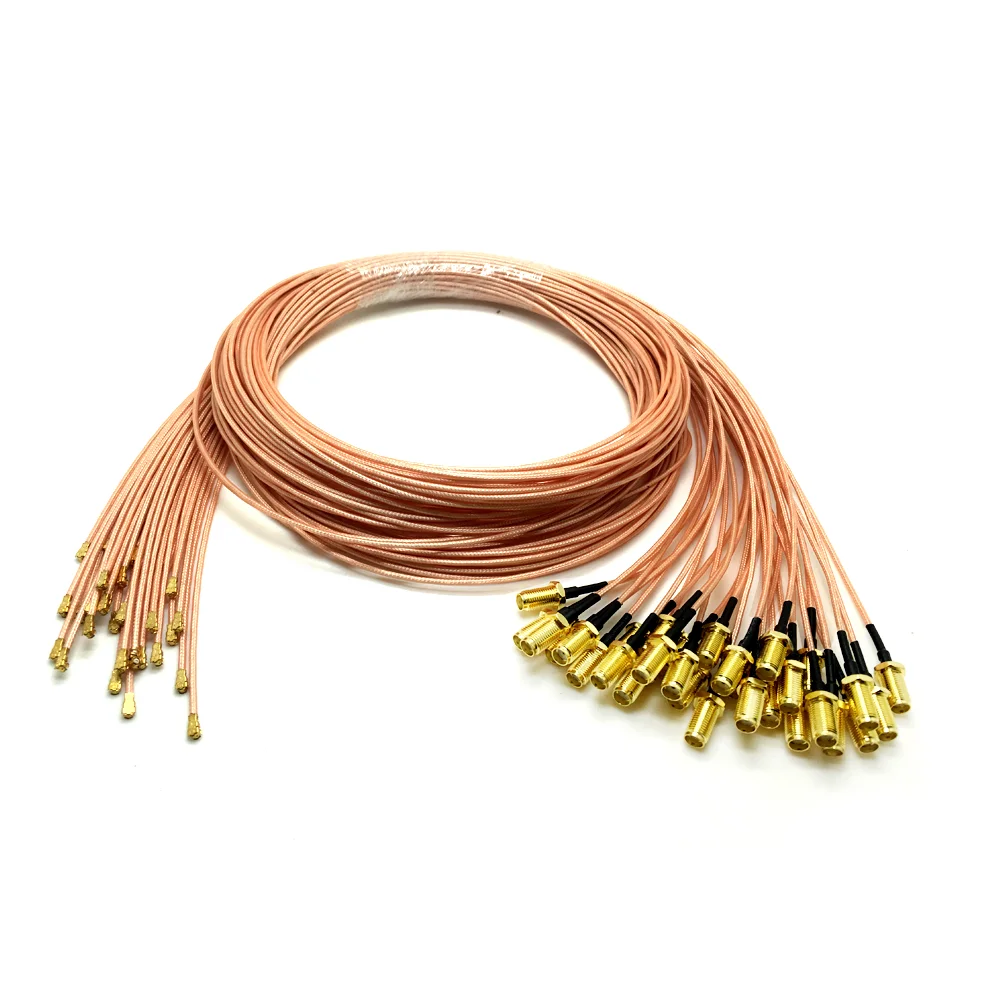

RP-SMA Female to UFL IPX IPEX RF Jumper Cable RP SMA to IPX RF 1.13 Extension Pigtail Connector
Product Description
IPX To SMA Female Converter Cable is a super handy for any designer of RF applications. Nowadays, most of electronic works are done in micro size and scale, so designers must save space by applying a pick-and-placeable U.FL connector (also called, IPEX, IPAX, IPX, MHF, and AM), but most antennas have SMA or RP-SMA connectors on them, so the designer needs an adapter or converter to bridge between these two terminals. The U.FL connector is the smallest RF connector. It's very tiny, which a mated connection of U.FL only stands 2.5mm high. U.FL connectors are suitable for high-frequency signals up to 6GHz and is usually used in applications where nothing else would fit.
This cable adapter is developed for the bridge between any Female SMA connector and U.FL connector, anywhere, such as IPX To SMA Female Wifi Network Card Router,UF.L/3G/GSM/4G/5G Module Cable Inner Hole.
It has a screw type panel-mount SMA connector on the one end, often used for GPS and cellular connections and a U.FL connector on the other end, often used for GSM boards. Most Wi-Fi devices and routers have a connector use RP-SMA, which is not compatible with the adapter cable. It must be checked carefully the antenna you want to connect, and the close up image above to verify if you need RP-SMA or SMA as they are not compatible.
Features
Type: IPX To SMA
Cable Diameter: 1.13mm
Cable length: 150mm
Wire resistance: 50 Ohm
Type: IPX To SMA
Cable Diameter: 1.13mm
Cable length: 150mm
Wire resistance: 50 Ohm
| Material | Shell | Brass, gold/nickel plated |
| male center contact | Brass,gold plated | |
| female center contacts | Gold plated, beryllium copper | |
| Insulators | PTFE | |
| Gaskets | Silicone Rubber | |
| Crimp Ferrules | Copper Alloy,Nickel Plated | |
| Electrical | Characteristic impedance | 50Ω, 75ohm |
| Frequency range | DC-4GHz | |
| Dielectric withstand voltage | 1500V RMS at sea level | |
| Insulation resistance | ≥ 5000MΩ | |
| Contact resistance | Center contact ≤ 1.5MΩ | |
| Outer contact ≤ 1.0MΩ | ||
| Durability | Mating Cycles ≥ 500 | |
| Operating Temperature | -55 to +155 Deg C |
Packaging & Shipping
Packaging Details: RP-SMA Female to UFL IPX IPEX RF Jumper Cable RP SMA to IPX RF 1.13 Extension Pigtail Connector will be packed in one small bag and then put in one box. If you need custom package, we will do as your requirest.
Delivery Detail: About 7 workdays after payments.
