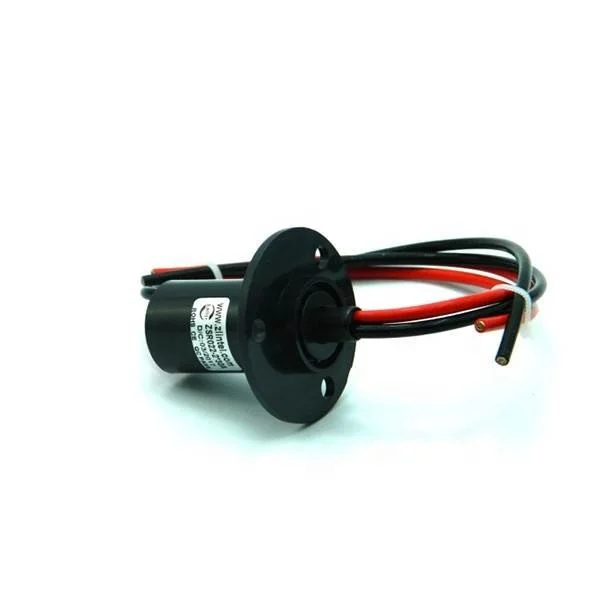

rotary connection collector ring 30A 2-way rotary joint rotary connector high speed ball electrical slip ring
Technical Parameters:
Number of channels 2 Rated current 30A / way can be customized Rated voltage 240VAC / DC Speed 0-200rpm Outside diameter ø22mm Contact material Precious metal Shell material engineering plastics Dynamic resistance minimum 1mΩ Electrical noise <10mΩ, 50mA, 5RPM Wire Size AWG16 Silver Teflon Compressive strength 500VDC @ 50Hz, 10s
Wire length standard
250 mm
Insulation strength
500mΩ @ 500VDC, 10s
Protection class
IP54
Operating temperature
-20 ℃~+60 ℃
Operating humidity
10% -85% RH
Earthquake level
MIL-STD-810E
Why choose a slip ring? In the electrical and mechanical parts of the connection need to provide 360 ° unlimited continuous live rotation, usually will encounter wire winding, twisting thread problem, this time, the use of conductive slip ring completely solve the problem of twisting or wire winding , As technology continues to innovate, the conductive slip ring can simultaneously provide high current power transmission and signal rotation connections.
