Description
Product Description

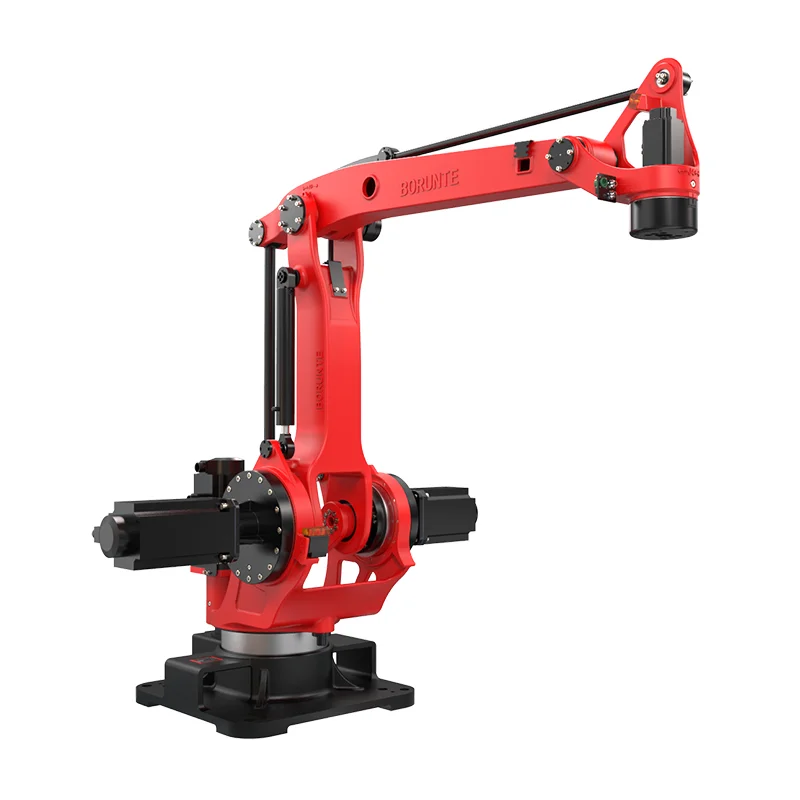

BRTIRPZ2480A type robot is a six-axis robot that developed by BORUNTE for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 2500mm. The maximum load is 80 kg.It's flexible with multiple degrees of freedom. Suitable for loading and unloading,handling, stacking etc. The protection grade reaches IP40 . The repeat positioning accuracy is ±0.2mm.
● The structure of servo motor with RV reducer and harmonic reducer, which has small volume, large working range, fast speed and high precision, and can be integrated with turntable, slide conveyor chain system and other auxiliary equipment. ● The handheld dialogue operator of the control system is simple and easy to learn, which is very suitable for production. ● The robot body adopts partial internal wiring, which is safe and environmentally friendly
BRTIRPPZ2480Arobot arm
FlexPendant
Electric Cabinet
Product Specifications
Model
BRTIRPPZ2480A
Axes
6 axis
Loading ability
80kg
IP code
IP50
Repeated positioning accuracy
±0.2mm
Maximum arm span
2500mm
Weight
750kg
Max speed
J1
85°/s
J2
70°/s
J3
70°/s
J4
82°/s
J5
99°/s
J6
124°/s
Motion range
J1
±160°
J2
-75°/+30°
J3
-80°/+85°
J4
±180°
J5
±95°
J6
±360°
Allowable torque
J4
746N*m
J5
746N*m
J6
368N*m
Allowable moment of inertia
J4
65kg*m2
J5
65kg*m2
J6
38.6kg*m2
Mounting environment
Operating temperature： 0℃~40℃ Best temperature：25℃~40℃ Relative humidity：20~80%RH（No condensation）
