Description

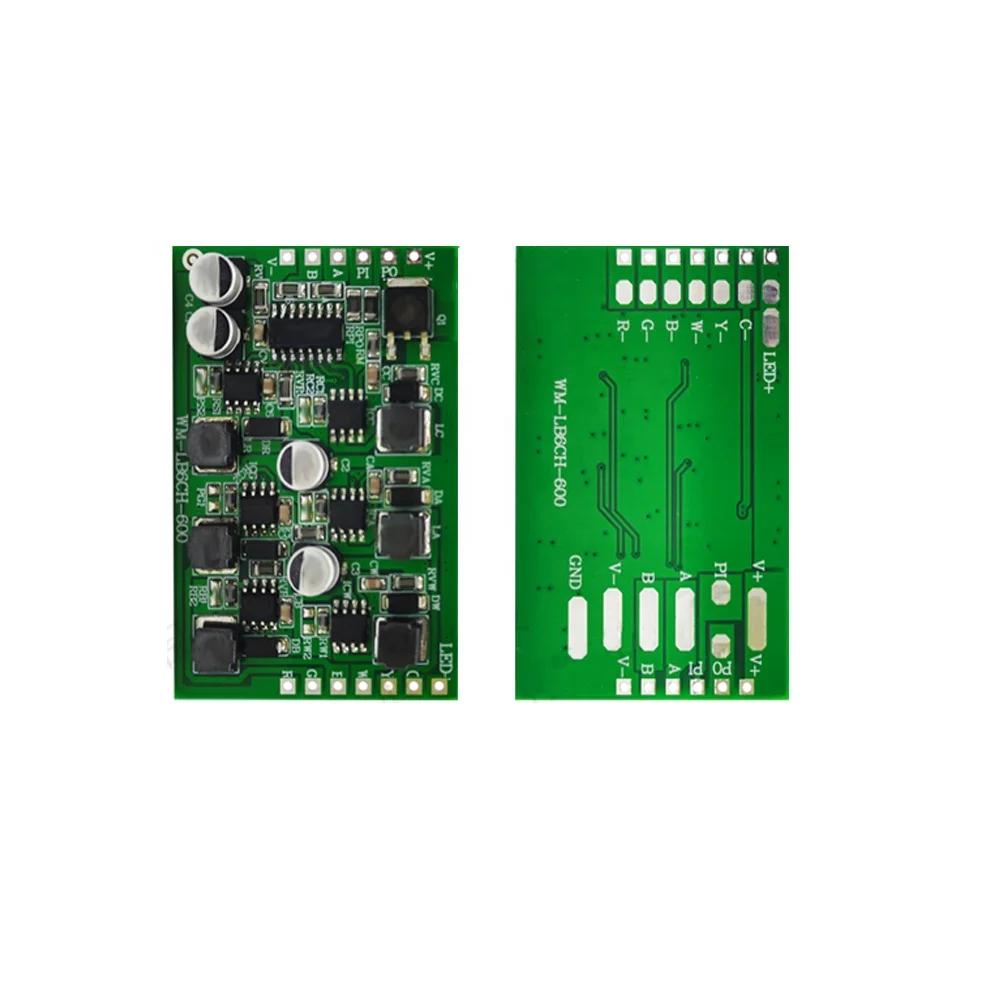

RGBWYC 6CH DMX512 Decoder 12-48VDC 40W 600Ma Constant Current Led Driver Board Led Constant Current Regulator
Product Description
Write code: After PIPO is connected in series, the address will be written automatically in parallel. Protocol: international standard DMX512 protocol (1990), strong tolerance; constant current: high precision (within 3%) Gray scale: O-100% dimming, 65536*65536*65536 gray scale;
Specification
item
value
Model Number
dimmable constant current led driver
Output Type
Multiple
Output Current
600mA
Output Frequency
4000Hz
Size
L60.5x W40.5 x H7.5mm
Weight
100g
Certificate
other
Input voltage range
12V to 48V DC
Gray level
65536
Output current
600mA
Output channel
6 channels
Input reverse polarity protection
Yes
Output short circuit protection
Yes
Over temperature protection
Yes
Working temperature
-30℃~85℃
Application
Mainly used in high-power full-color wall washer, flood light, buried light, underwater light, stage light, tunnel light, etc.
