Description
Product Overview

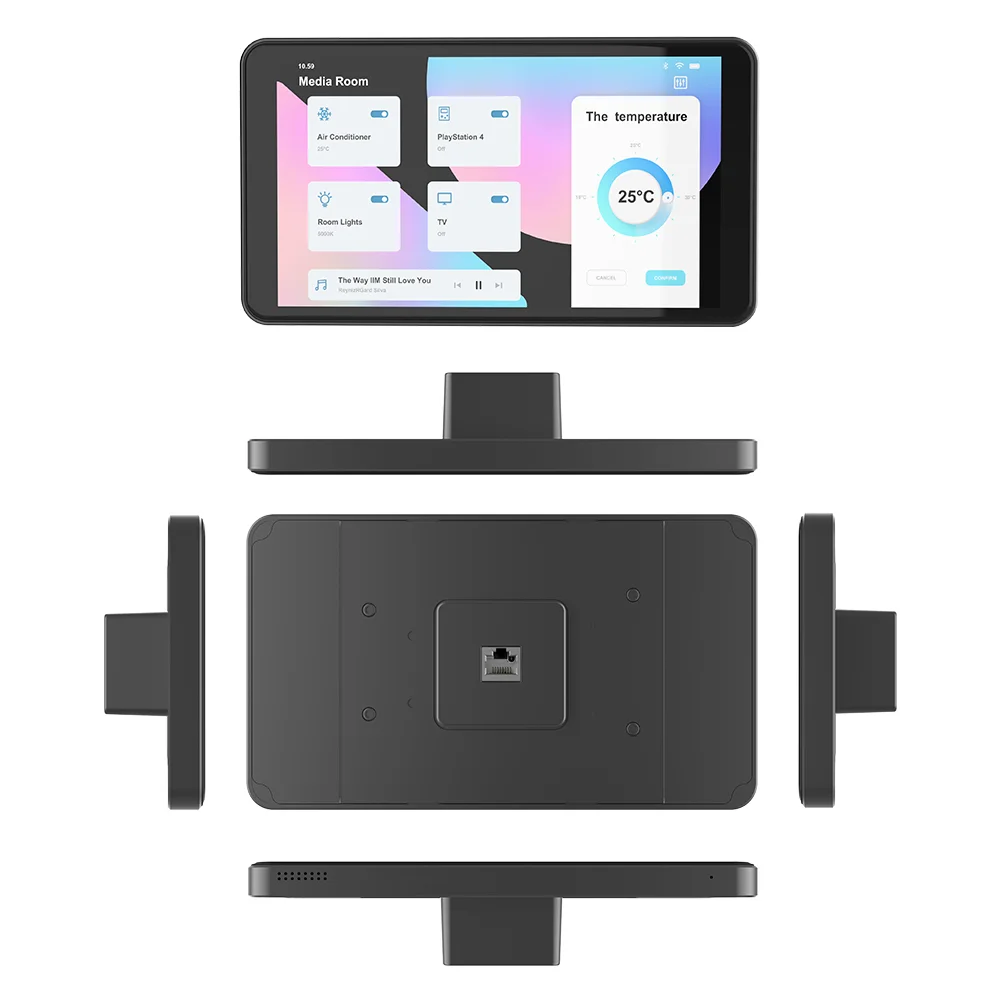

Wall Mount Customized Tablet Android 8 inch Restaurant Retail Store
Advertising Smart Display LTE Wifi Zigbee NFC Tablet PC
Wall-Mounted Android/ Linux Advertising Smart Display
Usage scenario: as a advertising smart display in restaurant, retail store, hotel, etc, with wall-mounted design, integrate with serial communications like zigbee, NFC, 4G LTE, Wifi, customers develop algorithm/application/system,etc.
Zigbee 3.0
Z-wave ISM
5G Wifi
BLE 5.0
Wall Mounted Design
Alarm System
NFC & RFID
|
OEM/ ODM 8 inch Wall-Mounted Android/Linux Advertising Smart Display
|
OEM ODM 7 inch Smart Home Android Touch Panel Gateway
|
|||
|
Main Features
|
Wall Mount; Zigbee 3.0, NFC, 4G LTE, Wifi
|
|||
|
Model
|
PRETECH-WP80
|
|||
|
Size
|
8 inch (3 inch to 23.8 inch optional)
|
|||
|
Brand
|
OEM/ODM
|
|||
|
Condition
|
New
|
|||
|
Warranty
|
1 Year
|
|||
|
Certifications
|
CE,FCC,RoHS,KC...(Optional)
|
|||
|
TYPE
|
DETAILS
|
DESCRIPTIONS
|
||
|
DIMENSIONS AND WEIGHT
|
Product size
|
218.4 x158.2 x 35 mm
|
||
|
Product weight
|
585g
|
|||
|
Color
|
White/Black
|
|||
|
Material
|
Plastic
|
|||
|
Finish
|
DVT
|
|||
|
OPERATING SYSTEM
|
OS
|
Android 8.1 or Linux
|
||
|
PROCESSOR
|
CPU
|
Rockchip PX30 Quad core Cortex A35 1.3GHz 28nm
|
||
|
GPU
|
Mali-G31MP2
|
|||
|
MEMORY
|
Capacity
|
2GB + 16GB
|
||
|
Max. expansion supported
|
128GB
|
|||
|
RAM type
|
DDR4
|
|||
|
DISPLAY
|
Screen size ( inches)
|
8''
|
||
|
Display panel type
|
HD
|
|||
|
Brightness
|
250 cd/m²
|
|||
|
Screen resolution
|
800*1280
|
|||
|
Multitouch
|
G+G, 5 points touch
|
|||
|
CAMERA
|
Rear camera
|
N/A
|
||
|
Front camera
|
2MP FF
|
|||
|
CONNECTIVITY
|
Cellular
|
LTE CAT4
|
||
|
Band details
|
4G LTE: B1/3/7/8/20
|
|||
|
3G: B1/8
|
||||
|
2G: B2/3/5/8
|
||||
|
SIM card type
|
Micro SIM
|
|||
|
SIM card quantity
|
1
|
|||
|
WLAN
|
802.11 a/b/g/n/ac 5GHz
|
|||
|
Bluetooth
|
BT 5.0
|
|||
|
FM radio tuner
|
N/A
|
|||
|
USB
|
USB Type-C*2, USB 2.0
|
|||
|
OTG
|
YES
|
|||
|
NFC
|
YES
|
|||
|
Headphone jack
|
N/A
|
|||
|
LOCATION
|
GPS
|
N/A
|
||
|
Galileo
|
N/A
|
|||
|
Glonass
|
N/A
|
|||
|
Beidou
|
N/A
|
|||
|
MEDIA
|
Receiver
|
N/A
|
||
|
MIC
|
YES
|
|||
|
Speakers
|
2*0928, 3 magnets
|
|||
|
Format supported
|
MP3, MP4
|
|||
|
Motor
|
N/A
|
|||
|
SENSORS
|
Gravity sensor
|
N/A
|
||
|
Ambient light sensor
|
YES
|
|||
|
Proximity sensor
|
YES
|
|||
|
Compass
|
N/A
|
|||
|
Gyroscope
|
N/A
|
|||
|
Hall sensor
|
YES
|
|||
|
Fingerprint
|
N/A
|
|||
|
Laser focusing
|
N/A
|
|||
|
Infrared sensor
|
N/A
|
|||
|
FEATURES
|
Features 1
|
Zigbee3.0
|
||
|
Features 3
|
NFC
|
|||
|
Features 4
|
4G LTE
|
|||
|
POWER SUPPLY
|
Battery capacity
|
4000mAh Li-polymer
|
||
|
Charging port
|
USB Type C
|
|||
|
Recharging current
|
5V 2A
|
|||
|
Wireless charging
|
N/A
|
|||
|
Environment
|
Operation
|
Temperature: 0°C ~ 40°C Humidity: 10% ~ 93%RH
|
||
|
Storage
|
Temperature: -10°C ~ 50°C Humidity: 10% ~ 93%RH
|
|||
|
Charging
|
Temperature: 0°C ~ 40°C Humidity: 10% ~ 93%RH
|
|||
|
IN THE BOX
|
1 x Tablet
|
YES
|
||
|
1 x Battery
|
N/A
|
|||
|
1 x Data cable (2m)
|
YES
|
|||
|
1 x 3.5 headphone
|
N/A
|
|||
|
1 x AC power charger adapter (100~240V)
|
N/A
|
|||
|
1 x English quick guide
|
YES
|
|||
|
1 x Pin for SIM card
|
N/A
|
|||
|
1 x PC case
|
N/A
|
|||
|
1 x layer pet film
|
YES
|
|||
Product Accessories & Packaging
Our Services
|
OEM Services
|
||||
|
Logo
|
Print Logo on Back Case(Plastic/Metal)
|
|||
|
Touch Panel
|
with MOQ 3000PCS
|
|||
|
Accessories
|
Giftbox/User manual/ Warranty card/Charger/Leather case
|
|||
|
Artwork
|
Support free Artworks customization
|
|||
|
Software
|
Support free Software customization(Including Startscreen/Wallpaper/System information/Pre-insall Apps etc)
|
|||
|
ODM Services
from a product concept, design solution to the finished product production
|
||||
|
Product Design
|
ID(texture/color...), MD
|
|||
|
Hardware Definition
|
Screen
|
Screen size, Screen(TP) type, Resolution, Screen and visual protection...
|
||
|
Mainboard
|
CPU and RAM/ROM, Secure IC, Interface, Button...
|
|||
|
Periphery
|
Camera, Battery, Scanner, Sensor, Signing board, Shell process...
|
|||
|
Communication Protocol
|
Wireless
|
BT, WiFi, LTE(4G), NFC, RFID...
|
||
|
System
|
OS version, Source code, Debugging, Renaming, Language...
|
|||
|
Certification&Authentication
|
GMS, CE, FCC, RoHs...
|
|||
|
Brand
|
LOGO put, User manual, Packaging design and production...
|
|||
|
Other Services
|
Tooling, Functional verification, Cost control...
|
|||
|
And Now our ODM services has covered more than 10 different application fields, such as :
a. Smart home IOT projects, with zigbee, z-wave, lorawan, MQTT, HTTP, POE, wall mount...etc function b. Smart Kitchen Appliance, such as coffee maker, toaster, tea milk vending machine c. Smart healthcare products for hospitals & patients & seniors d. OBD & Navigation & car hearest display Device for Vehicle e. Smart Payment Terminal Device f. Education projects*Smart gym solution |
||||
|
After-sale Service
|
||||
|
a.
|
1year warranty for all products(Exclude accessories), any terminals with quality issue(Exclude human factors) can get repaired or
replacement from us. |
|||
|
b.
|
If clients handle the service locally, we will provide recommendations for clients to purchase some Spare parts(PCBA/LCD/Touch
panel/Battery etc) |
|||
|
c.
|
For the product assembling and repairing, we will provide video. If necessary, we will send technical staff to train
|
|||
|
d.
|
Technical assistance for whole life
|
|||
