Description
Product Paramenters
|
Product model
|

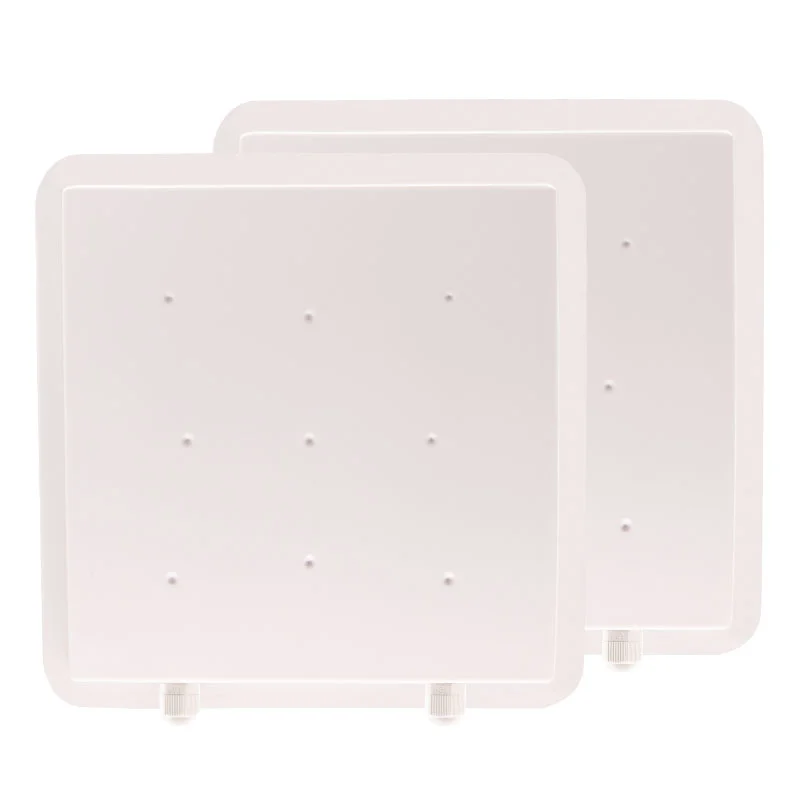

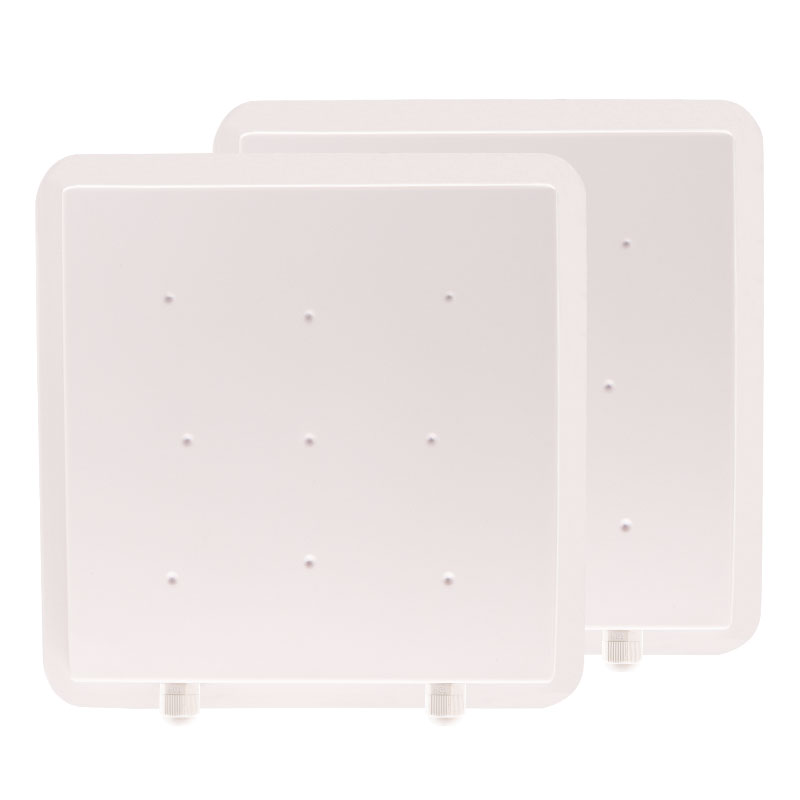

UHF RFID all-in-one (Network Port)
|
|
|
size
|
260mm*260mm*57mm
|
|
|
Rf module
|
lmpinjR2000 module
|
|
|
Frequency range
|
902-928MHz or 865-868MHz(depending on the country or region can be adjusted)
|
|
|
Frequency modulation mode
|
Broad spectrum frequency modulation (FHSS) or fixed frequency, can be set by software
|
|
|
Built-in antenna
|
8dbi circular polarized antenna
|
|
|
Working agreement
|
ISO18000-6C(EPCClass1Gen2),SO18000-6B
|
|
|
Output power
|
0-30dbm(adjustable)
|
|
|
Reading distance
|
Distance can be controlled in 3M-12M setting (related to label performance and antenna gain)
|
|
|
Working mode Active mode
|
Active mode, passive mode, trigger mode and other working modes;
|
|
|
Communication interface:
|
RS232, 485, WIEGAND26/34, TCP/IP(customizable), WIFI (customizable)
|
|
|
Working status display mode
|
Buzzer alert
|
|
|
Secondary development
|
Provide dynamic link library file (DLL) and demo program source code to support secondary development
|
|
|
Operating voltage
|
DC9-12V，3Aoutput
|
|
|
Power source
|
DC9-12V，3A output
|
|
|
Case material
|
ABS(Light grey)
|
|
|
Protection level
|
IECIP67
|
|
|
Humidity:
|
5%to95%, non-condensing
|
|
|
Class of protection
|
IEC IP67
|
|
|
Working temperature:
|
-20°-+75°
|
|
|
Storage temperature:
|
-25°~+85°
|
Our Advantages
Scope of use:
Spare management, warehouse management, asset management, power management, tool management, surgical instrument management, asset management, material management.
Packaging and delivery
We work with DHL, FEDEX, TNT, UPS, EMS, SEA and AIR Freight forwarders have a strong partnership, and you can also choose your ownfreight forwarder.
Click here to order and get free sample within 3 days!! You only need to pay for the shipping fee. We are a professional RFID product supplier, with 15 years of experience, we will provide the best solution for your doubts, so please send your inquiry details below, click "Send" now! We look forward to building successful business relationships with new customersaround the world in the future."
FAQ
1.What is your minimum order?
Our RFID reader MoQ is 1pc,RFID tag MoQ is 100pcs
2.What is your lead time?
Our normally lead time is 1-7 working days,also depends on real order quantity and specific requirement
3.What method will you use for shipment?
We delivery goods by DHL,FedEx,TNT,ups ,also can ship goods by sea or by alr,real method depends onorder quantity
4.What payment methods your company accept?
We can accept payment by T/T, Western Union and paypal and other forms of payment
5.How to place order to you?
You can send online order on Alibaba platform,also can send purchase order to our sales directly ,we wilsend online or offline proforma invoice to you confirm order.
6.What is the warranty time of your products?
Our officially promised warranty time is 12 months
7.can vou provide after sale technical support?
Yes,we have strong technical team can provide after sale technical support service.
