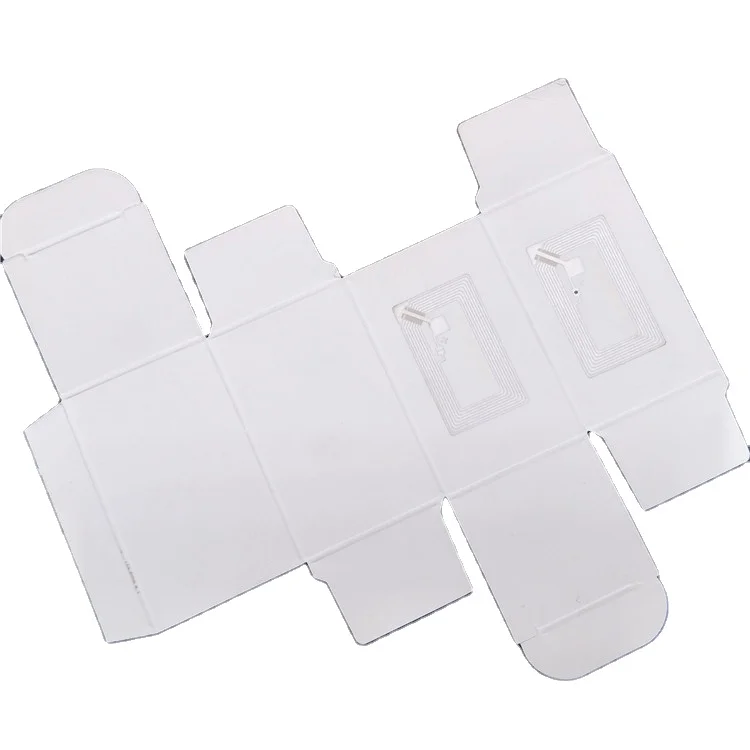

High quality rfid nfd gift box are specially made paper which has NFC chip embedded inside. It is printable. The NFC chip can be used for identification and security higher standard packaing. The data can be stored for more than 10 years
| Item | RFID NFC Gift Box for higher standard anti fake packaging |
| Material | PAPER |
| Standard | ISO14443, ISO15693, |
| Dimension | customized |
| Layout | any customized |
| Thickness | HF: normal 0.25MM, 0.35mm, 0.45mm, 0.555mm,0.6mm |
| Antenna | HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding |
| Bonding | HF: FlIP Chip, Wire Bonding, MOA2 |
| Read Range | 0~50mm with standardreader |
| Applications | Access Control & Security, high security files or document management |
| Working Temperature | -25℃ ~ +55℃ |
| Store Temperature | -25℃ ~ +65℃ |
What we have:
- Variety of RFID IC on option (HF/LF) for alternation
- Different kinds of material, including PVC, PETG
- High reading distance optimized to each chip
- Option of combining two different chip technologies in one prelam
-Different sheet formats are available 1 × 5, 2 × 4, 2 × 5, 3 × 6, 3 × 7, 3 × 8, 3 × 10, 4 × 8, 4 × 10, 6 × 8, up to 640 × 520 mm, others upon request
- Delivery time and guarantee
Available IC's:
| Available 125KHz Chip | ||||
| Chip Type | Protocal | Capacity | Anti Collision | Function |
| TK4100 | / | 64 bit | No | Read Only |
| EM4200 | / | 128 bit | No | Read Only |
| T5577 | / | 330 bit | No | Read/Write |
| Available 13.56MHz Chip | ||||
| MIM 256 | / | 256 byte | No | Read/Write |
| MIM 1024 | / | 1024 byte | No | Read/Write |
| ATC 128 | / | 128 byte | Yes | Read/Write |
| 2048 | ISO15693/18000-3 | 2048 bit | Yes | Read/Write |
| Available 860-960MHz Chip | ||||
| H3 | ISO18000-6C | 512 bit | Yes | Read/Write |
| M3 | EPC G1 GEN2 | 512 bit | Yes | Read/Write |
| M6 | ISO 18000-6/EPC G1 GEN2 | 96 bit | Yes | Read/Write |
| Other chips is also available. | ||||
We can support more:
- Ability to Design different RFID antenna, in different RF protocol, and frequency.
- Research and design different encapsulation for special environments.
- Data encoding and encryption optioans.
- Transponder design base on correspond with customer reader.
- Individual process.
