RFID MFRC-RC532 13.56Mhz With NFC Tag Write Secondary Development Module--shop.rfid-life.com

RFID Reader Module

$3.00
Special Features:  PORTABLE
Communication Interface:  RFID
Customized support:  OEM, ODM
Quantity

Description

Products Description
Product name
 RC532 RFID module
Induction time
<0.2S
Read Range
0-70mm
Working humidity
10% - 90%
Support cards
S50,S70,FM1208,NTAG203,DESFire,FM11RF08
Working mode
WG2634/RS232/RS485
Working Current
<100mA
Selling Units
Single item
size
41*43mm
Lead Time
1-100 5days
>100 To be negotiated
Single gross weight
0.14 kg
Place of Origin
China
Description:

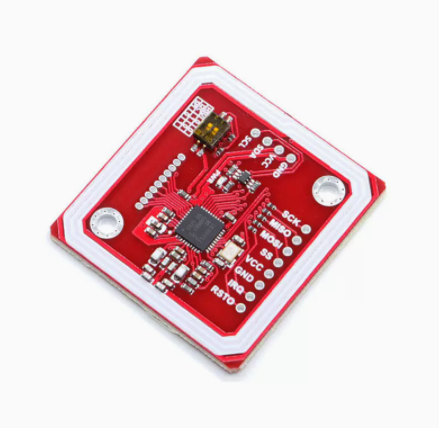

1.Gilt PCB And Small Dimension And Easy To Embed Into Your Project
2.Support I2C.And HSU , Change Between Those Modes
3.Support RFID Reading And Writing Support P2P Communication With Peerssupport NFC With Android Phone

Specification:
1. Size:41*43mm
2. Color:Red
3. Weight:10g
4. Frequency: 13.56MHZ
5. Working Voltage: DC 5V
6. Working Current:<50mA
7. Receiving Range: 20 ~50mm
8. Working Temperature: -10℃~70℃
9. Storage Temperature:-20 ℃ ~80℃
10. Relative Humidity: 0 ~95%

Package Including:
1PC*NFC Module
