Description

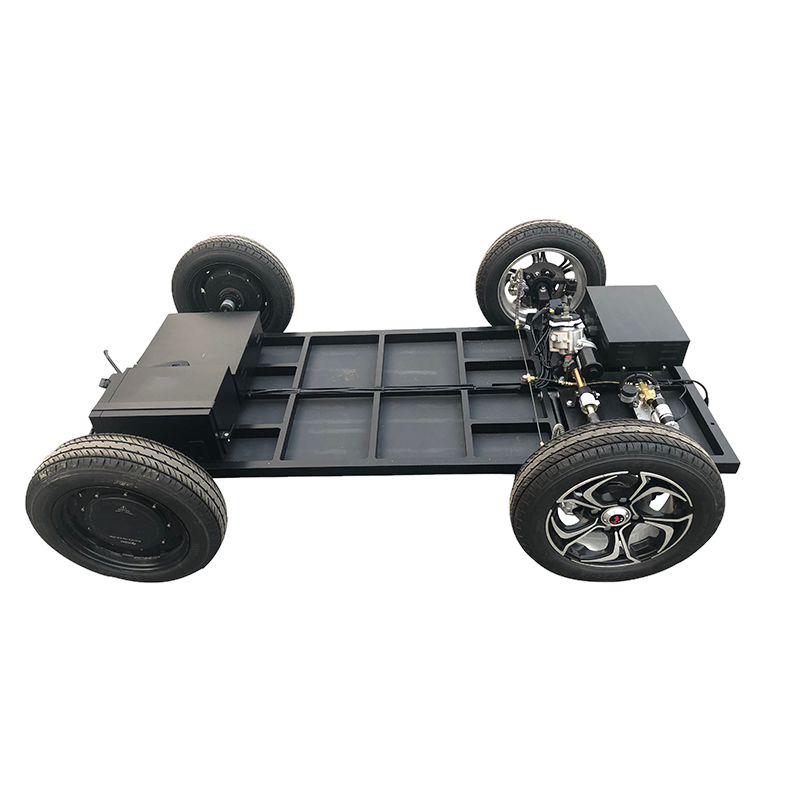

MD-TD01 wire-controlled chassis is an intelligent mobile platform specially developed for various application scenarios. The chassis adopts full-line control technology, and the design of the whole vehicle meets vehicle-level standards, which can achieve high-precision front-wheel-by-wire steering control, rear-wheel double-wheel hub motor drive, and brake-by-wire. This product supports multiple driving modes, 200 meters remote control driving, remote 4G/5G network remote control driving, and automatic driving can be developed.
Specification
|
Item
|
Data
|
|
Dimensions
|
1860*1245*500mm
|
|
Axle track/Wheelbase
|
1200mm/Front 1136mm, rear 1130mm
|
|
Tire diameter
|
400MM
|
|
Quality
|
127.6KG140mm
|
|
Minimum ground clearance
|
140mm
|
|
Rated power
|
1200w
|
|
Drive form
|
Forward Ackerman; rear wheel hub motor drive
|
|
suspension
|
Concealed air damping spring type independent suspension
|
|
Security
|
Wire-controlled hydraulic disc brake, motor anti-drag brake
|
|
Operating temperature
|
-20℃~60℃
|
|
Protection level
|
IP35
|
|
Vertical load
|
220kg
|
|
Running speed
|
0-50km (adjustable speed)
|
|
Minimum turning radius
|
3.5m
|
|
Maximum climbing angle
|
20°
|
|
Maximum span
|
20cm
|
|
Axial thrust
|
500N
|
|
Maximum obstacle
|
8cm
|
|
Battery
|
43Ah/72v, ternary lithium battery
|
|
Recharge mileage
|
40km
|
|
Charging method
|
Manual charging with charger
|
|
Charging time
|
≤6h
|
|
External power supply
|
12V/5V; can be customized
|
|
Sensor type
|
Steering feedback sensor
Wheel speed sensor
Front and rear brake feedback sensor
|
|
Communication Interface
|
CAN
Provide standard communication protocol
|
|
Sport control
|
VCU control
|
