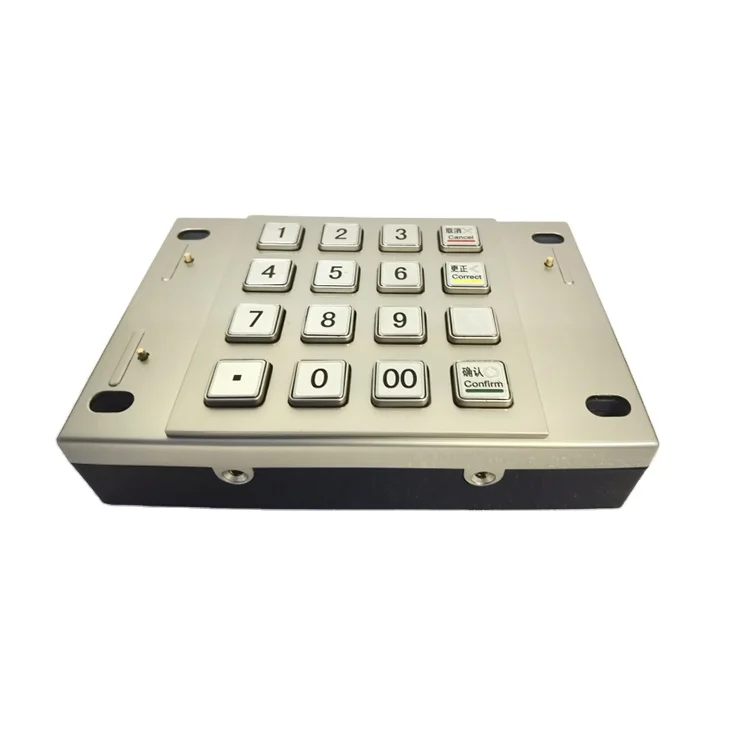

Metal numeric keypad
Approvals
1. PCI 2.0 EPP ATM key pad
2. Pass the certification of China Central Bank card testing center
3. CE, RoHS, FCC
Dimension and Weight
1. Dimension L×W×H: 140 mm×95mm×29.5mm (Please see the Drawing A below)
2. Weight 1.1kg
Main function
1. Input keypad: 10 numeric keys, 6 function keys.
2. Secure PIN entry and secure mechanism, prevent any combination of the attack, ensure the save of the secure information.
3. Security encryption key management
4. High performance secure management
5. Has strong WOSA driver supported, so it can be applied to different ATMs/ Kiosks.
Structure
The KMY EPP is mainly constructing with the components as bellow:
1. 16 pieces of stainless steel keycaps
2. Stainless steel frame
3. Tamper resistant secure box
4. Main board, all electronic components are layout on the board
5. Has strong WOSA driver supported, so it can be applied to different ATMs / Kiosks.
Appearance
1. Keypad made of high quality stainless steel
2. Customizable layout, dimension and installation design
3. Braille key design for visually handicapped people
Keycap press force
1. All keycaps press should have event,
2. All keycaps press force is the same, the force is 3.6 N.
3. All keycaps press should has a feedback feel.
4. All keycaps presss life time is longer than 2,000,000
Mechanism
1. Keystroke life time > 2,000,000
2. Keystroke force 3.6 N
3. Keystroke travel 0.45mm
Environment Requirements
1. Operating temperature range: 25-65
2. Storage temperature range: 25-65
3. Maximum humidity in operating environment: 80%
4. For security reasons, the secure information will be deleted when the environment temperature is beyond the storage temperature range.
