axation, banking stored value, query management system

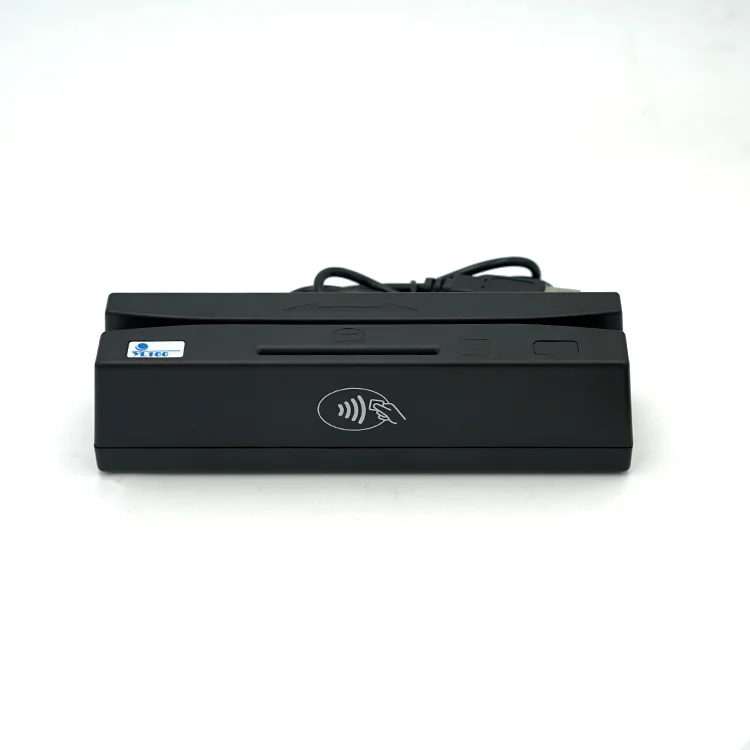

4-in-1 card reader writer
EMV certified support magnetic/ic,emv chips/RFID/PSAM
Product Description
* Long Service Life Magnetic Head * 100% Quality Confirmed 12 months Factory Warranty * Can read&write a variety of memory card and supports T = 0 and T = 1 communication protocol CPU card * Support the function of the SAM card operation * Use USB to communication with PC * Provide many development platform interface function and application example * Cards supported ISO 7811,AMMVA,CADMV * rfid is 13.56 M Hz
Tenchnical Specification
Magnetic card
Read only
Selectable tracks
yes
Read card
1/2/3tracks
Swipe
Double direction
Head life
Approx 500,000 passes
Parity and LRC checking
Built-in, audible and LED good read and error indicator
Commercial-grade:-20°∼ 60 °C Industrial-grade:-20°∼ 60 °C
Humidity
90% non- condensing
Anti-static interference
15KV
Magnetic interference resistance
19Oersted
Product Usage
Feature
• It is widely used in industry and commerce, telecommunications, taxation, banking, insurance, health care and a variety of charges, stored value, query management system.
• Compatibility:100% compatible MSR206 instruction set
• Standards: Accord with ISO, AAMVA DMV user-defined format
• type: all kinds of memory CARDS and T = 0, T = 1 communication protocol of CPU card Support the multi-function PSAM card operation
