Description

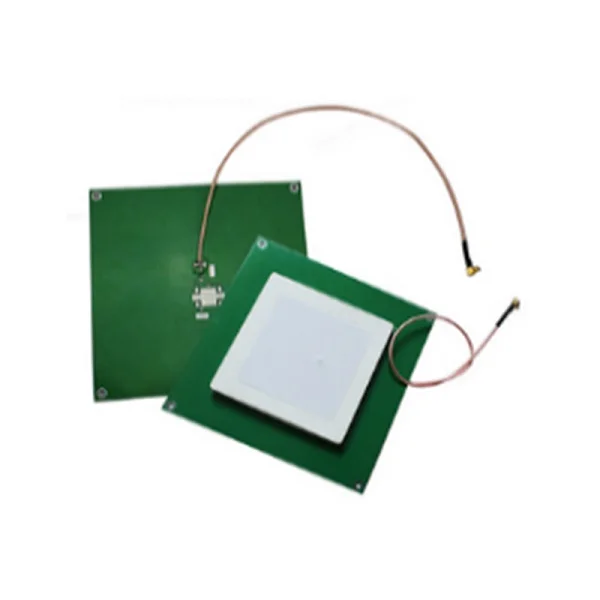

RFID Antenne Antena 860-960MHz 915MHz UHF RFID Antenna Circular
Product Description
What is the overview of RFID Antenne Antena 860-960MHz 915MHz UHF RFID Antenna Circular?
UHF Ceramic Antenna series is high-performance UHF RFID Ceramic Antennas. They can be widely
integrated in many RFID terminal systems such as handheld terminals, access control terminal and kiosks,
personnel management, asset tracking and other requirements for the size of the field, it can also be installed
on, for example, handheld navigators, tablet computers, etc.
What is the technical specification of RFID Antenne Antena 860-960MHz 915MHz UHF RFID Antenna Circular?
* Compact size and light weight
* Easy installation
* Fast and accurate reading speed
* High data security
What is the technical specification of RFID Antenne Antena 860-960MHz 915MHz UHF RFID Antenna Circular?
| Model |
AU-TC1515
|
AU-TC4035
|
AU-TC5040
|
AU-TC7060
|
|
|
||||
|
Mid Freq
|
915±3MHz
|
915±6MHz
|
915±6MHz
|
915MHz
|
|
Bandwidth
|
>10MHz
|
>10MHz
|
>10MHz
|
>10MHz
|
|
Max Gain
|
2dBi
|
2dBi
|
2dBi
|
3dBi
|
|
Polarization
|
Right hand circular
|
Right hand circular
|
Right hand circular
|
Right hand circular
|
|
Ceramic Dim
|
15*15*8mm
|
35*35*4mm
|
40*40*5mm
|
60*60*5mm
|
|
Total Dim
|
15*15*10.2mm
|
40*40*6.7mm
|
50*50*9mm
|
70*70*8.9mm
|
|
Model
|
AU-TC3525
|
AU-TC4235
|
AU-TC9080
|
AU-TC12080
|
|
|
||||
|
Mid Freq
|
915MHz
|
915±6MHz
|
915±3 / 922.5±3MHz
|
915±3 / 922.5±3MHz
|
|
Bandwidth
|
>10MHz
|
>10MHz
|
>20MHz
|
>20MHz
|
|
Max Gain
|
2dBi
|
2dBi
|
5dBi
|
6dBi
|
|
Polarization
|
Right hand circular
|
Right hand circular
|
Right hand circular
|
Right hand circular
|
|
Ceramic Dim
|
25*25*4mm
|
35*35*4mm
|
78.8*78.8*5mm
|
78.8*78.8*5mm
|
|
Total Dim
|
35*35*5mm
|
42*42*8.1mm
|
90*90*8.5mm
|
120*120*8.5mm
|
Note: PCB size can be customized upon request.
More Pictures
Related Products
Packaging & Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Trade Terms
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our Services
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We have super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
