RF Wideband 0~60dB Gain Adjustable Linear RF Amplifier -65dBm Small Signal Amplify Power RF Amplifier
Product Description
It can achieve 0-60dB gain control, the smallest step is 0.5dB, the smallest signal can be amplified -80dBm, and the signal bandwidth can be 50M-2GHz.
Specification
|
item
|
value
|
|
Module model
|
RF adjustable gain amplifier
|
|
Module type
|
Programmable gain amplifier
|
|
Module supply voltage
|
7V,<U<9V
|
|
Module power supply current
|
249mA, excluding the 45mA current of the main control board
|
|
Input signal form
|
Single-ended
|
|
Input voltage range
|
-80dB~-40dB
|
|
Input frequency range
|
50MHz-2GHz, the gain will decrease as the frequency increases
|
|
Input resistance
|
50Ω
|
|
Output signal form
|
Single-ended
|
|
Output voltage range
|
20dBm (Max), different frequency output voltage is different
|
|
Input and output signal characteristics
|
Input and output capacitive coupling
|
|
Output current
|
±5mA (Max)
|
|
Module gain range
|
0~60dB adjustable gain
|
|
Gain control step
|
0.5dB
|
|
Gain control method
|
Program control, 3.3V-TTL or 5V-TTL
|
|
Gain control bits
|
8-bit
|
|
Module enable
|
Have
|
|
Module weight
|
19g
|
|
Module protection
|
None, with reverse connection protection, unlimited flow protection
|
|
Module specifications
|
50*50*7mm, length width * height-PCB size
|
|
Module heating
|
No heat sink, no heat dissipation required for normal operation
|
|
Module heating factor
|
Excessive supply voltage damages the chip or the module is damaged
|
|
Module working temperature
|
-25℃~+75℃, industrial grade
|
|
Module features
|
Positive and negative power LED indication, 2.54-5PIN anti-reverse connection program control interface
|
|
Scope of application
|
Receiver front end, signal processing front end, video receiver, etc.
|
|
Module interface type
|
SMA signal input and output, 3. 81 green power card socket
|
Installation Instructions
Precautions for module use
(1) The power supply of the module is a single power supply, and the voltage cannot exceed the maximum 9V. (2) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply. (3)) It is recommended to use SMA to BNC line for input and output signal for output signal. Use an oscilloscope to observe the effect. Poor contact or poor quality wire may cause signal attenuation or excessive noise.

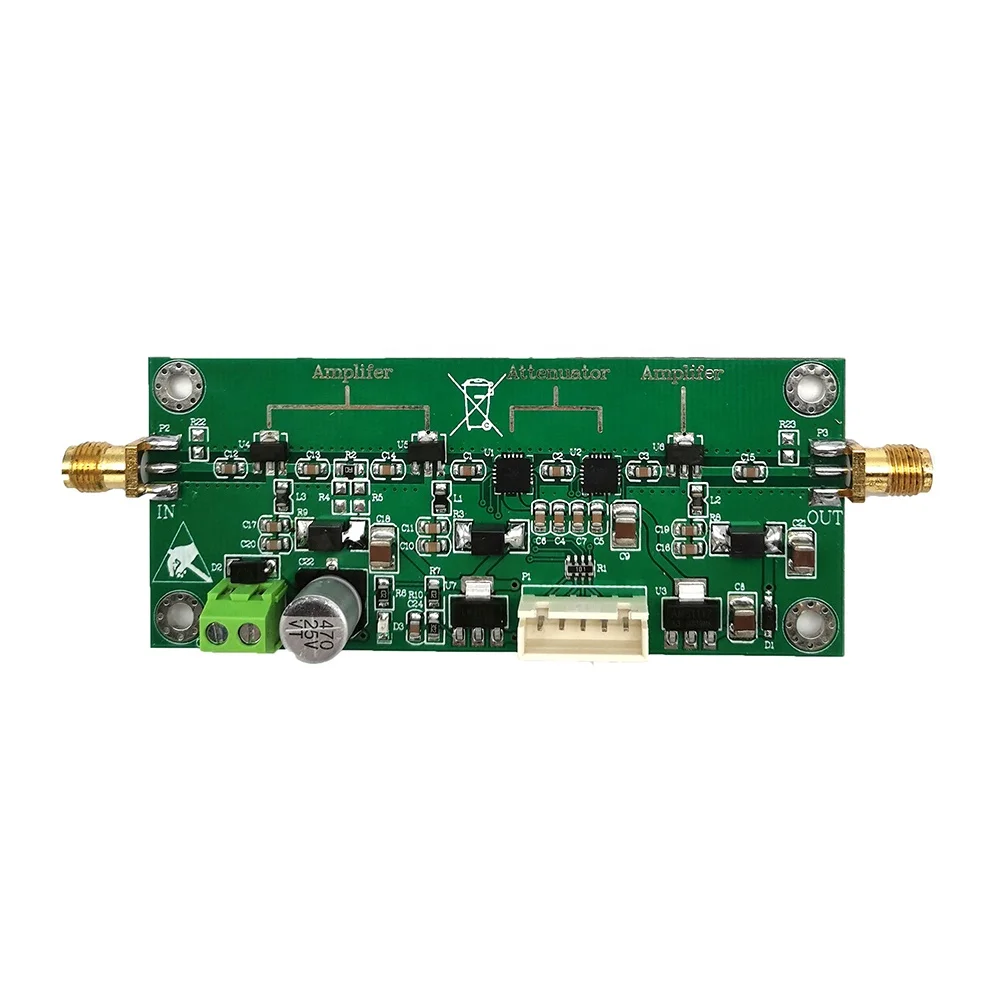

Details Images
