Description

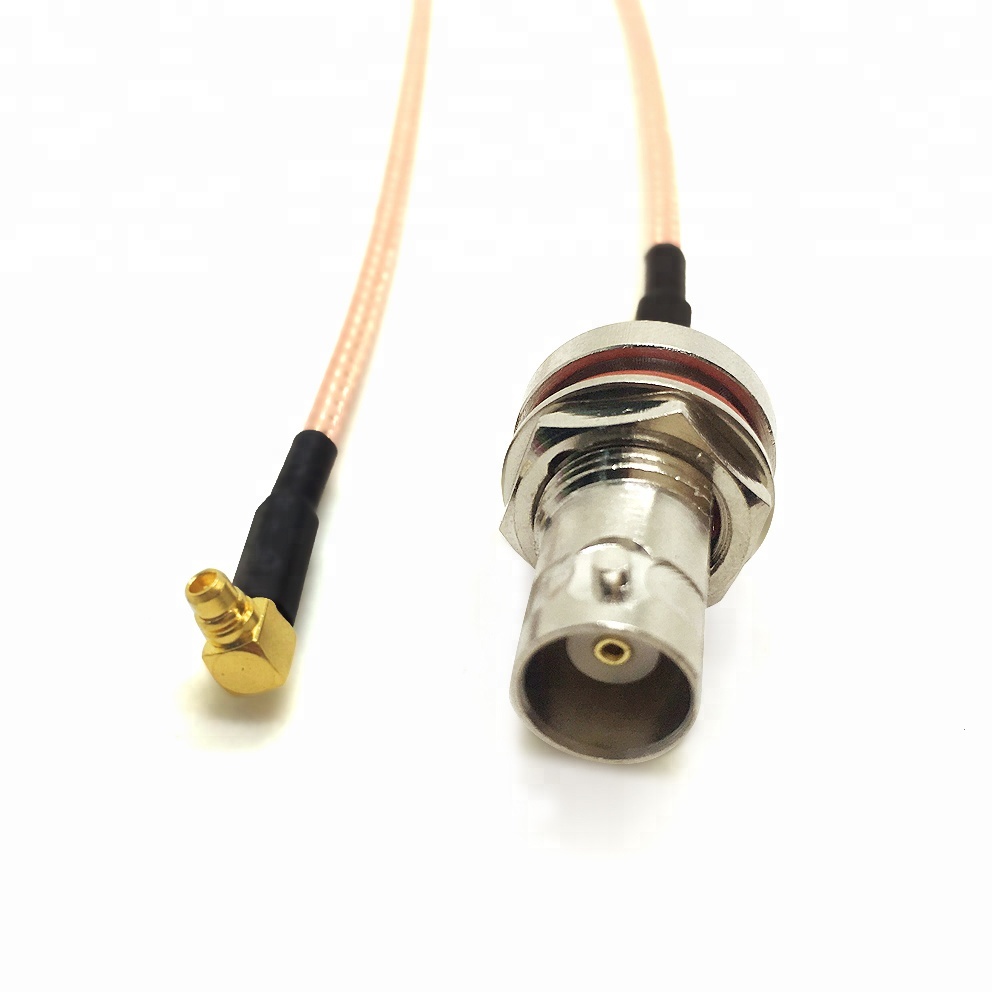

rf to bnc ethernet rj45 converter
Product Description
Type BNC is one of RF coaxial connectors using a bayonet type coupling mechanism, characteristic impedance has two types: 50ohm and 75ohm. They can be quick connect/disconnect, reliable lock etc. they are widely used in connection with the RF coaxial cables in computer filed, network of wireless, medical equipment and electronic instrument.
Material
Shell
Brass, gold/nickel plated
male center contact
Brass,gold plated
female center contacts
Gold plated, beryllium copper
Insulators
PTFE
Gaskets
Silicone Rubber
Crimp Ferrules
Copper Alloy,Nickel Plated
Electrical
Characteristic impedance
50Ω, 75ohm
Frequency range
DC-4GHz
Dielectric withstand voltage
1500V RMS at sea level
Insulation resistance
≥ 5000MΩ
Contact resistance
Center contact ≤ 1.5MΩ
Outer contact ≤ 1.0MΩ
Durability
Mating Cycles ≥ 500
Operating Temperature
-55 to +155 Deg C
Packaging & Shipping
Packaging Details:rf to bnc ethernet rj45 converter will be packed in one small bag and then put in one box.If you need custom package, we will do as your requirest.
