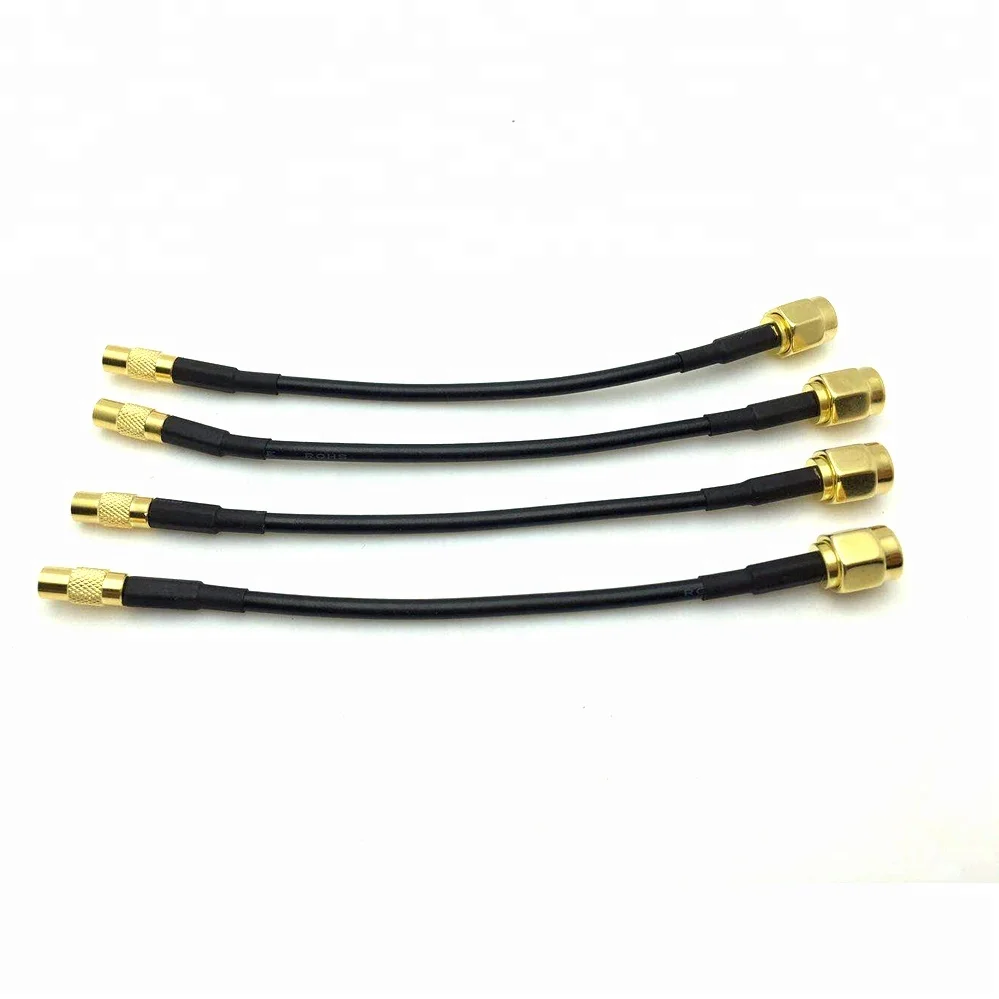

RF Solutions 50 ohm Female SMA-J to Male MCX Coaxial Cable Assembly 100mm Length RG174U cable type

RF Solutions 50 ohm Female SMA-J to Male MCX Coaxial Cable Assembly 100mm Length RG174U cable type

$0.88
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.

Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China

Support Department

Email: support@rfid-life.com

Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed
Description

RF Solutions 50 ohm Female SMA to Male MCX Coaxial Cable Assembly 100mm Length RG174U cable type



Product Description



BNC RF cable assemblies are built and shipped worldwide.

RF cable assemblies in :



50 Ohm can be ordered using the following connector types:BNC, BNC Twinax, FAKRA, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF,



75 Ohm cable assemblies can be made with the following 75 Ohm connectors: BNC 75 Ohm, F 75 Ohm, N 75 Ohm, SMB 75 Ohm, SMC 75 Ohm, TNC 75 Ohm and Mini SMB 75 Ohm.



Available coax types coaxial RF cable assemblies include: RG141/U, RG142/U, RG174/U, RG178/U, RG179/U, RG180/U, RG187/U, RG196/U, RG213/U, RG214/U, RG216/U, RG217/U, RG218/U, RG219/U, RG223/U, RG225/U, RG302/U, RG303/U, RG316/U, RG316-DS, RG393/U, RG400/U, RG401/U, RG402/U, RG405/U, RG55/U, RG58/U, RG58-P, RG59/U, RG59-P, RG62/U, RG6/U, RG6-CATV, RG71/U, RG8/U.




Material Shell Brass, gold/nickel plated
male center contact Brass,gold plated
female center contacts Gold plated, beryllium copper
Insulators PTFE
Gaskets Silicone Rubber
Crimp Ferrules Copper Alloy,Nickel Plated
Electrical Characteristic impedance 50Ω, 75ohm
Frequency range DC-4GHz
Dielectric withstand voltage 1500V RMS at sea level
Insulation resistance ≥ 5000MΩ
Contact resistance Center contact ≤ 1.5MΩ
Outer contact ≤ 1.0MΩ
Durability Mating Cycles ≥ 500
Operating Temperature -55 to +155 Deg C



Packaging & Shipping

Packaging Details: 50 Ohm female SMA to male MCX coaxial cable assembly rg174u cable type with connector rf pigtail cable will be packed in one small bag and then put in one box.If you need custom package,  we will do as your requirest.



Delivery Detail: About 7 workdays after payments.
