----------------------Specifications-----------------------
*Power supply: DC 7.5V;
*RF power:≤1W;
*Receiving current: less than 25mA;
*Transmitting current: less than 350mA;
*Sleep current: less than 20uA;
*Transmission distance:
3Km (BER=10-3at9600bps)
4Km (BER=10-3at1200bps)
* Size: 53mmx38mmx10mm (without antenna port ).
-----------------------Products Main Features-----------------------
* Carrier frequency: 315M, 433M, 450M, 670M, 868M, 915MHz or ISM others.
* Provide rich interface: standard: RS-232/TTL/RAS-485;
* Interface format: 8N1/8E1 user-defined, or customization for other format interface;
* 8 channels, expandable for 16/32 channels according to requirements of customers;
* Baud rate: 1200/2400/4800/9600/19200/38400bps;
* Integration of receiving and transmitting and half duplex;
*Transparent data interface, suitable for any standard or non-standard user protocols;
*Auto filtration of false data produced in the air, and able to transmit long data frames;
*Good reliability for long-time use, low failure rate, and suitable for both indoor and outdoor use
* Low power consumption and sleep function;
* Operation Temperature:-20~+65Celsius(customized batch order for industrial level);
Temperature Range. -40 to 80 C (-40 to 176 F).
* Impedance:50&Omega(SMA antenna port, multiple antenna options available);
* Complying with EN 300220 and ARIB STD-T67;

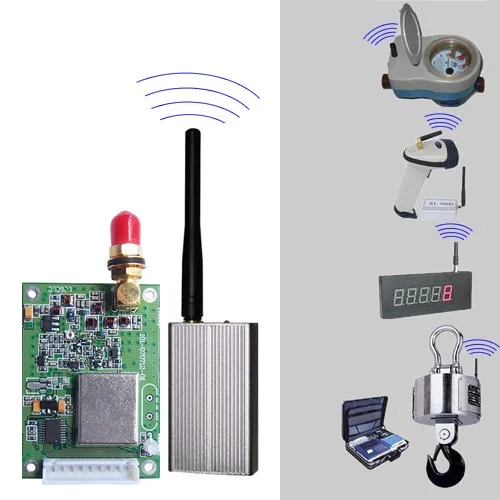

---------------Applications areas:
* Automatic meter reading (AMR) and home automation;
* Supervisory control and data acquisition (SCADA);
* Remote control,industry data collection;
* Monitoring of remote systems
* Production reporting of active systems
* Wireless remote control alarm, Wireless sensor;
* Sports training & competition;
* Wireless POS, PAD, wireless smart terminal;
* Electronic bus station and intelligent traffic;
* Wireless electronic display screen and queuing machine;
